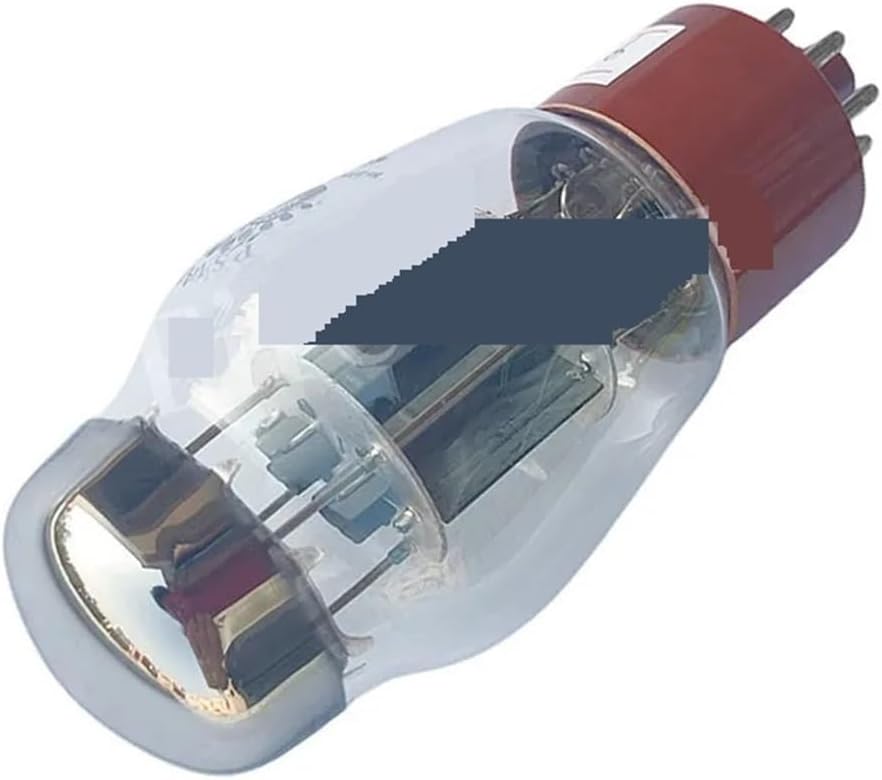

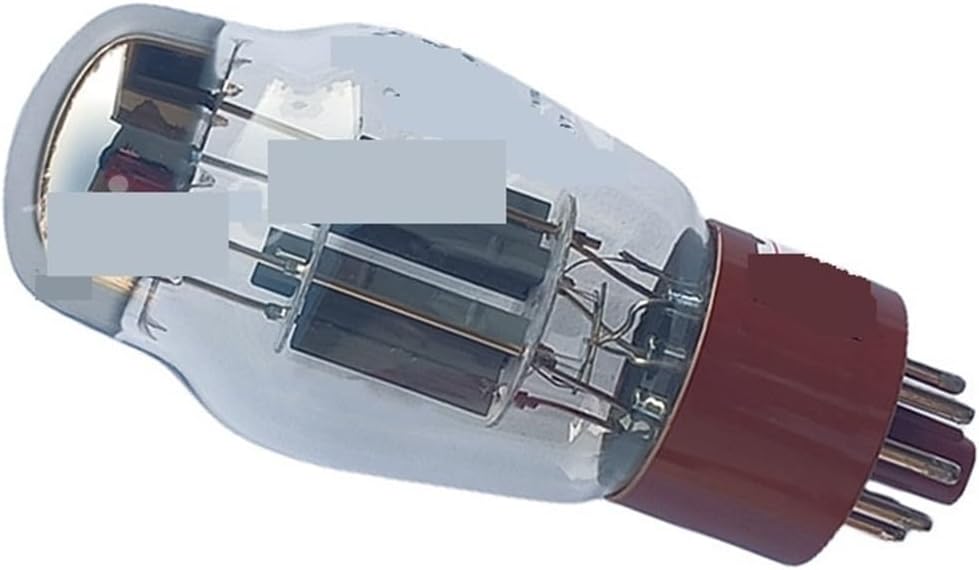

Vacuum Tube Rectifier 6SN7 Vacuum Tube Replaces 6N8P 6H8C CV181 6SN7GT HiFi Audio Valve Electronic Tube Amplifier Kit DIY(2pcs Matched Pair)
Vacuum Tube Rectifier 6SN7 Vacuum Tube Replaces 6N8P 6H8C CV181 6SN7GT HiFi Audio Valve Electronic Tube Amplifier Kit DIY(2pcs Matched Pair)
Preamps
The has good linearity low noise and good reliability
The tube is designed for service as power rectifiers in AC operated receivers which require high currents.
The service life longer and the failure rate greatly reduced.
The special with signal and has low noises output.
Dur
The has good linearity low noise and good reliability
The tube is designed for service as power rectifiers in AC operated receivers which require high currents.
The service life longer and the failure rate greatly reduced.
The special with signal and has low noises output.
Dur
Quantity
-
Detail
Preamps
UH6.3 V
IH0.6 A
Static parameters
Ua90 250 V
Ug0 -8V
Ia10 9 mA
Gm3 2.6 mA/V
Ri6.7 7.7 k
20 20
Ia When Ug=-12.5V_ 1.3mA
Ug when Ia=- 10uA - 7 - 18V
Limit rating
Class A1 magnification (each side)
Ua450V
Ik-20mA
Pa- 5w
Pa(No.1+No2) 7w
Rg-1M
Uhk ±100V
==========
Hign-concerned Chemical : None
Channels : 2 (2.0)
Model Number : 6SN7
Maximum Power Per Channel : NO POWER
Origin : Mainland China -
