Hand Tool Aluminum Alloy Hand Oil Pump, Manual Oil Pump, Oil Suction Machine, Oil Drum Pump, Refueling Pump, Not Easy to Get Stuck

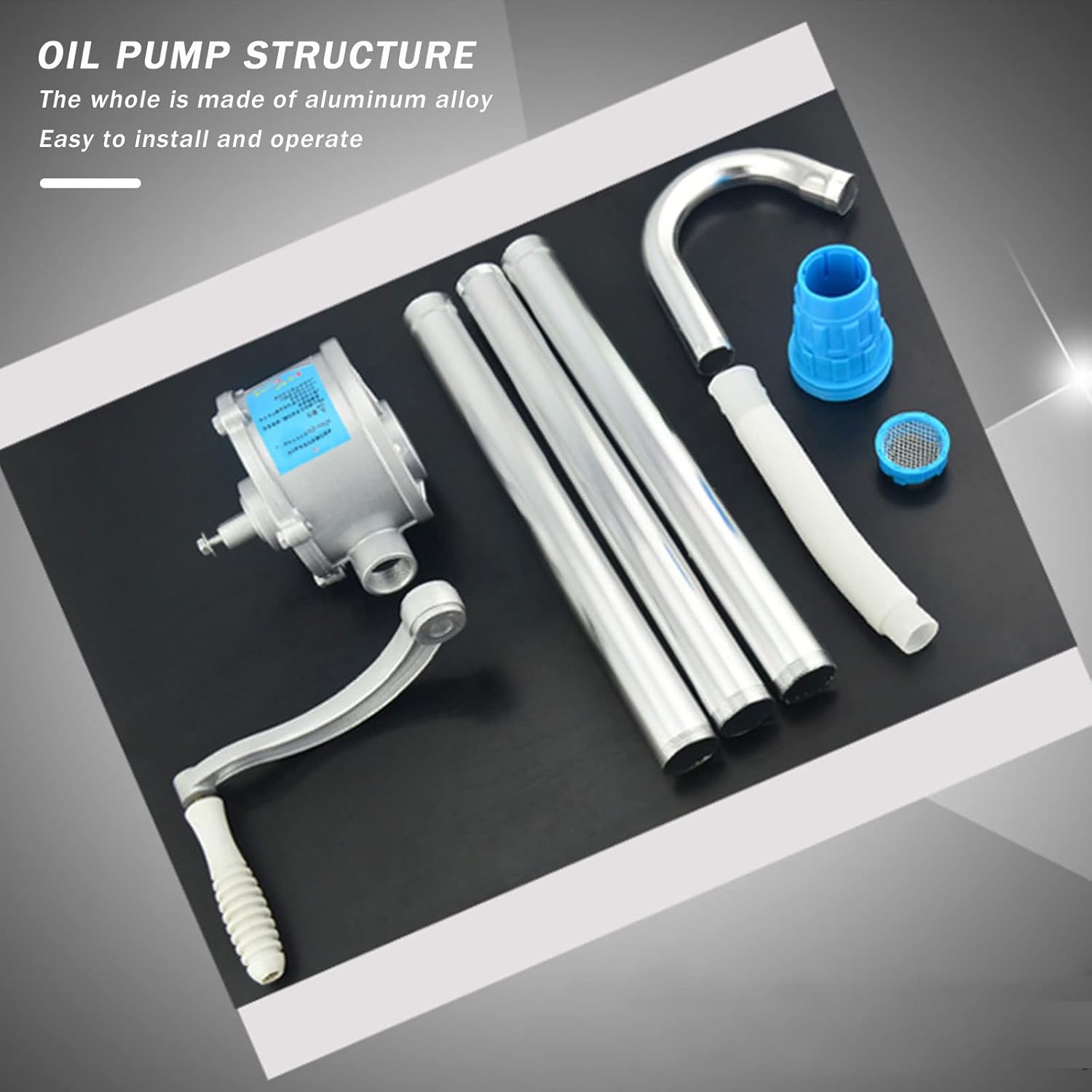

[Structural features of oil pump] The whole is made of aluminum alloy material, which is easy to install and operate.
[Overall Features] Simple appearance and simple , long-lasting and long service life, good oil sealing performance.

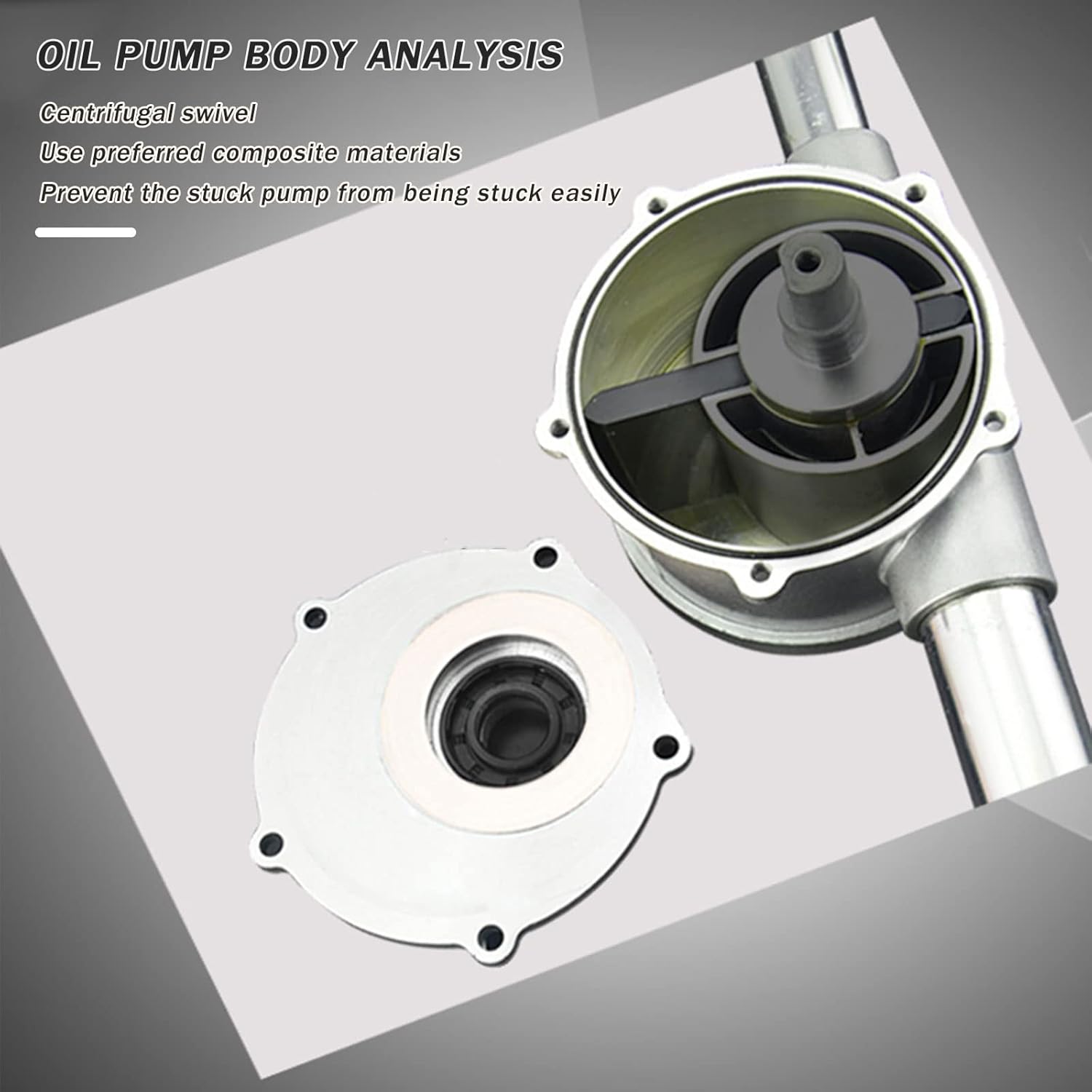

[Analysis of the oil pump body] The centrifugal swivel adopt
Quantity
ADD TO CART
BUY IT NOW
  • Detail

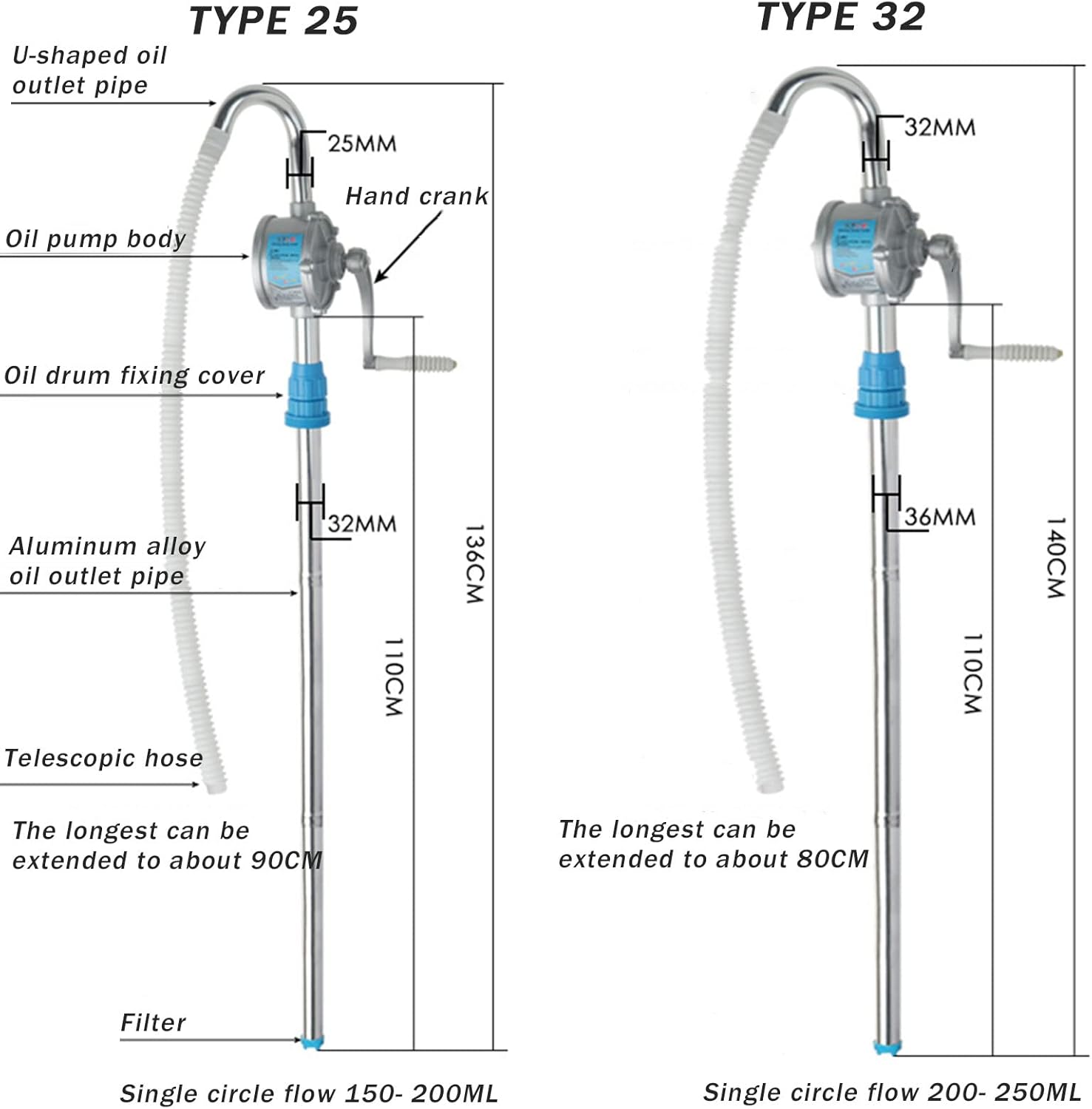

    1. Put the main pump shaft up and place it on a level
    2. Install the hand crank on the main pump hole, cover it with a set screw, and tighten the washer

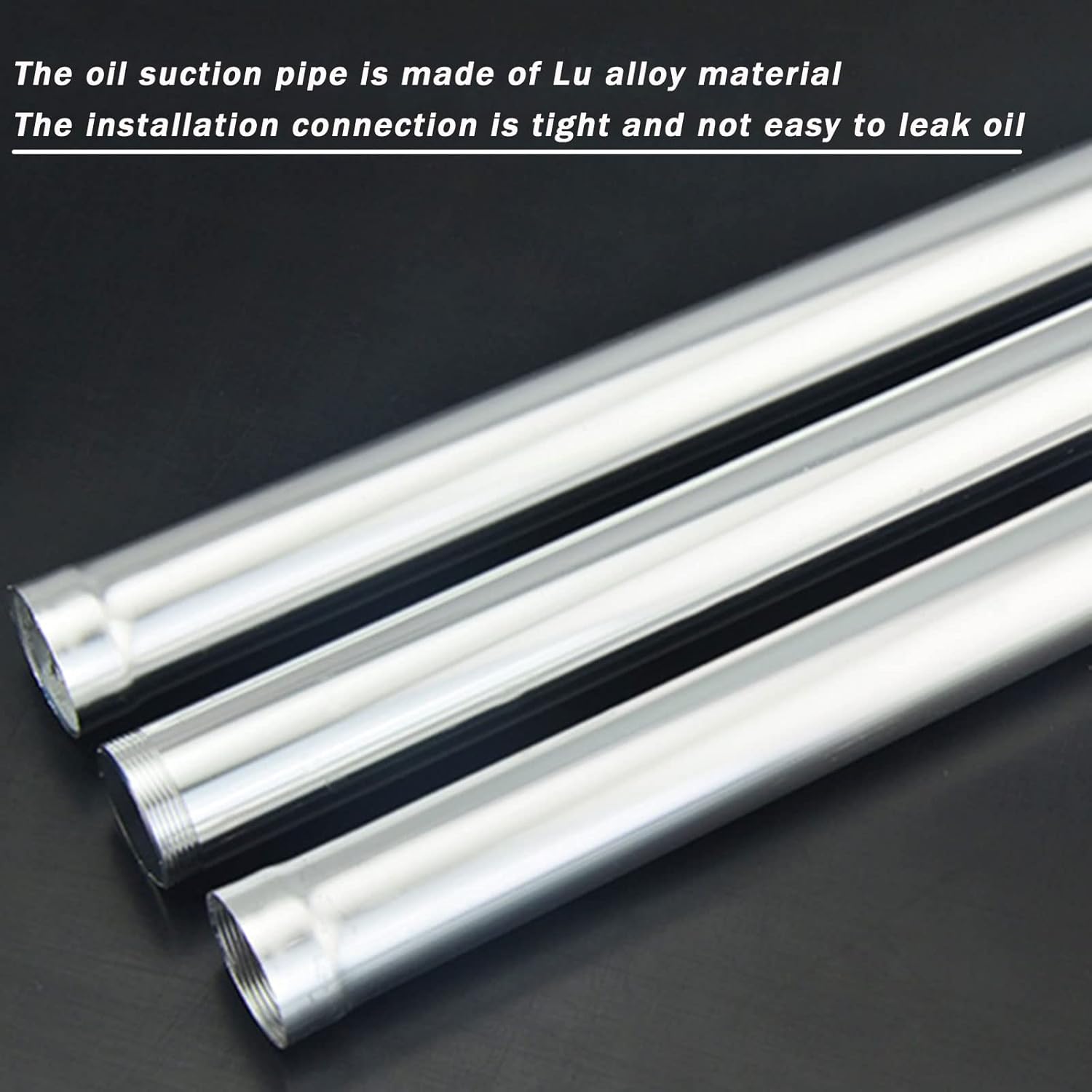

    3. Install the fixed cover of the oil drum on the straw A and then the straw A-→the straw A-→the straw B

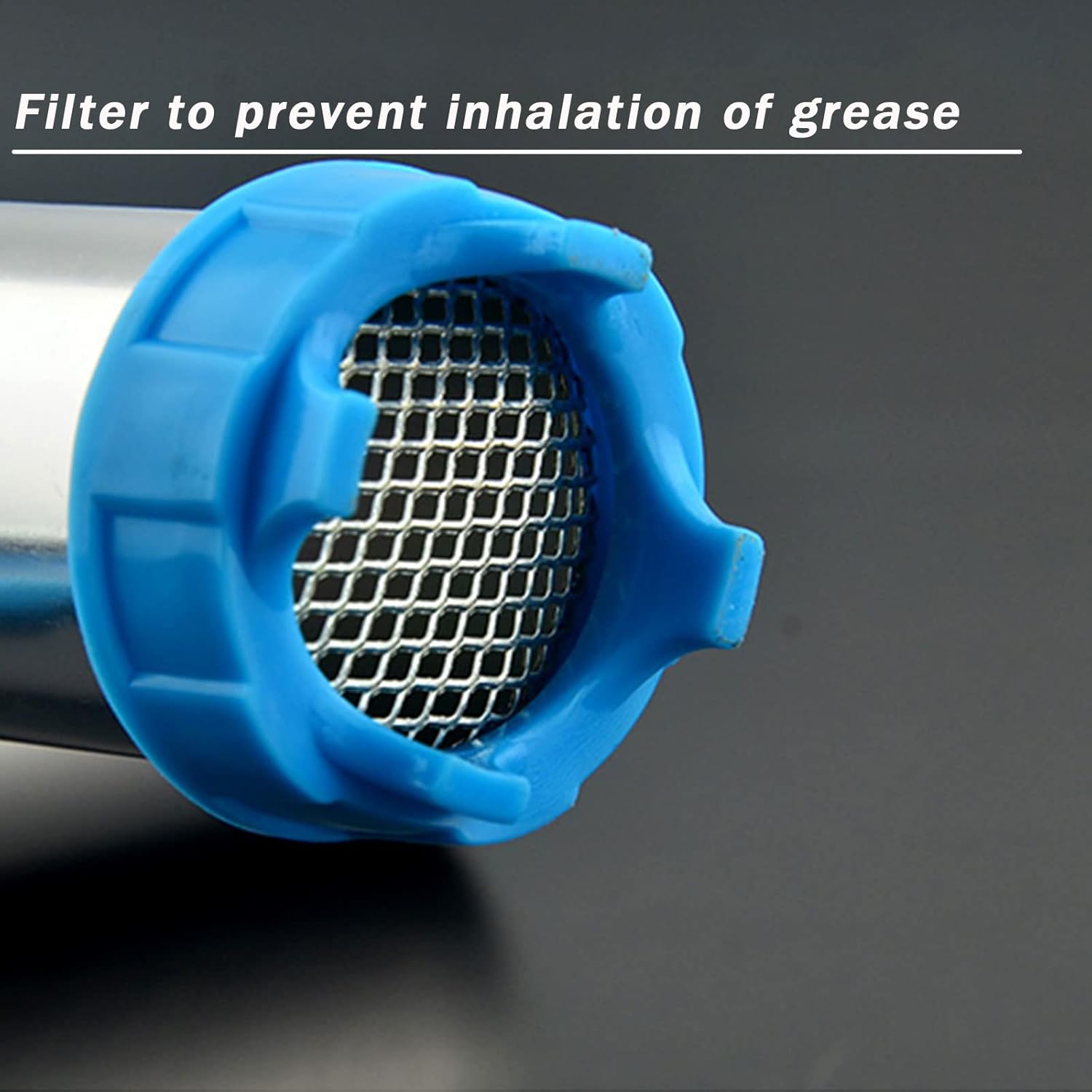

    4. Put the filter on the bottom of straw B
    5. Install the lower part of the threaded hole on the main pump and connect it tightly to the
    6. Install the U-shaped oil outlet pipe on the other end of the main pump and then install the telescopic hose on the U-shaped pipe

    Type: screw pump
    Model: 25-32mm
    Material: aluminum alloy
    Drive mode: manual
    Performance: wear-resistant
    Application: Industrial grade
    Delivery medium: oil pump
    Pump shaft position: side vertical
    Number of impellers: single stage
    Suction diameter: 32-36 (mm)
    Discharge diameter: 150-250 (mm)
