AMP-925L 10 Channels UHF Wireless Antenna Distribution System,8 Outputs +2 Cascade Ports,Wireless Microphone Antenna Amplifier/Signal Amplifier,Active Directional Antenna Paddle

PALPEAL AMP-925L Antenna Distribution System can expand the signals of the wireless microphone system by splitting one pair of the antennas to

wireless receiver.and enable wireless microphone signals up to 2,200 feet,It also amplifies RF signals to compensate for insertion loss

that results from splitting signal power to multiple outputs.And can supply the power port to the UHF wireless system.

1. It covers UHF 400-970MHz frequency band

2. Compatible with Shure Sennheiser AKG ... Brand UHF wireless microphone

3. It supports 5 units 2-antenna wireless microphone receiver or 2 units 4-antenna wireless microphone receiver and 1 units 2-antenna microphone

receiver.

4. Use the cascade method to cascade up to 8 antenna splitters for More wireless microphone systems

5.Cascade port can be used to connect another Shure UA844 UA845 UA840 and PAS-225,AMP-16CH for multiset operation

ACTIVE DIRECTIONAL ANTENNA:

Antenna type: log periodic dipole oscillator array

RF frequency range: 400-970MHz

Power supply: 9-15V,150mA

Connecting terminal: BNC Port Coaxial Cable

Impedance: 50 Ω

Head type: BNC

Antenna gain: 7.5dBi

ANTENNA DISTRIBUTION SYSTEM:

Carrier frequency range: 400-970MHz

Type of input/output antenna connector: BNC

Impedance: 50 Ω

Channel：10 channelsoutput

Output external power supply: DC 12V 800mA

Input power: AC100-260V

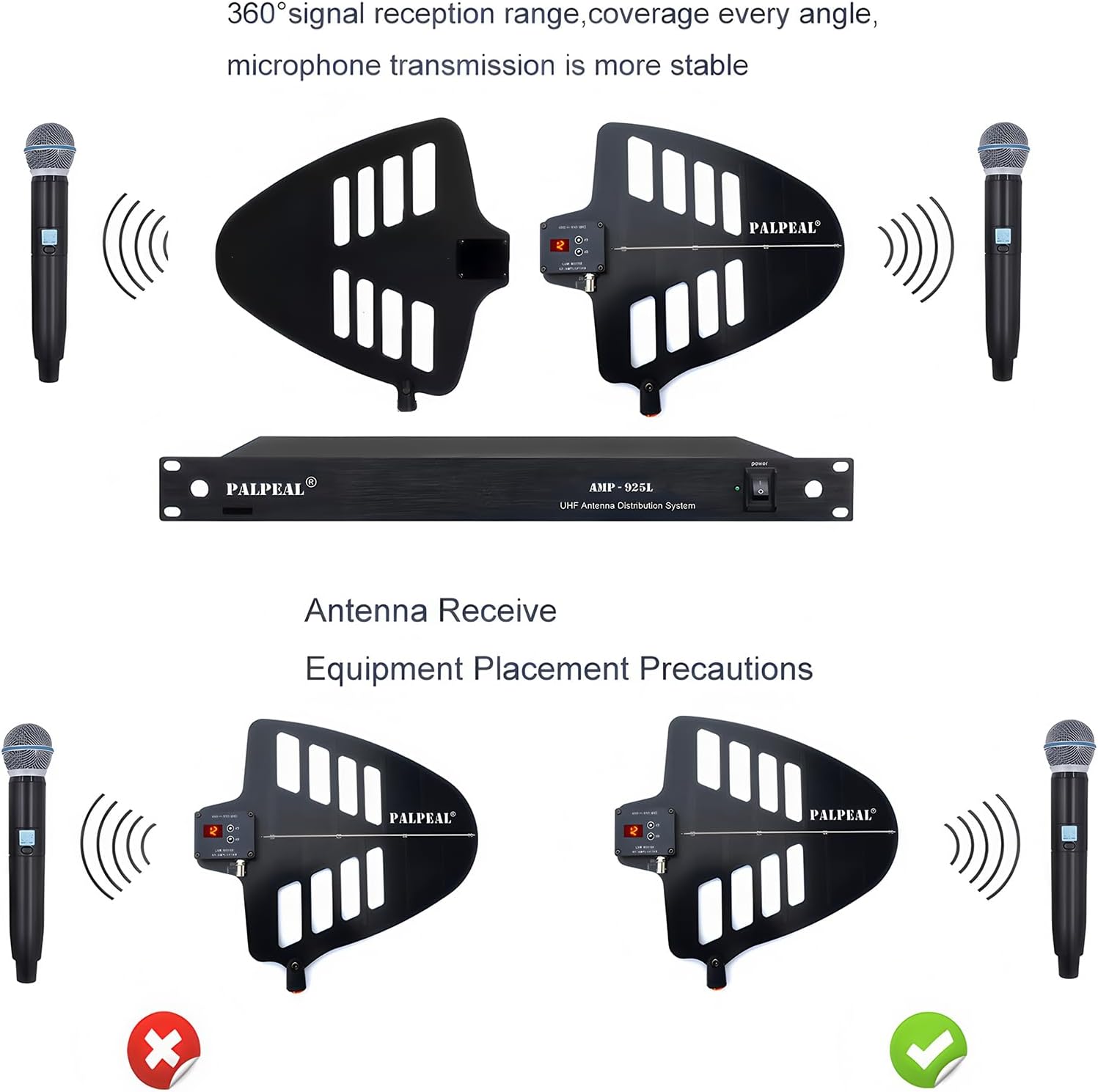

Antenna paddle wind-resistant design withstands strong winds without being blown down. The antenna can be mounted on various microphone stands,The antenna can be easily fixed and covered,Perfect match the complicated performance situations.

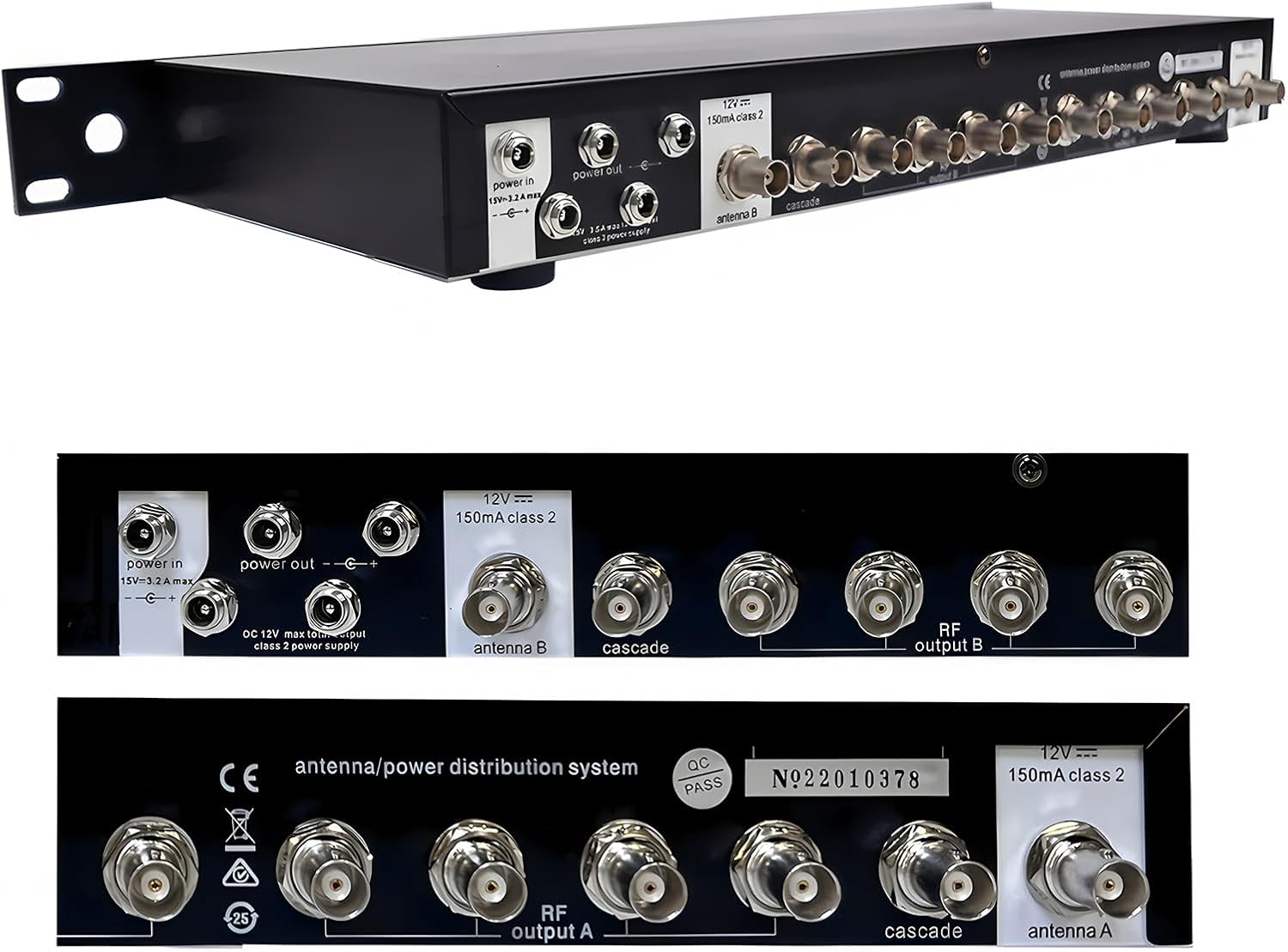

PALPEAL AMP-925L Antenna Distribution System (8 output port + 2 cascade port)

1. Support 10 units 1-antenna wireless microphone receiver.

2. Support 5 units 2-antenna wireless microphone receiver.

3. Support 2 units 4-antenna wireless microphone receiver and 1 units 2-antenna wireless microphone receiver

Use the cascade method to cascade up to 8 antenna splitters for More wireless microphone systems,

If you want to add antenna splitter，You can buy extra in this store.

AMP-925l antenna splitter can be connected in series with AMP-16CH antenna splitter (16 channel )

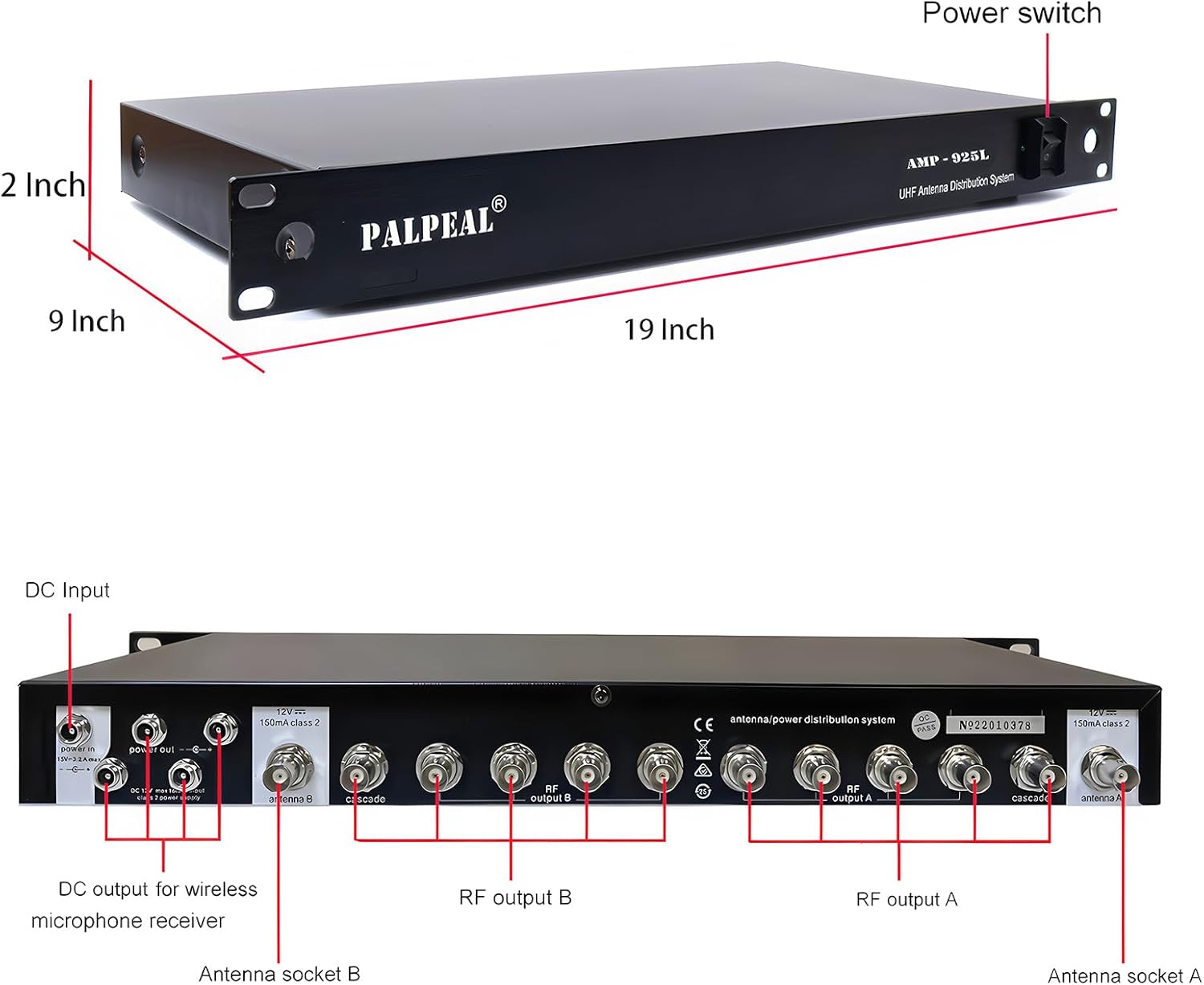

PALPEAL AMP - 925L 10 Channel Antenna Distribution System for UHF Wireless Microphone System

Product Features :

Technical parameters:

Antenna paddle:

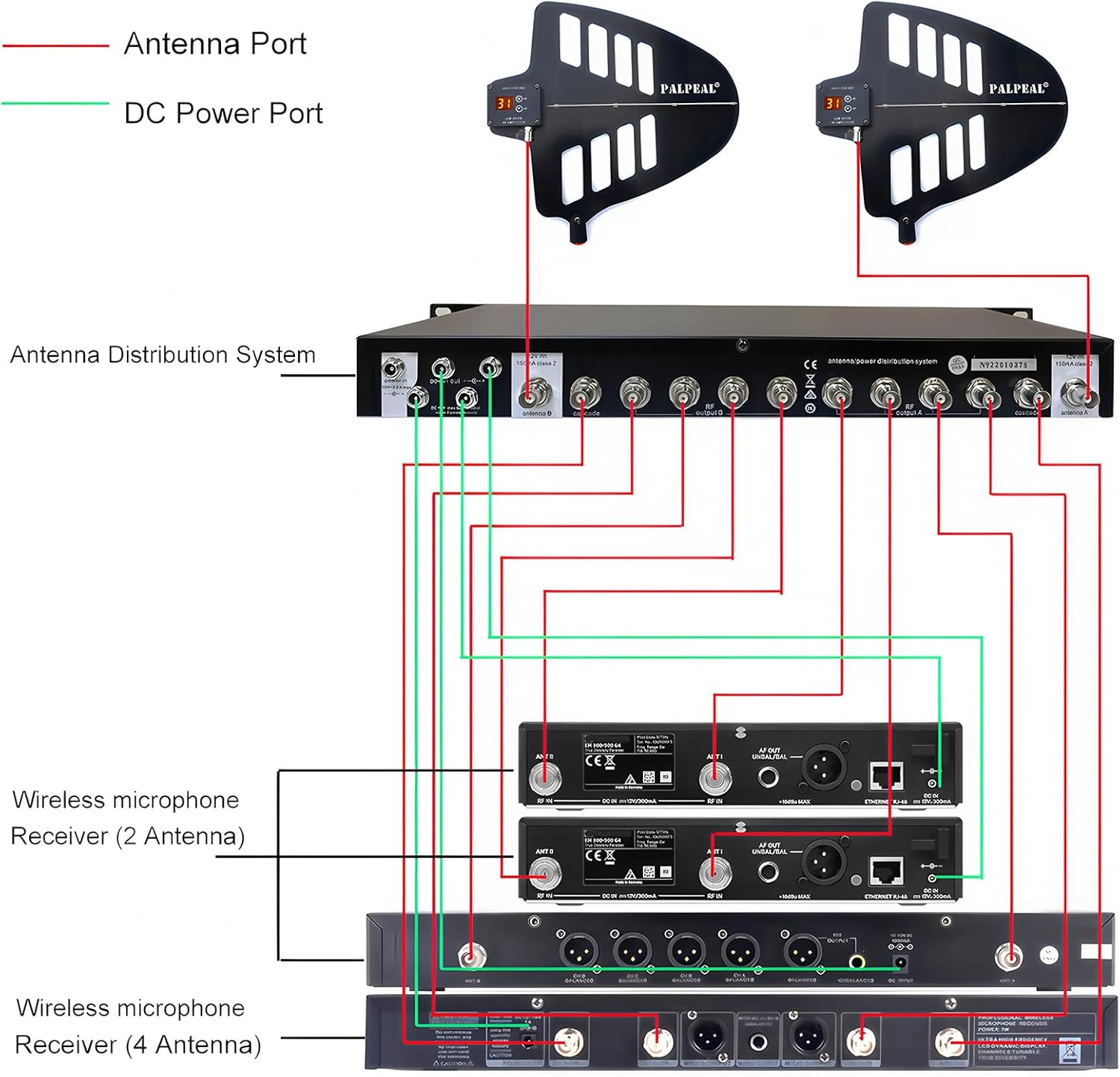

PALPEAL AMP-925L Antenna Distribution System Connection Method:

Multi Antenna Distribution System Connect Method:
