DC5V-24V 24A 30A 32A LED RGBCCT/RGBW/RGB Amplifier for Strip Power Repeater Light Controller(RGBW 32A)
Industrial Power Supply
-
Detail
controller
Industrial Power Supply
LED RGBCCT/RGBW/RGB amplifier DC5V-24V 15A 24A 30A 32A suitable for LED strip power relay light controller
describe

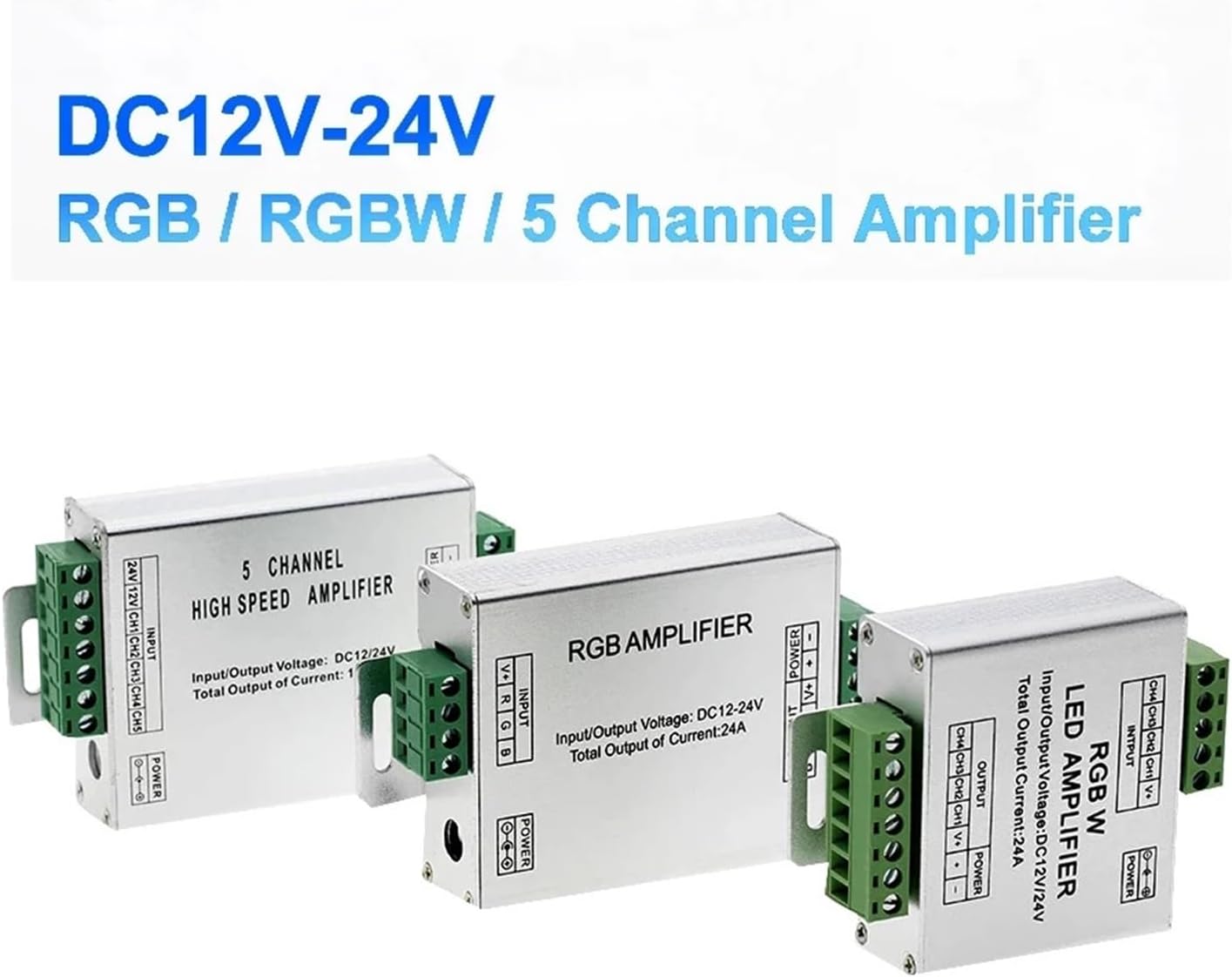

DC12-24V 24A RGB amplifier
Input/output voltage: DC12-24V
Dimensions: 105×65×25mm
Connection method: common anode
maximum. Output current: 8A per color
Long service life >50 000 hours
DC12/24V 24A RGBW amplifier
Input voltage: 12V/24V
Output: 4 channels
Connection method: common anode
Product size: L81×W64×H24mm
Packing size: L115×W70×H35mm
Net weight: 90 grams
Gross weight: 110 grams
<;;1W
<;;6A/channel
<;;576W

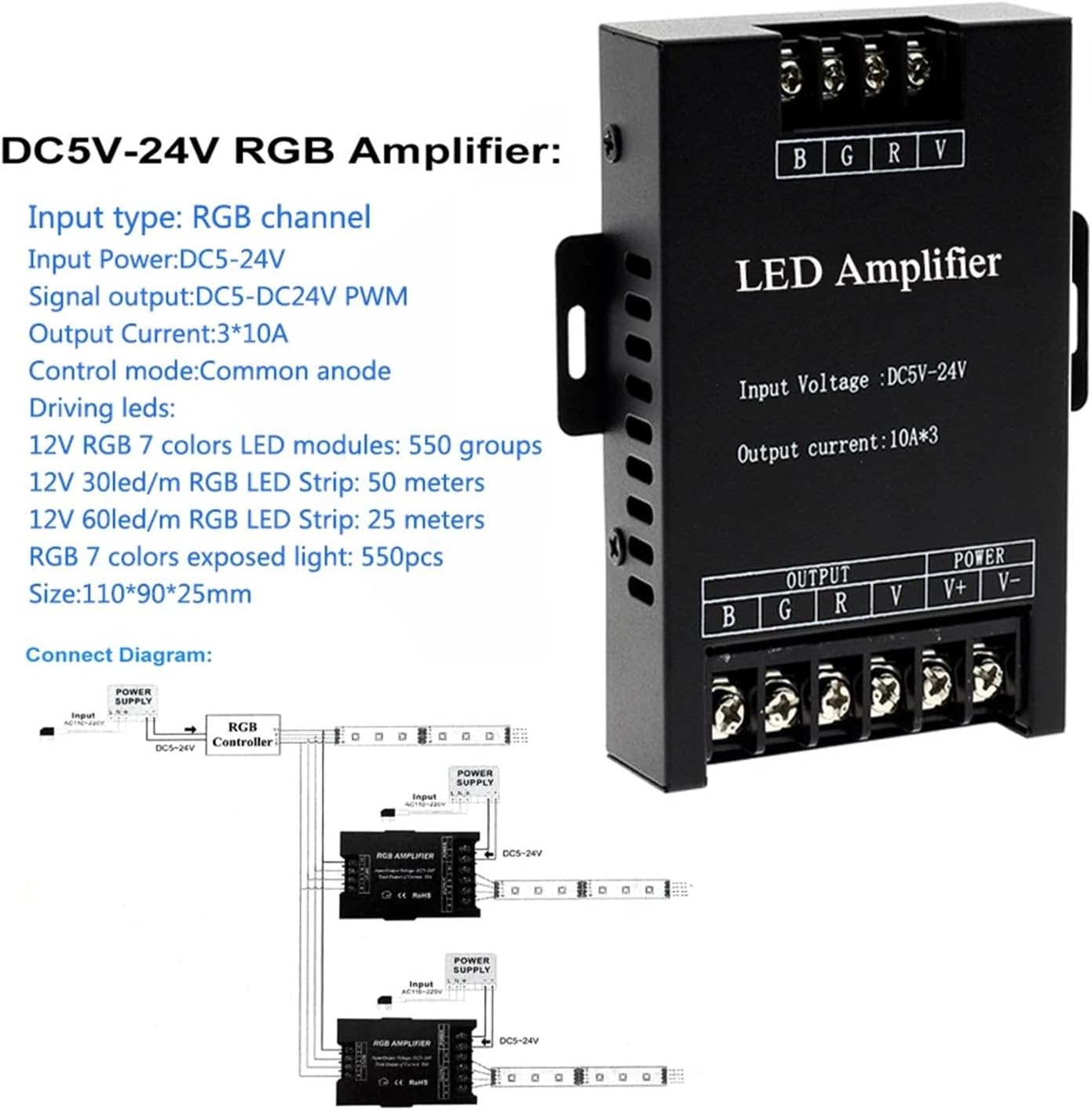

DC5V-24V 30A RGB amplifier
DC5V-24V RGB amplifier
Input type: RGB channel
Input power: DC5V-24V
Signal output: DC5-24V PWM
Output current: 3*10A
Control method: common anode
Driving light: 12V RGB 7-color LED module: 550 sets
12V RGB 7-color LED module: 550 sets
12V 30led/m RGB LED strip: 50 meters
12V 60led/m RGB LED light strip: 25 meters
RGB 7-color exposure lamp: 550 pcs
Size: 110*90*25mm

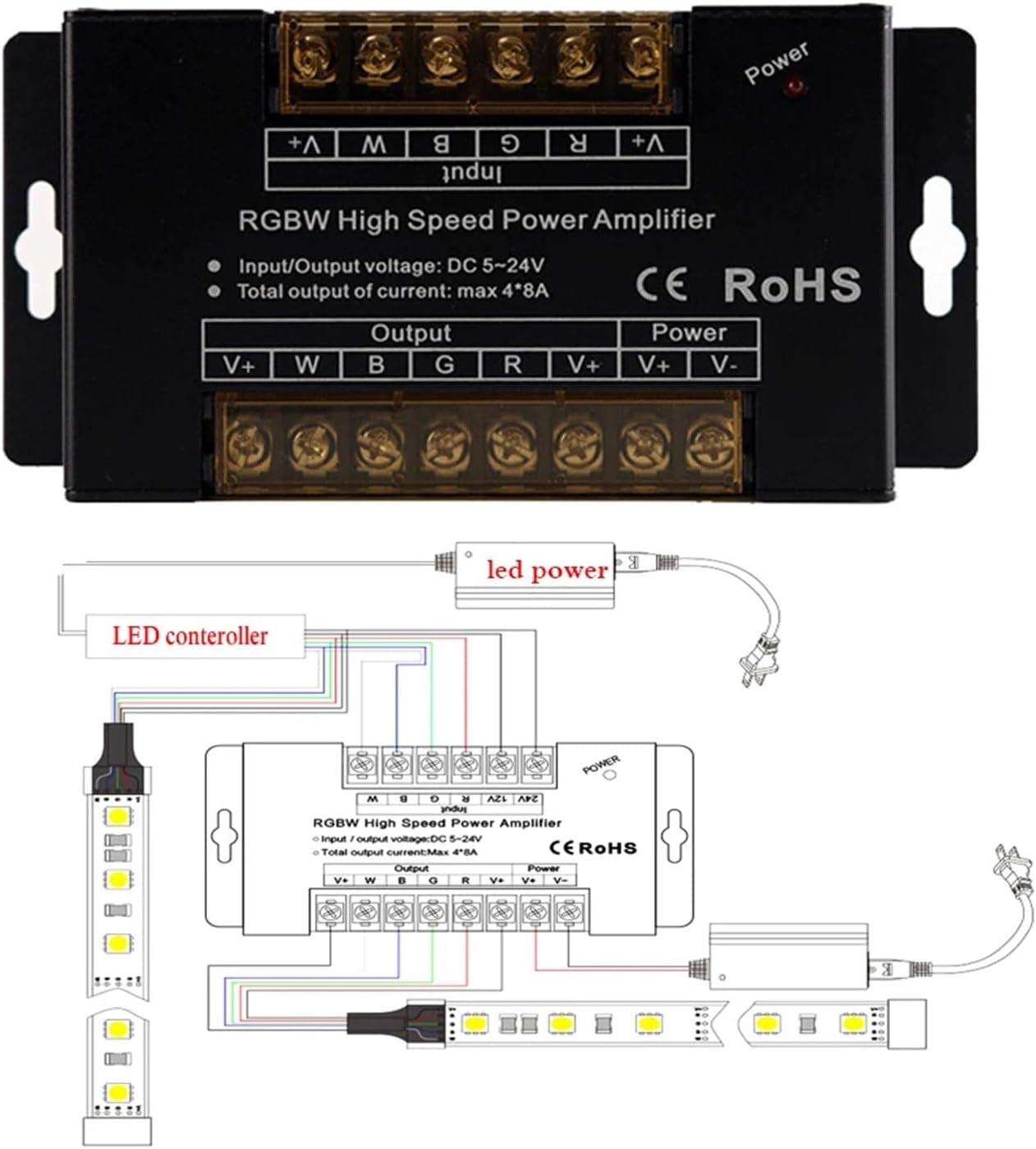

DC5V-24V 32A RGBW power amplifier
Input type: RGBW channel
Working temperature: -20-60C
High speed: 1 Mbit/s
Power supply voltage: DC5-24V
Maximum load current: 32A (Max)
Size: 147*75*20mm

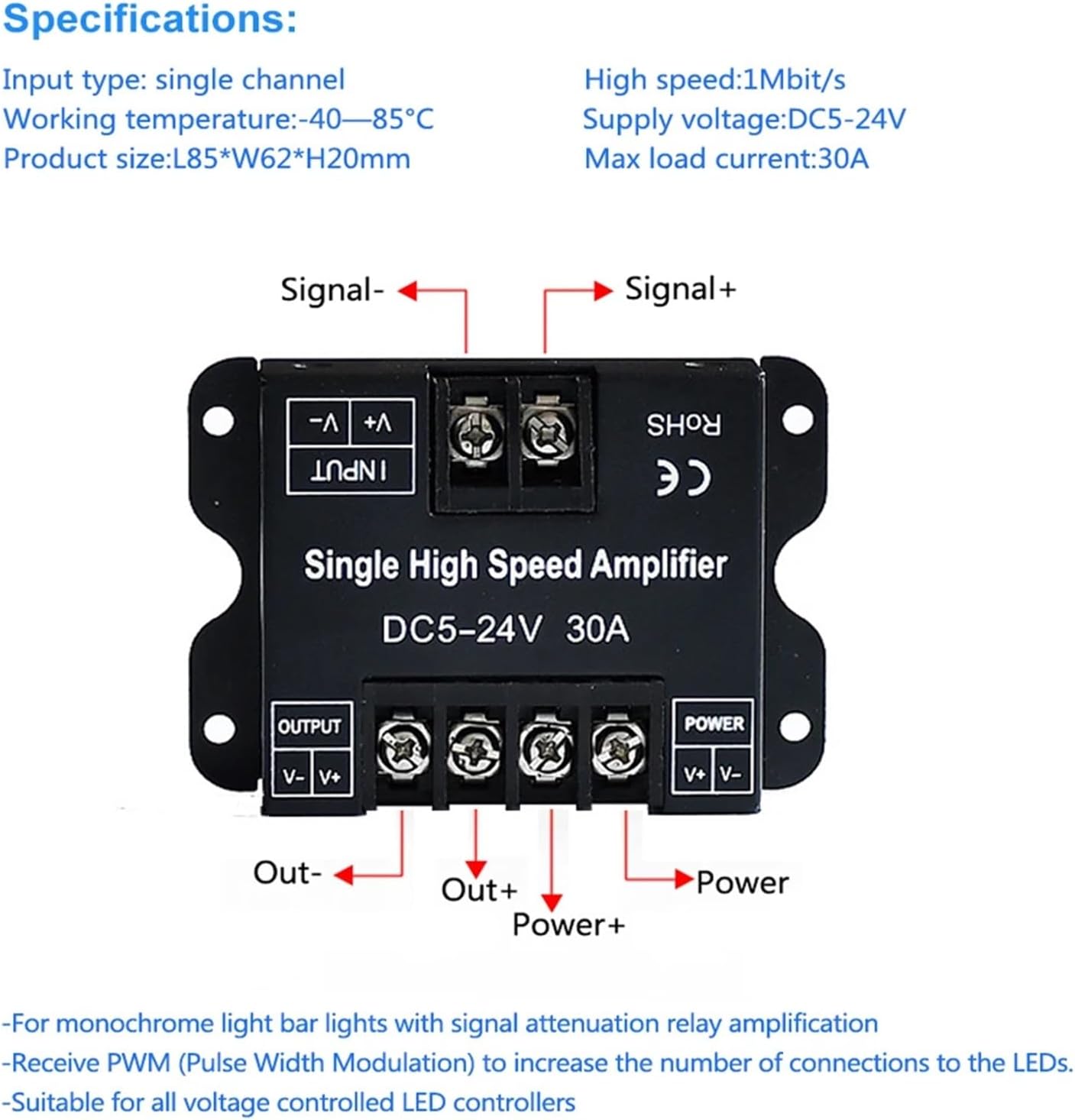

30A LED strip amplifier DC5-24V single-channel high-speed amplifier
Suitable for single color LED light strip power repeater console controller.
Specification:
1. High speed: 1Mbit/s
2. Working temperature: -40-85℃
3. Power supply voltage: DC 5-24V
4. Maximum load current: 30A
5. Product size: L85*W61*H20mm -
