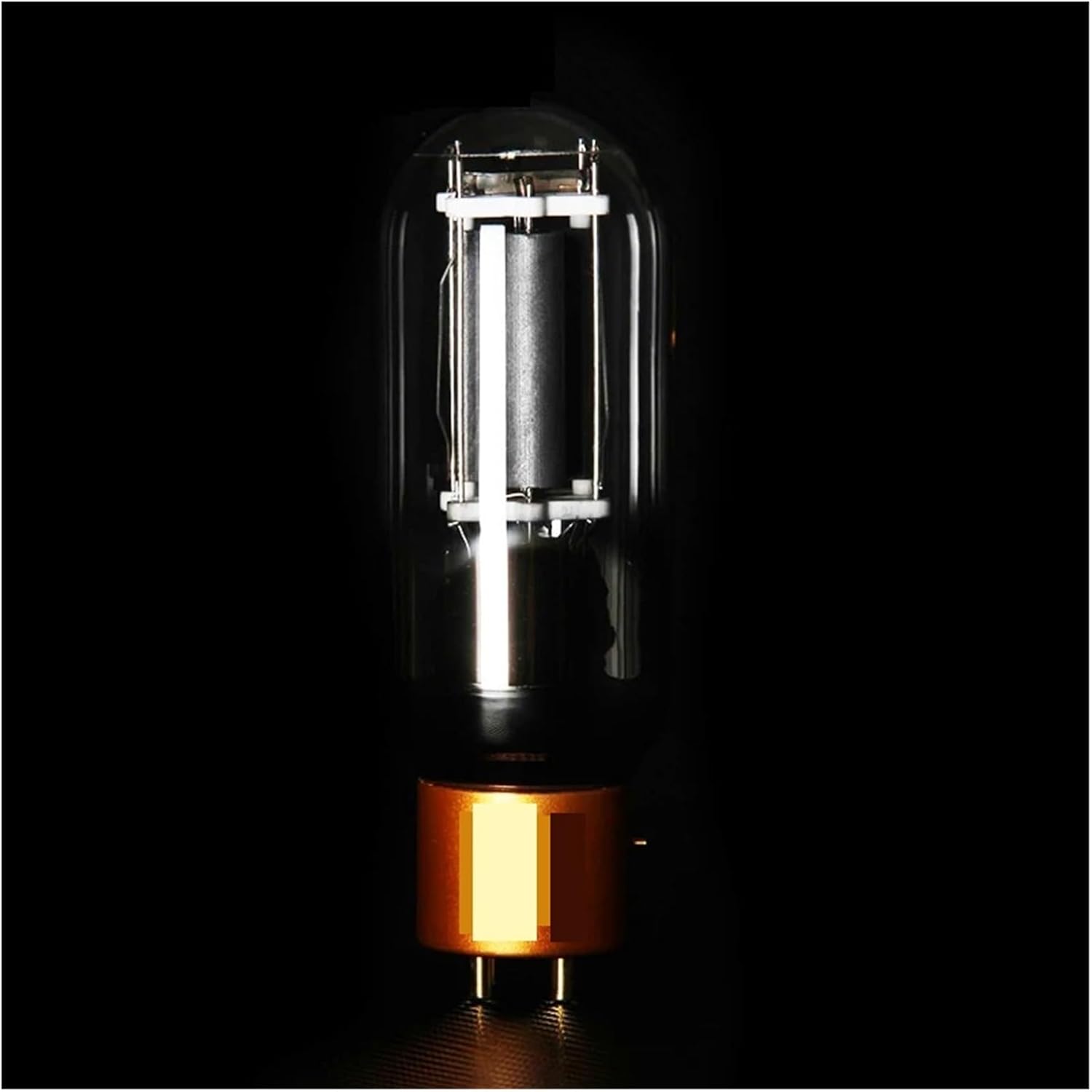

Vacuum Tube Rectifier 845-TII Electronic Tube Replacement 845 Vacuum Tube Factory Precise Matching for Amplifier(2 Pcs)

vacuum tube
845-TII is direct-heated type thorium tungsten cathode triode class A1 and AB1
Heater
Uf---------------------------------------10 V
If----------------------------------------3.25 A
Maximum Rating
Ua----------------------------------1250 V
Pa-------------------------------75 W
Pout(max.sig)--------------------------150 W
Ia(max)------------------------------120 mA;
Direct Interelectrode Capacitances
input----------------------------------6 PF
output----------------------------------4.5 PF
grid to plate----------------------------------14.5 PF

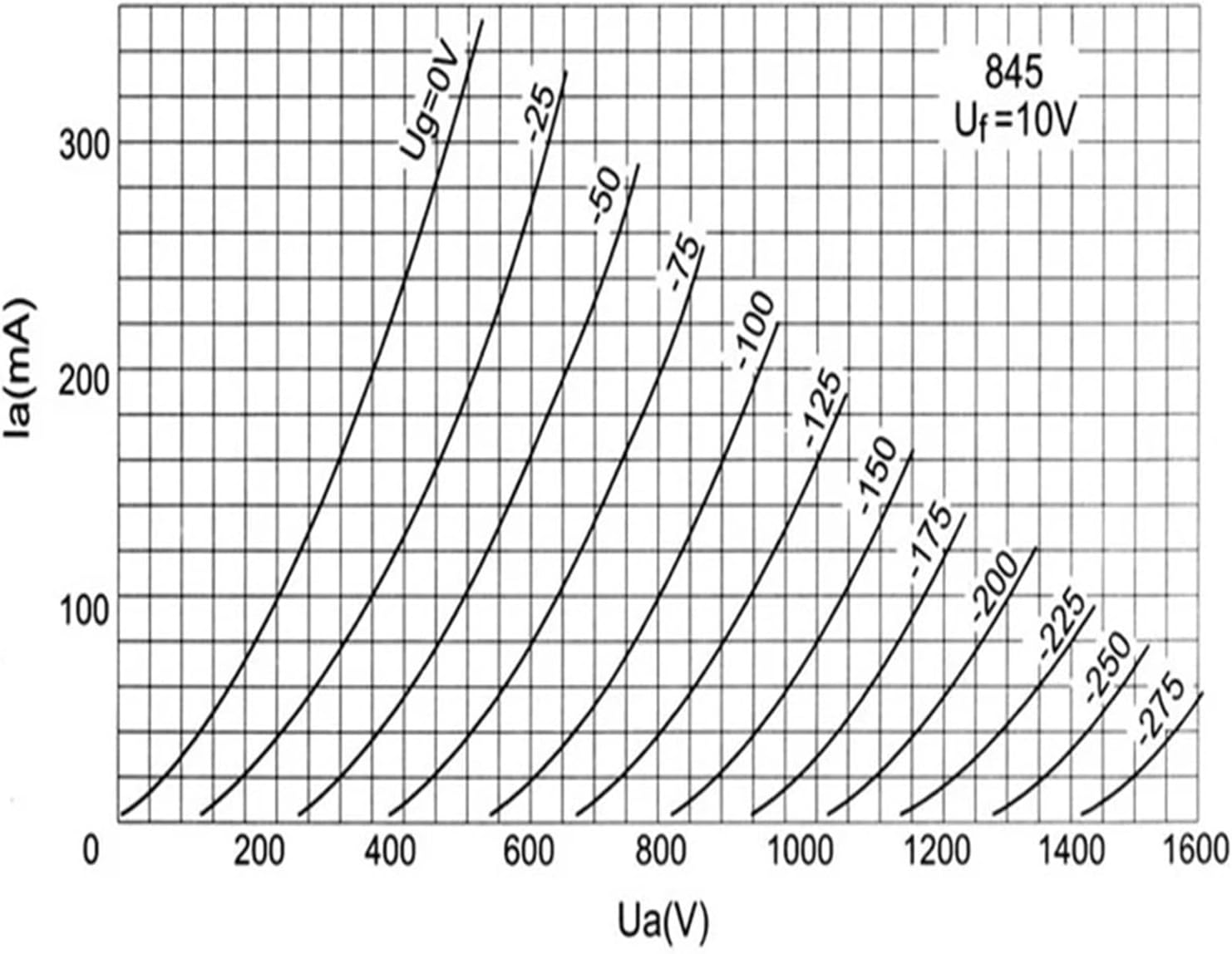

Static parameter
Ua--------------------------------------1250 V
-Ug-------------------------------------200 V
Ia---------------------------------------80 mA
Gm--------------------------------------3 mA/V
ri----------------------------------------1.7 K
u----------------------------------------5
RL---------------------------------------3.4 K
Ug(pk)------------------------------------69 V
Pout-------------------------------------15 W
Recommended Operating Conditions(reference value
class A1 .single tube:
Ua-----1000 1000 1250 V
-Ug--- 145 155 209 V
RL-----6 9 16 K
Ia------90 65 52 mA
Gm-----3.1 - - mA/V
Ug(pk)--- 110 148 V
ri------1.7 1.9 2.1 K
Pout----24 21 24 W
Push-pull.class AB1:
Ua------------------ 800 1000 1000 1250 V
-Ug---------------- 125 170 175 225 V
RL------------------ 4.5 4.6 4.6 6.6 K
Ia--------------------80 70 40 40 mA
Ug(pk)----------------177 240 - - V
Ia(mAx.sig)---------170 230 230 240 mA
Pout----------------40 75 75 115 W
==========
Hign-concerned Chemical : None
Model Number :845-TII
Maximum Power Per Channel : NO POWER
Origin : Mainland China
