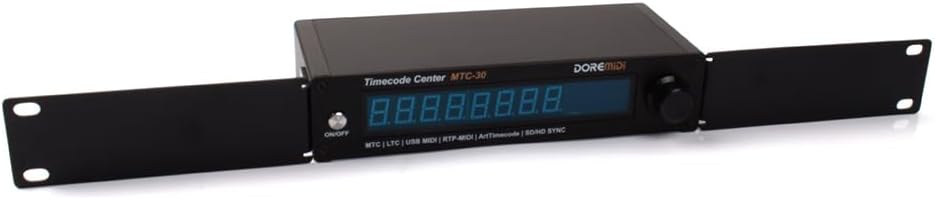

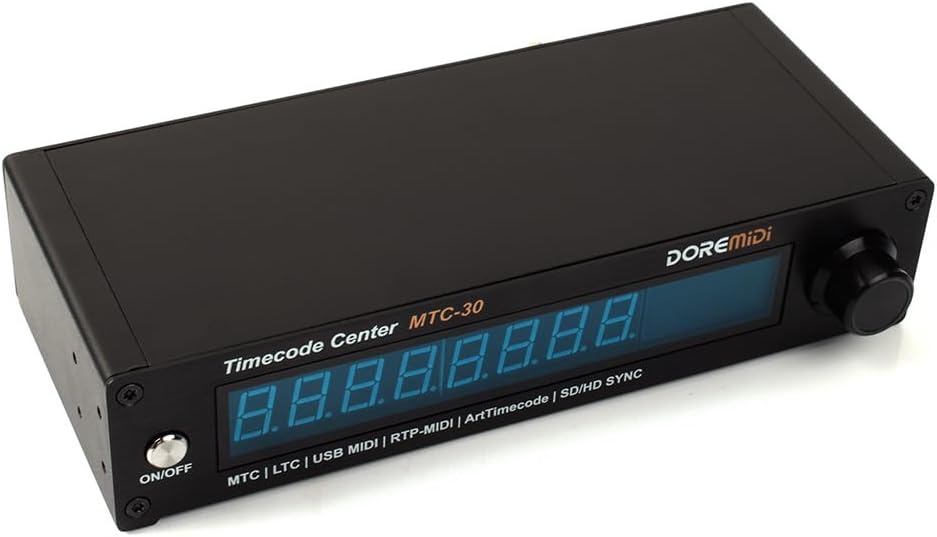

Timecode Center MTC-30 Supports Timecode Reader Generator Converter SMPTE LTC ArtTimeCode RTP-MIDI MMC PoE(MTC-30)
Timecode Center MTC-30 Supports Timecode Reader Generator Converter SMPTE LTC ArtTimeCode RTP-MIDI MMC PoE(MTC-30)
1.MTC-30 has RTP-MIDI network time code, Art-Net time code, SMPTE LTC, MIDI time code, USB time code, SD/HD video frame synchronization,
2.MTC-30 can be used for time code synchronization between computers, MIDI devices, DMX devices, and LTC devices.
3.MTC-30 supports time code generation, tim
2.MTC-30 can be used for time code synchronization between computers, MIDI devices, DMX devices, and LTC devices.
3.MTC-30 supports time code generation, tim
Quantity
-

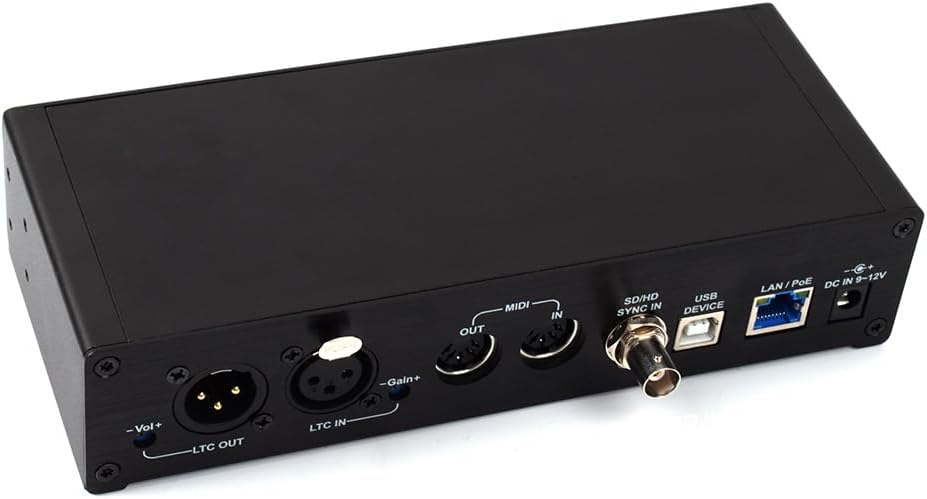

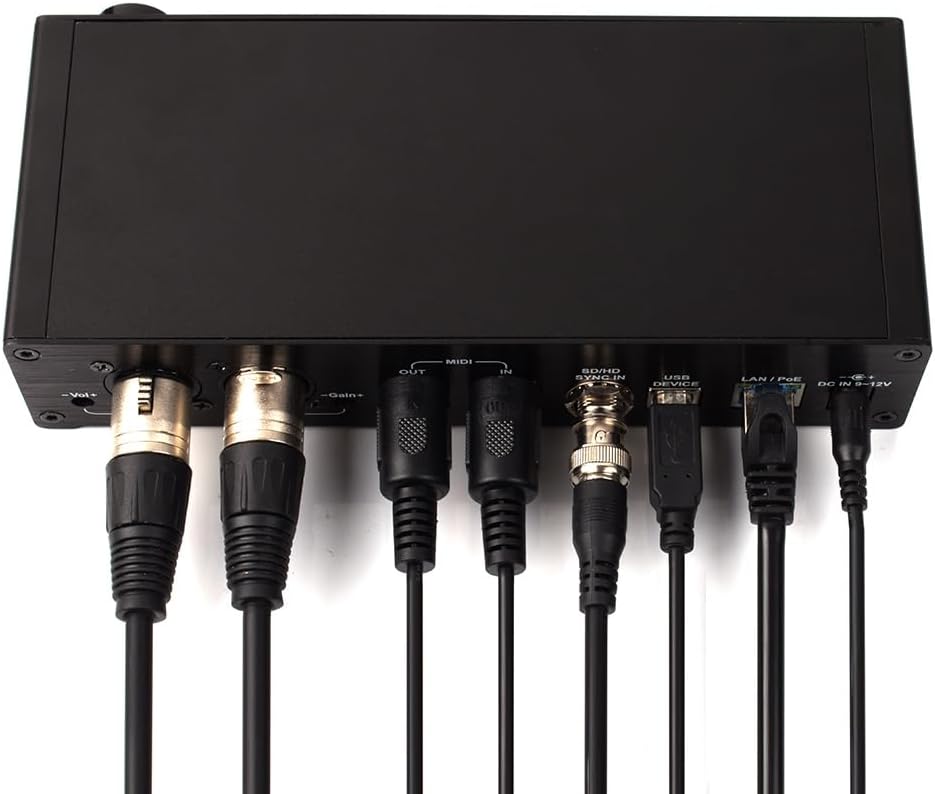

DetailModelMTC-30Dimensions (L x W x H)205*120*45mmWeight550gOperating VoltageUSB-B: 5VDCDC port: 9~12VDCLAN: Refer to PoE standardOperating Current120mA@9V,95mA@12V,180mA@USB-5V.Time Frame RateSupport time code frame rates of 24, 25, 30DF, and 30 frames.LTC CompatibilityCompatible with SMPTE LTC standard audio signals.(Note: If the LTC input frame rate is 23.976FPS, it will be recognized as 24FPS, if the input framerate is 29.976FPS, it will be recognized as 30FPS.)LTC OutputImpedance = 110 ohm, Voltage range: 0.48 V ~ 1.6 VLTC InputImpedance = 10K ohm, Voltage range: 0.1 V ~2.8 VUSB Port CompatibilityCompatible with Windows, MacOS, iOS, Android and other systems, plug and play, noneed to install drivers.MIDI PortCompatibilityCompatible with all MIDI devices with five-pin MIDI standard port.MIDI CommunicationMIDI communication includes MIDI five-pin port, USB MIDI and RTP-MIDI. This productis used to communicate MIDI time code. USB MIDI also supports MMC controlinstructions, but does not support communication of other MIDI messages.EthernetSupport static IP and automatic IP acquisition (DHCP). When the product works inDHCP, the IP address is allocated by a gateway with DHCP function.Art-NetStandard Art-Net communication protocol, only used to communicate Art-Net timecode (Art time code).RTP MIDIMTC-30 supports being a listener and can be connected by an initiator (such as acomputer). It supports up to 5 initiators to connect at the same time.SD/HDSupport SD/HD video signal input, support 1080P, 720P, 480i, 576i video formats.
MTC-30 Product Parameters
-
