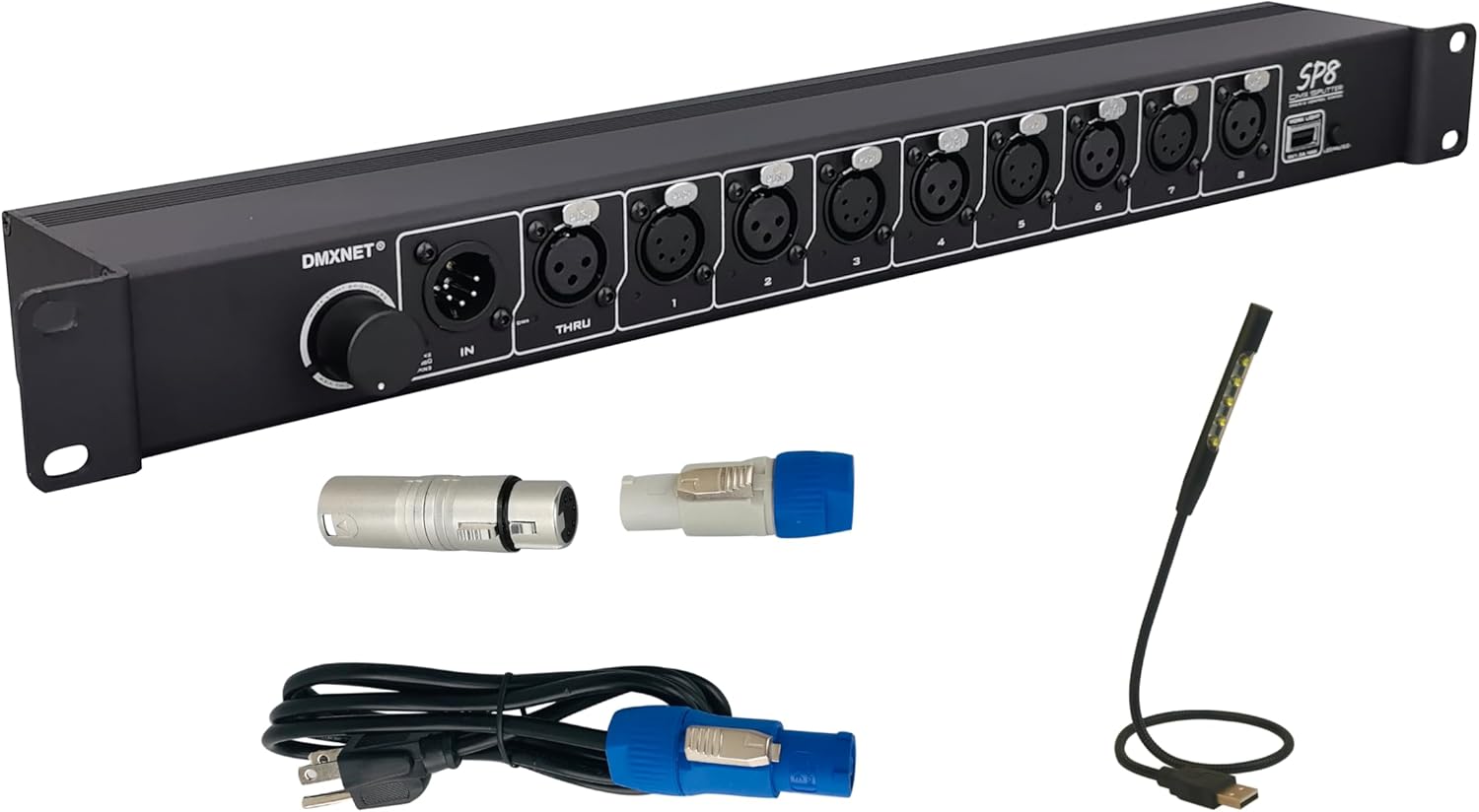

8-Port Opto-Isolated DMX Splitter/Amplifier/Isolator, LED Indicator, XLR-(3/5 PIN) USB Adjustable Work Light, DMX View Function, Bulit-in Termination,19 Inch Rack Mountable
8-Port Opto-Isolated DMX Splitter/Amplifier/Isolator, LED Indicator, XLR-(3/5 PIN) USB Adjustable Work Light, DMX View Function, Bulit-in Termination,19 Inch Rack Mountable
DMX UNIVERSAL-optical DMX splitter provides 8 outputs from a 1 input, output each port opti-isolated, up to 1500V isolated voltage

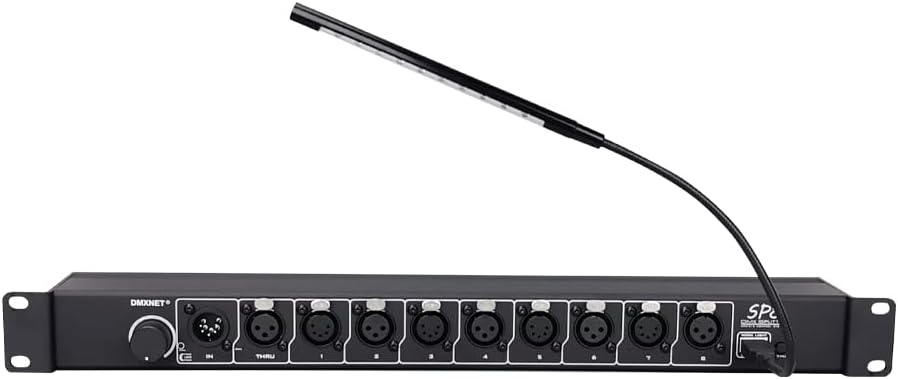

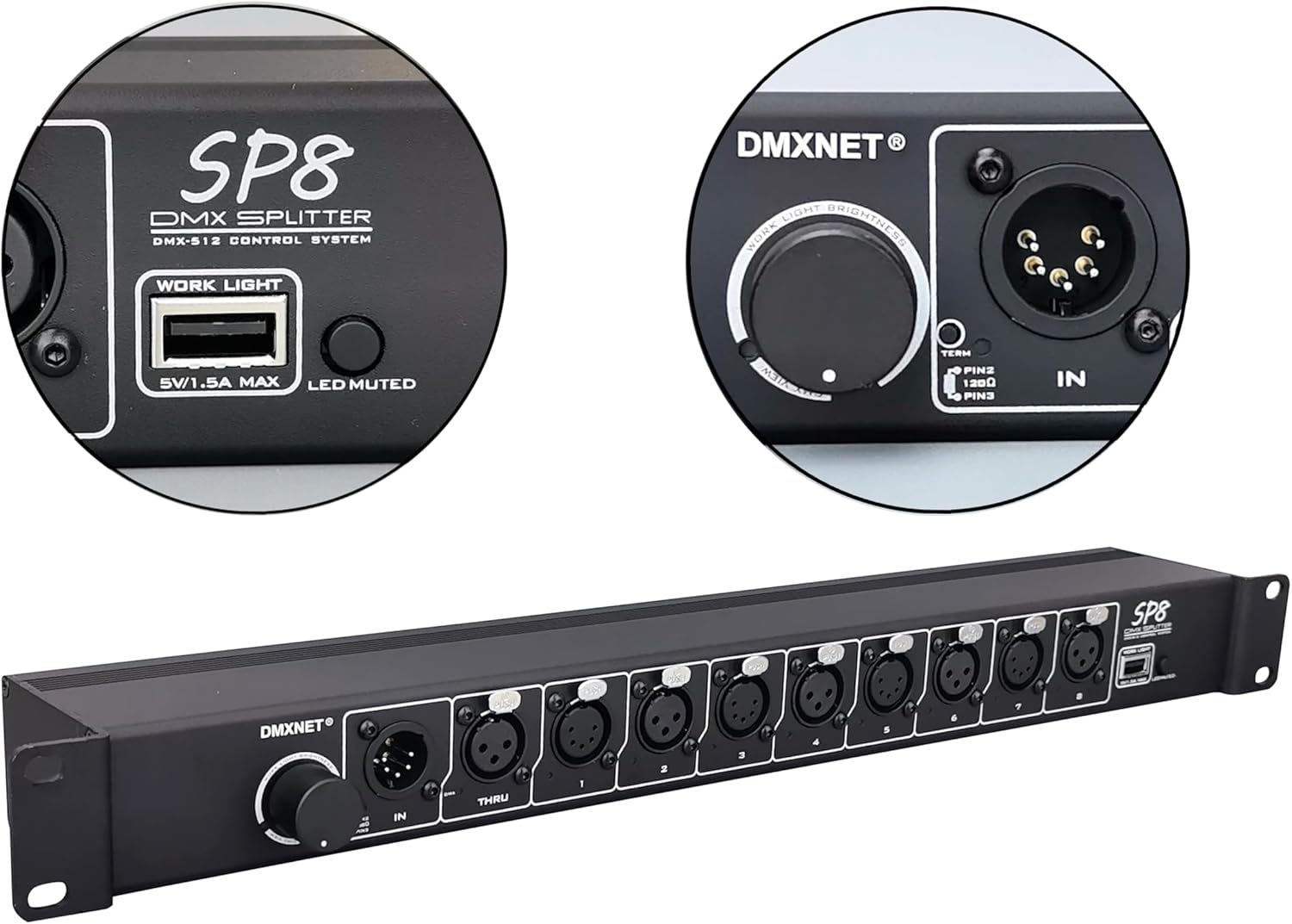

USB PORT- You can connect an external work light (included) , and adjust its brightness with a knob(The USB port does not support charging other devices)
LED AND T
USB PORT- You can connect an external work light (included) , and adjust its brightness with a knob(The USB port does not support charging other devices)
LED AND T
Quantity
-

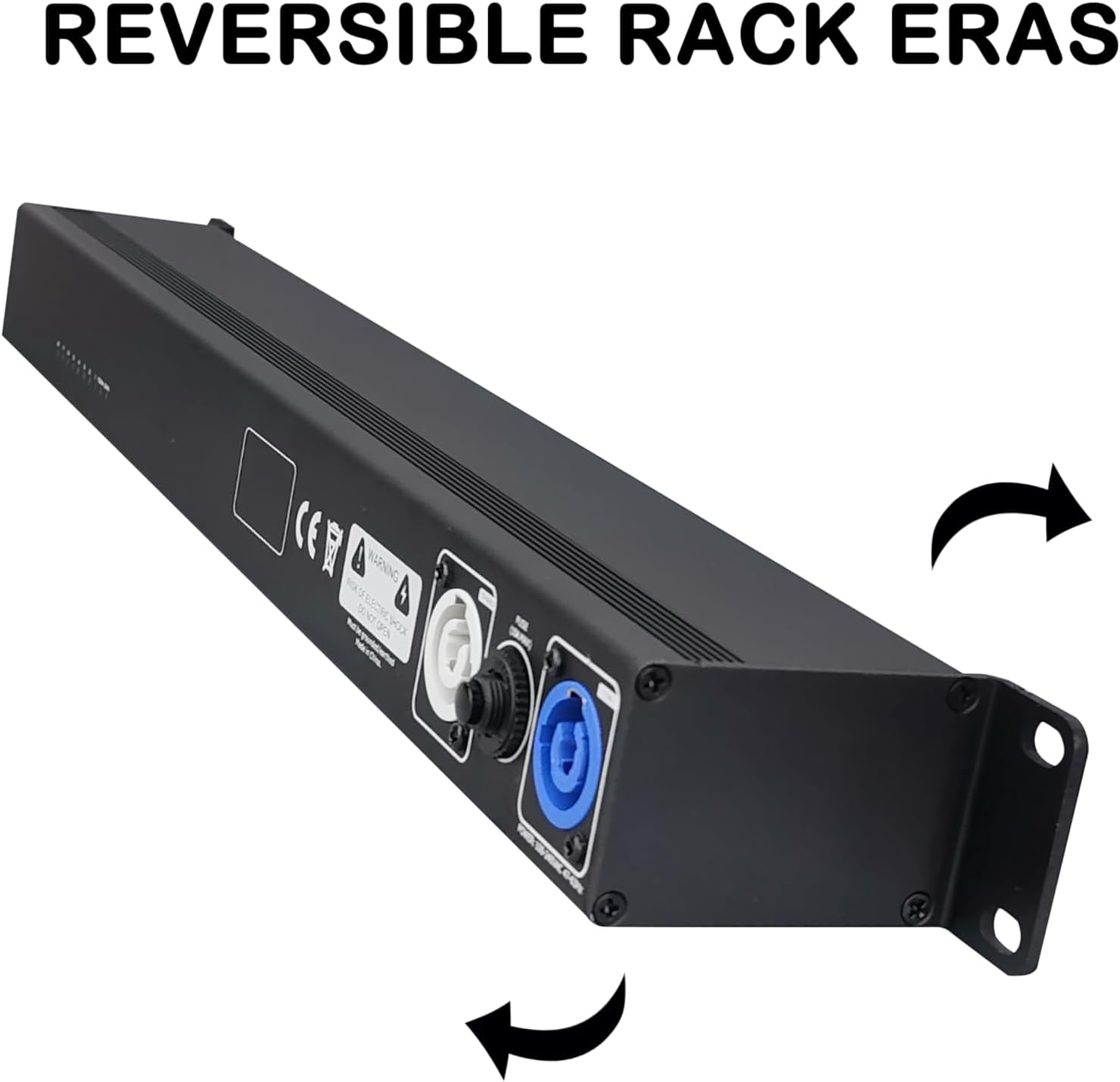

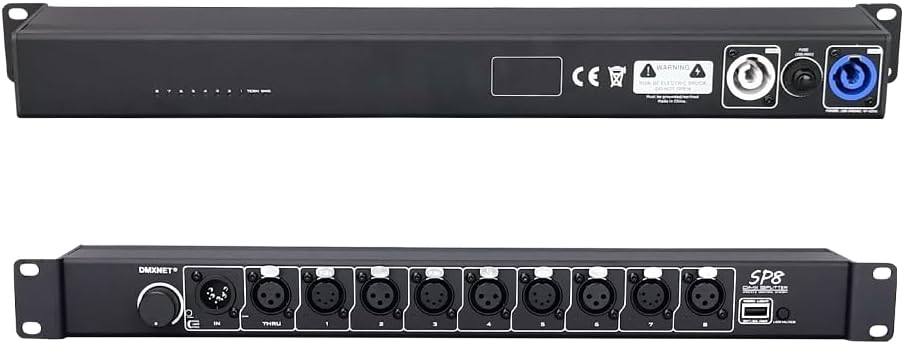

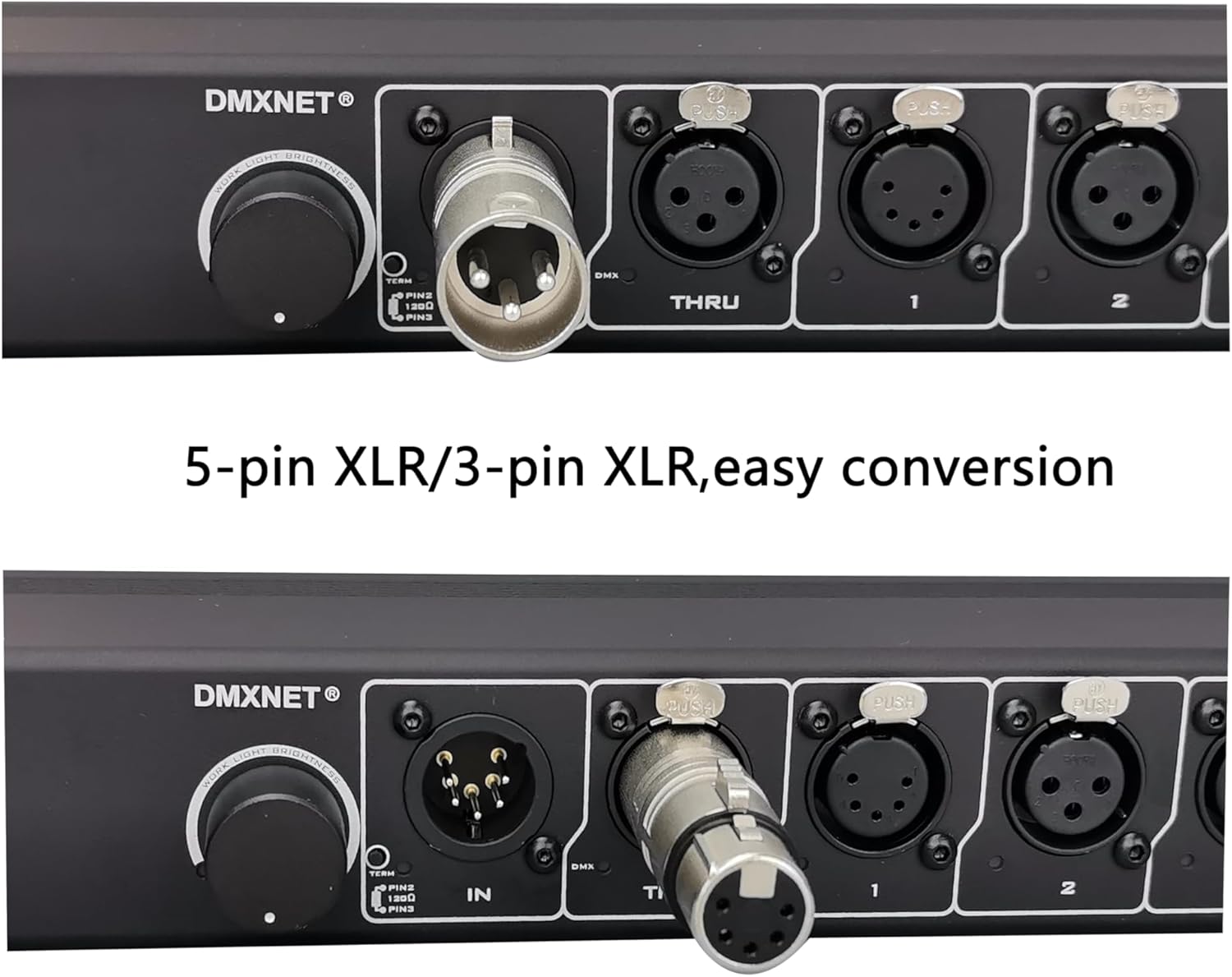

DetailRated working voltage100-240VAC, 50/60HzPower input 2x PowerCON connectors, 1 in, 1 outManual resetable Fuse10A overload short-circuit protector with manual resetInput signal indicatorLED input signal indicatorOutput signal indicators LED separated 8-channel output signal indicatorsInput signal sockets1x5-pin Male XLR, 1x3-pin Female XLROutput signal sockets4x3-pin Female XLR,4x5-pin Female XLRSignal protectionDMX signal photoelectric isolation technology for each channel , isolation voltage up to 1500VUSB Port 5 VDC/1.5A, could be connected to an external work light , and the brightness of the light can be adjusted through the knobDevice dimensions Width (W)485 x Depth (D)92 x Height (H)44mmDevice weight0.8KG
-
