Douk Audio Vacuum Tube Preamp: Headphone Amp with VU Meter, 4-Way RCA Selector Switch Box, Preamplifier with Tone Control for Receivers, Amplifiers, Speakers, 16-600Ω Headphones (TUBE-T5C)
-
Detail
Upgradeable ECC83 Tube & Op-Amp, Low Distortion SNR≥107dB, Bass/Treble Control for Audiophiles

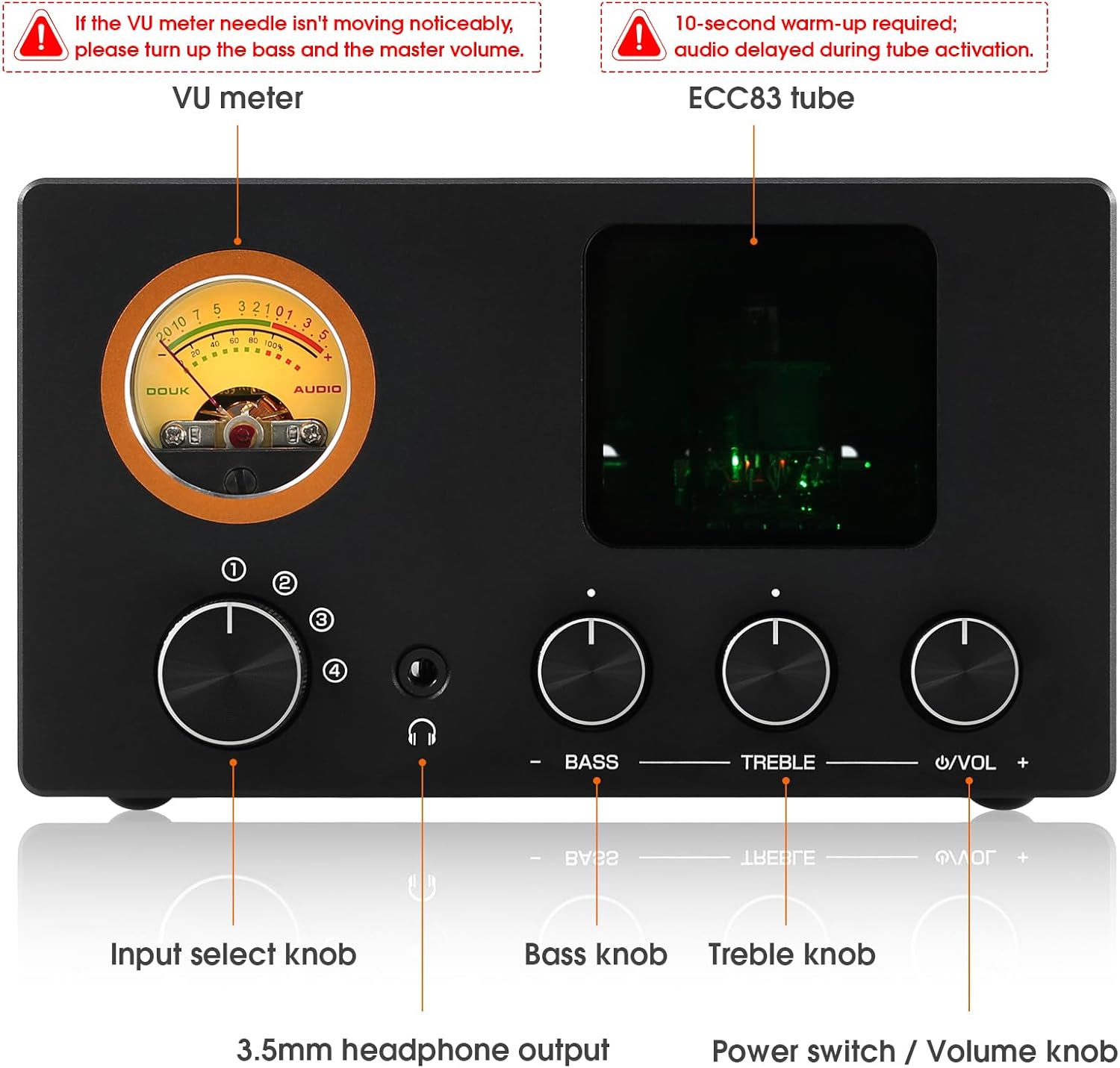

1For Home Audio System2For Desktop Listening1Front2Back3Side4Bottom 1:All outputs work at the same time. The volume/treble/bass are controlled simultaneously.2:If the VU meter needle isn't moving noticeably, please turn up the bass and the master volume.3:10-second warm-up required; audio delayed during tube activation.4:The TUBE-T5C with 1PC pluggable NE5532 op-amp, can be upgraded by dual op-amps like 2134/2604/5532/2068/muse02.5:Default one ECC83 tube, can be directly replaced by PSVANE 12AX7-S and Shuguang 12AX7B / 7025 / 12AX7 etc.6:High voltage inside, please turn the TUBE-T5C off first before replacing the op-amp and the tube, and avoid dropping anything inside.Can this amplifier drive high-impedance headphones?
Yes. The TUBE-T5C supports 16-600Ω headphones (e.g., Sennheiser HD650, Beyerdynamic DT 990 Pro) with up to 500mW output power. Its tube circuit delivers dynamic, high-fidelity audio and includes ±6dB bass/treble controls for personalized tuning.
Can I connect a turntable to this preamp?
Only if your turntable has a built-in phono preamp. The TUBE-T5C accepts line-level signals via its 4 RCA inputs but lacks a dedicated phono input. Turntables without a phono stage will require an external preamp.
Is a power adapter included?
Yes. The package includes a DC 12V power adapter (listed in the packing list). Allow a 10-second warm-up when powered on—audio output is intentionally delayed during tube activation.
Does it have bass/treble adjustment?
Yes. It features dedicated ±6dB bass and treble controls. If the VU meter needles show minimal movement, increase the bass and master volume for enhanced visual feedback.
Is a DAC built into this device?
No DAC is included. The TUBE-T5C is a purely analog tube preamp/headphone amplifier. Connect it to external DACs, CD players, or streaming devices via RCA cables to leverage its ultra-low noise circuitry (THD ≤0.06%, SNR ≥107dB).
Tube Preamp w/ VU Meter | 4-Way RCA Selector | Headphone Amp
Effortless Source Management
Powerful & Customizable Sound

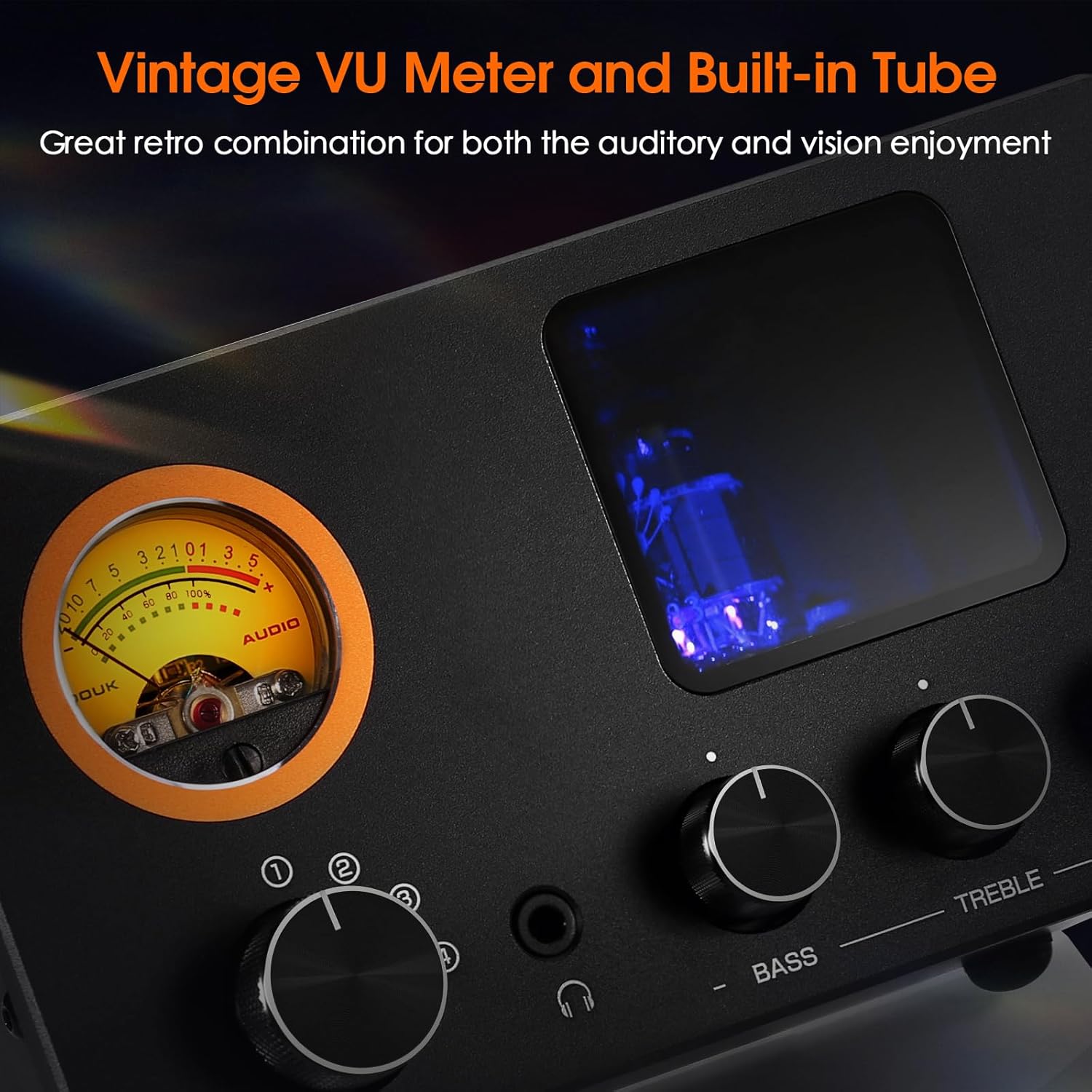

Vintage VU Meters & Glowing Tubes
Audiophile-Grade Purity

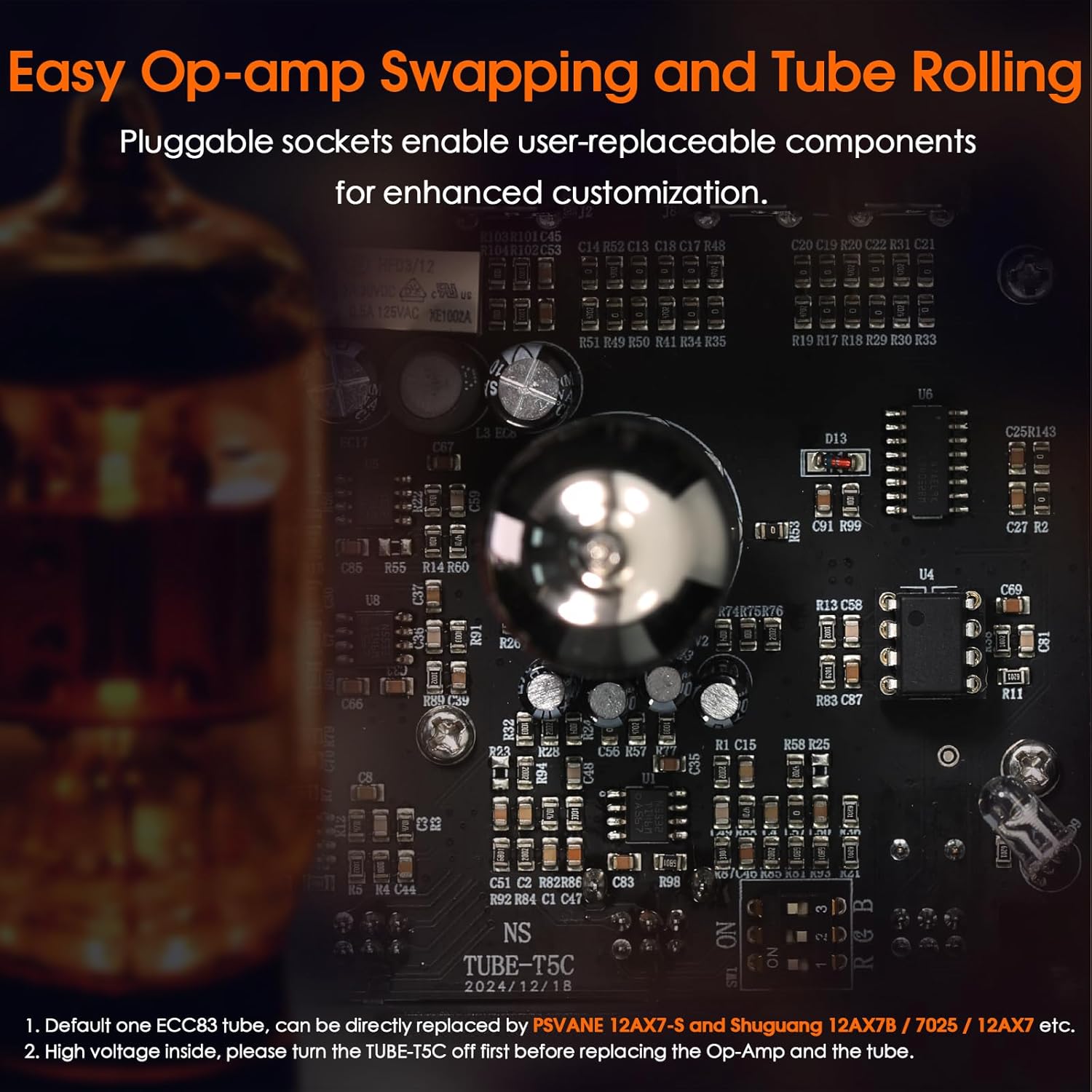

Easy Op-Amp & Tube Swaps
Warm Tips
Can this amplifier drive high-impedance headphones?
Can I connect a turntable to this preamp?
Is a power adapter included?
Does it have bass/treble adjustment?
Is a DAC built into this device?
-
