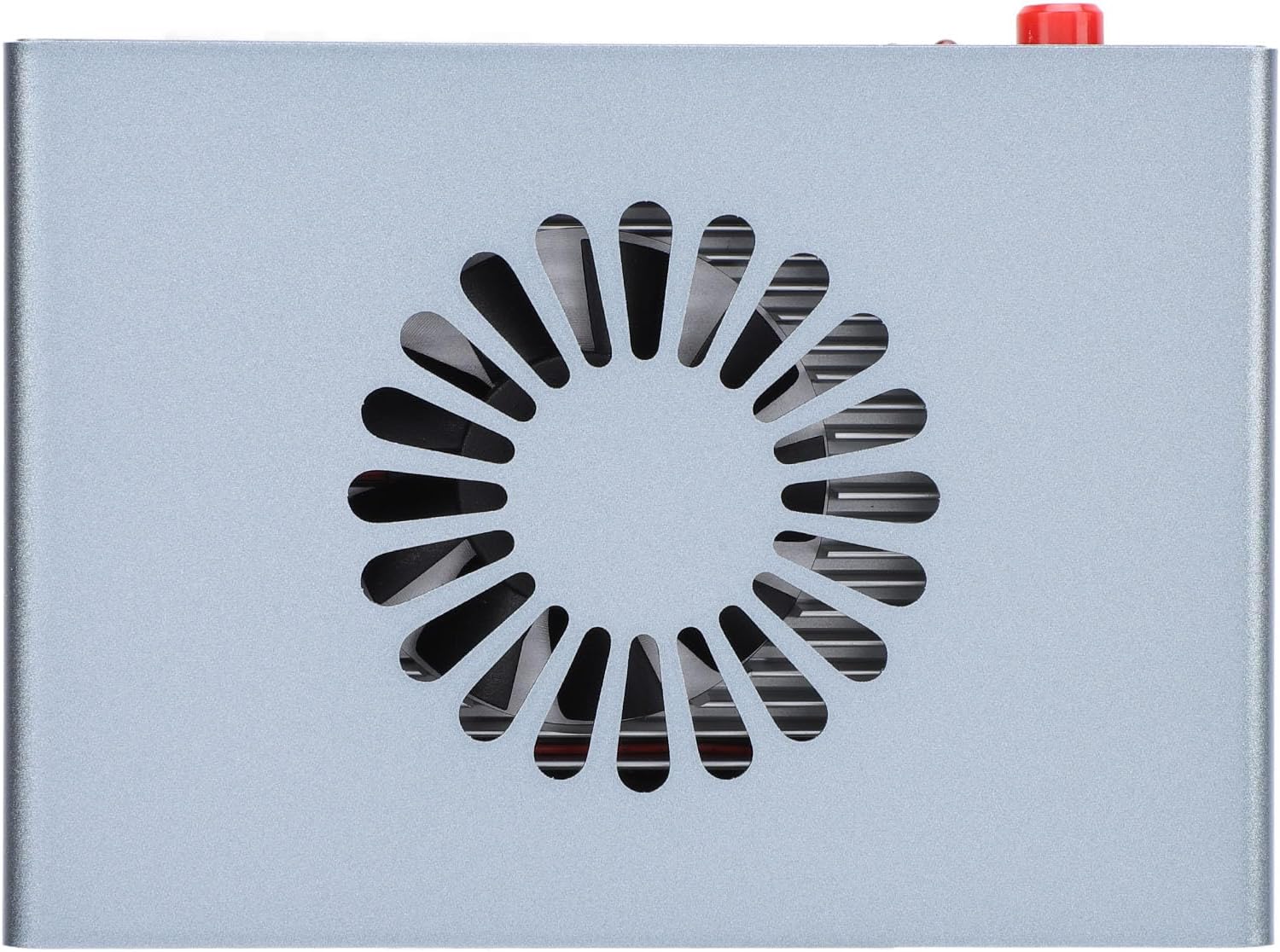

HDMI Synthesizer, 2K HD 144Hz, 2 HDMI Input Overlayed Into 1 HDMI Output, Display Fuser, Display Overlay, Built in Temperature Controlled Fans, DMA Hardware Adaptive
HDMI Synthesizer, 2K HD 144Hz, 2 HDMI Input Overlayed Into 1 HDMI Output, Display Fuser, Display Overlay, Built in Temperature Controlled Fans, DMA Hardware Adaptive
High Efficiency DMA Fuser: The DMA fuser is a standalone hardware device or technology that optimizes the efficiency of data processing and transfer. It's primarily utilized in high bandwidth data transfer and processing scenarios such as image processing, video decoding encoding, and network commun
Quantity
-
DetailHDMI OutputConnects to the main display (the main screen for gaming)HDMI Main UnitConnects to the main computer's graphics card (the computer for gaming)HDMI 2 Secondary UnitConnects to the secondary machine's graphics cardType CFor program upgrades and EDID injectionDC12VPower supply cable input (default 12V2A)Indicator Lights:D1: Power light (steady light indicates normal functionality); D2: Fuser function on off indicator (steady light indicates fuser function is on, no light means it's off); H2: High definition multimedia interface 2 secondary input signal light (steady light indicates normal functionality); H1: High definition multimedia interface 1 main input signal light (steady light indicates normal functionality)Button Functions:As Shown BelowPowerPower switchK1Short press cycles through resolution options: 1920x1080, 2560x1440, 3840x2160, 2560x1080, 3440x1440, with a factory default of 1920x1080; Long press for three seconds (hold until display): The top left corner of the screen displays the current resolution and refresh rate, with the main unit info on top and the secondary unit info on bottomK2Short press cycles through upper layer keying strengths, with 21 stages from 0-20. The factory default is at 0 (keying occurs at 0 as well)K3Short press restores upper layer keying strength to factory default of 0K4Short press turns the fuser function on offMaterialAluminum alloyPackage List1 x HD Multimedia Interface Synthesizer; 1 x Supply Cord; 1 x USB Cable; 1 x User Manual
Specification
-
