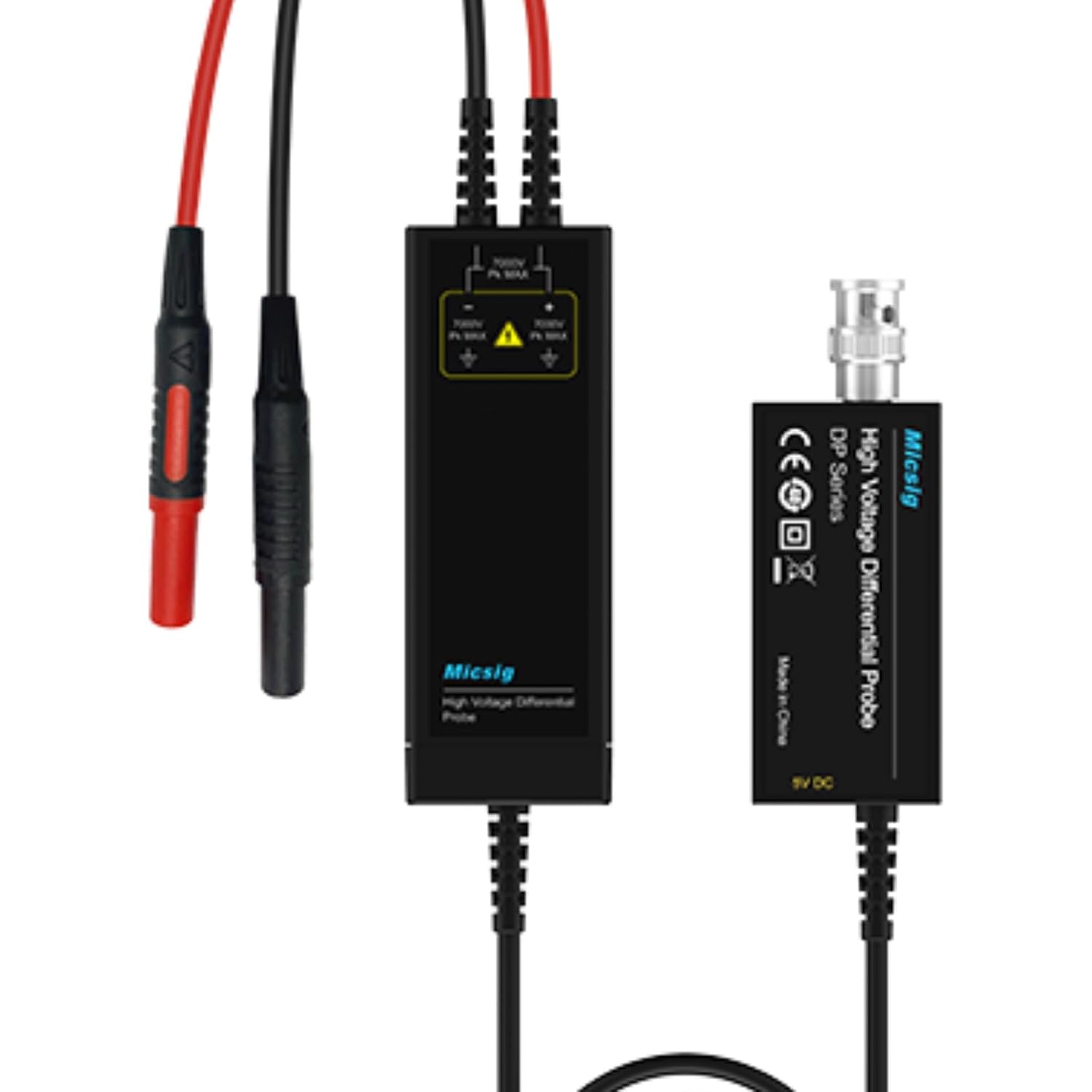

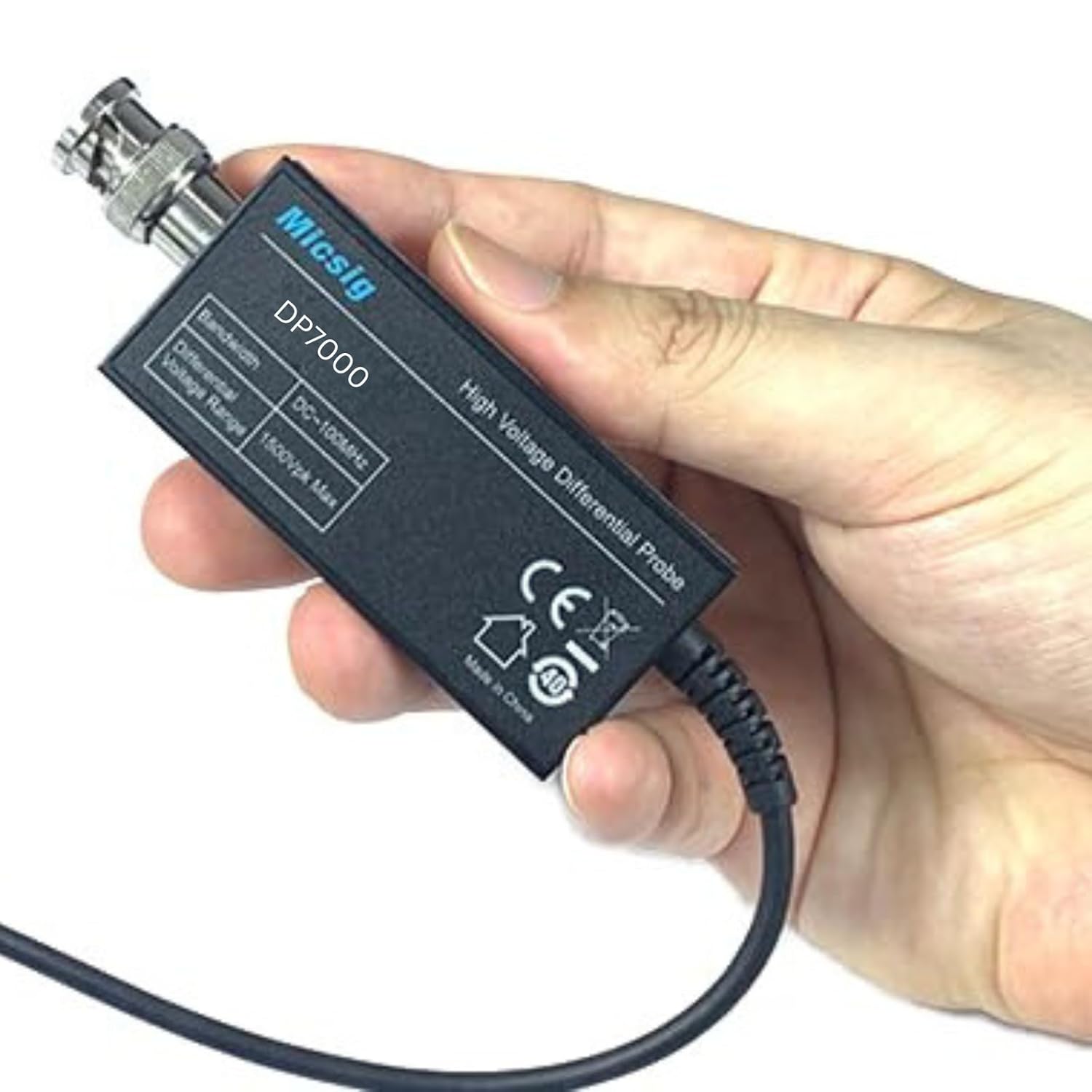

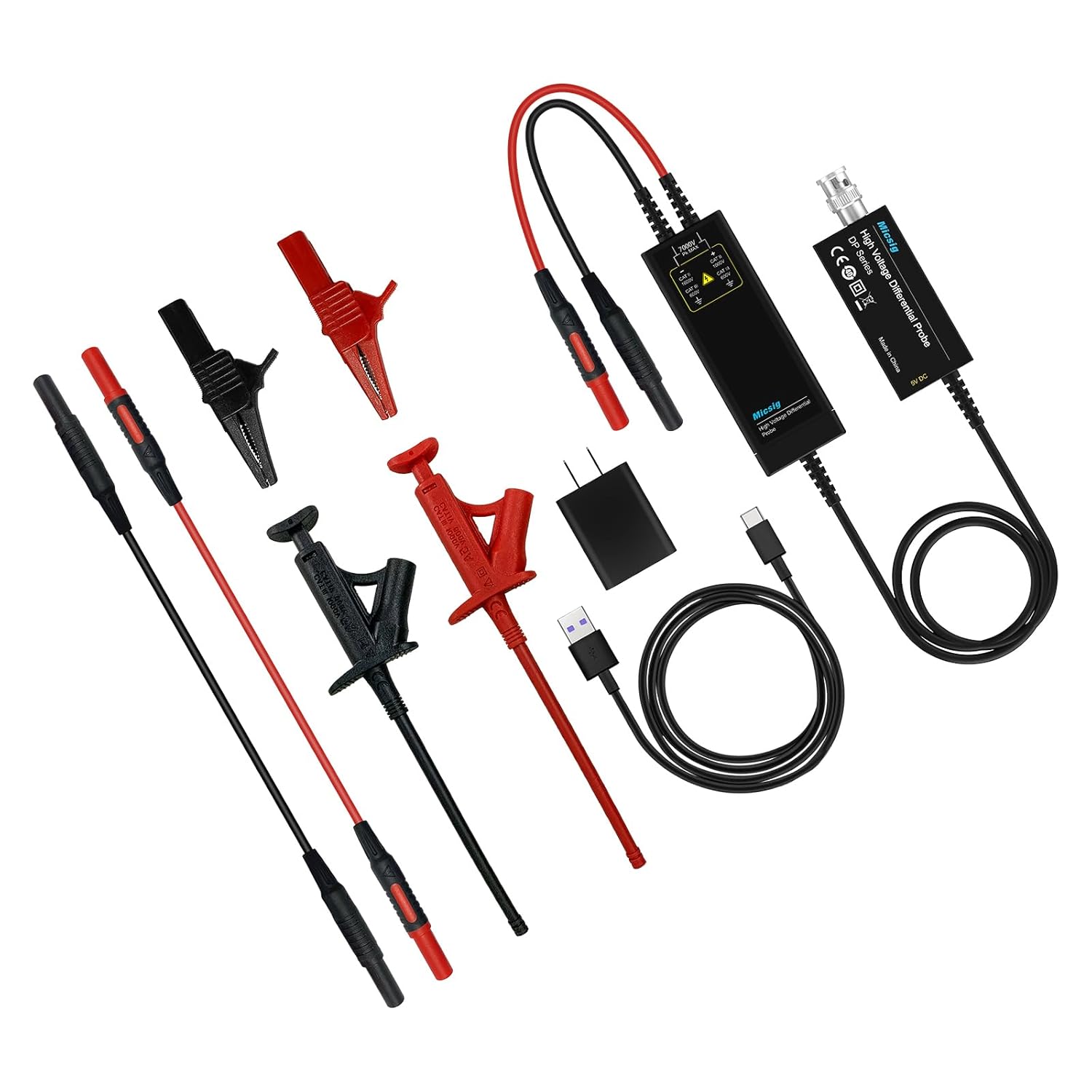

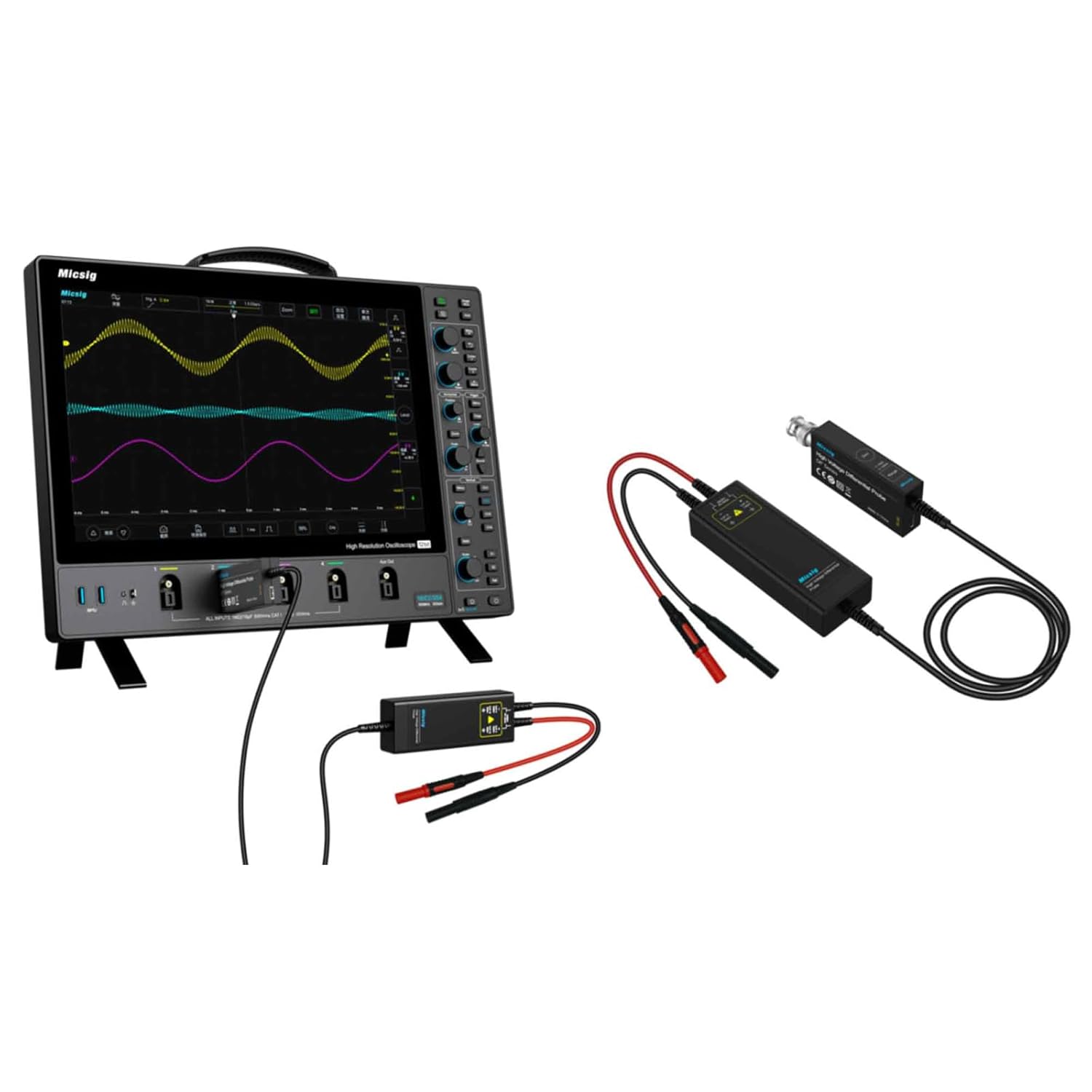

Micsig DP7000 High Voltage Differential Probe Kit, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory
Micsig DP7000 High Voltage Differential Probe Kit, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory
Cutting-Edge Technology: Originating from Micsig’s advanced SigOFIT technology, this probe offers a very low noise floor, excellent amplitude-frequency characteristics, and an industry-leading common mode rejection capability.
High Accuracy: The MDP series probe has superior bandwidth flatness, w
High Accuracy: The MDP series probe has superior bandwidth flatness, w
Quantity
-
Detail
DP3000 has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.
Floating measurements, High voltage isolation measurements, Switching power supply design, Power converter design, Inverter, UPS power supply, Welding, electroplating power supply, Electronic ballast design, Motor drive design, Induction heating, induction cooker, CRT display design, Low-voltage electrical appliances, Electronic power and electric drive experiments
ModelMDP7000Bandwidth100MHzDifferential Voltage Max.700V(100X) 7000V(1000X) CMRRDC:>-80dB 100kHz: >-60dB 10MHz: >-30dB 100MHz: >-26dBInput impedance60MΩ / 0.78pF(differential) 30MΩ / 1.6pF (each input to ground)Excellent Bandwidth Flatness
Applications
SPECIFICATIONS
-
