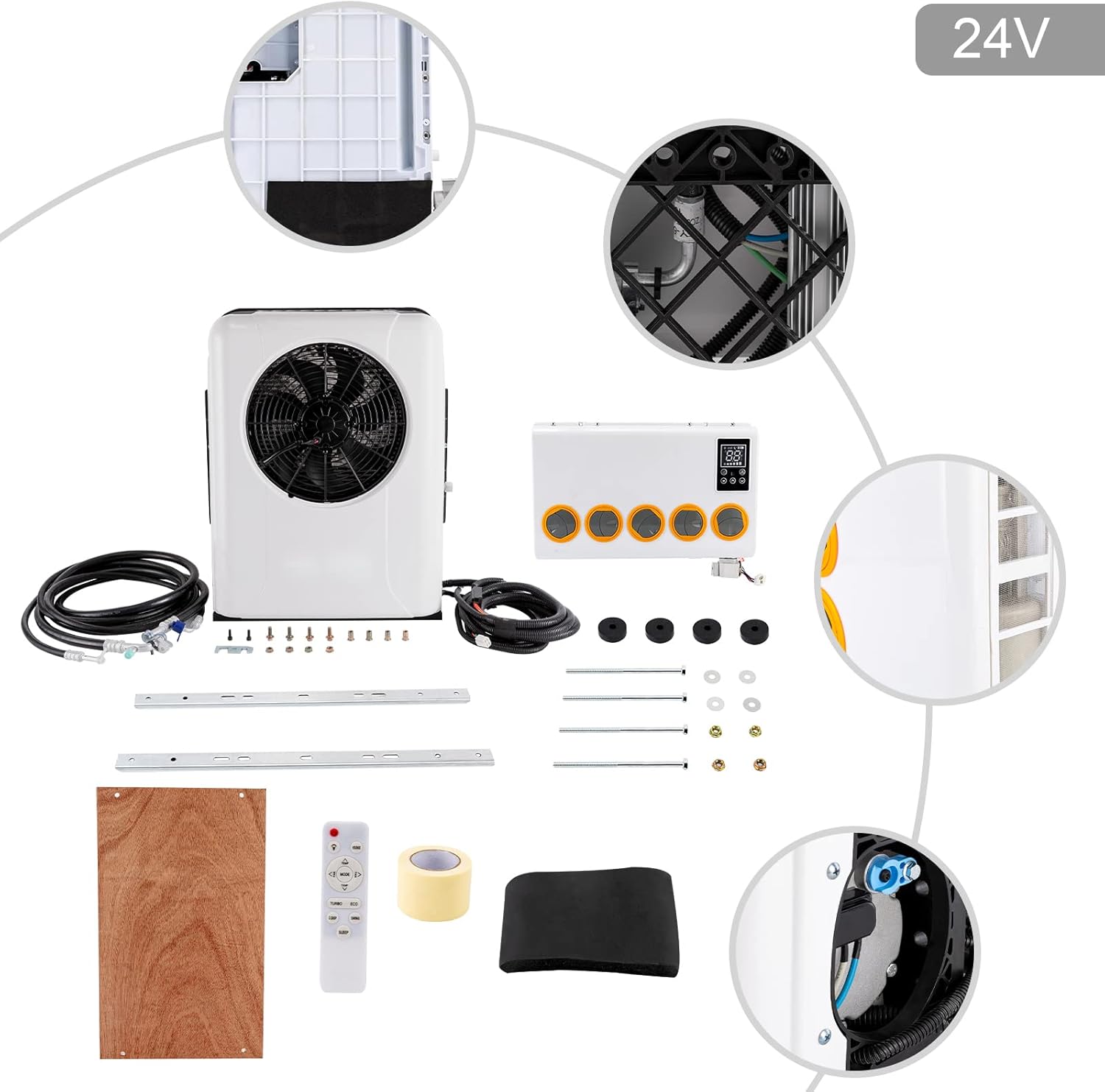

RV Air Conditioners，24V 3400-10238BTU Universal RV Air Conditioner System Split Mini Split AC System Unit for Semi Trucks Bus RV Caravan Agricultural Vehicles, Campers

Specifications

Applicable Models: Car (Cab Within 6㎡/64ft²)

Color: Black, White

Voltage: 24V

Rated Power: 950W

Condition: New

Material: Copper, Aluminium, ABS

Installation Position: Inside the Cab; Outside the Cab

Refrigerating Capacity: 1000W-3000W (3400-10238BTU)

Refrigerant: R134A (400-450g/0.88-0.99lbs) (Not Included in the Package)

Oil: 90ml-120ml/0.02-0.03gal POE68

Speed Range: 1000-3000rpm

Way of Use: Direct Replacement

Number of Pieces: 2

Outdoor Unit Size: 49*21*66cm/19.3*8.3*26inch

Indoor Unit Size：49*33cm/19.3*13inch

Installation

Remove the outer casing.

Select the installation position and mark the punch position. (Select 5 installation points)

Punch holes at the mark points. (Tool: an 8mm/0.3inch drill)

Use a pull riveter to fix the pull rivet nut at the marked hole.

Fixed the damping pad and sleeve at the marked points on the external machine.

Fixed the external machine.

Install the internal machine: install an expansion valve.

Fixed internal machine mounting plate.

Fixed the internal machine.

3/8inch pipe (high-pressure pipe) connected to the condenser.

Connect internal and external machine wires and power cord.

Connect internal and external pipes, and fixed the evaporation box.

Connect internal and external wires.

Install the drainage pipe.

Vacuum for 15-20 minutes.

Refill refrigerant (Pure R134a) 400-450g/0.88-0.99lbs.

The power cord is connected to the battery.

Install the outer casing.

Winding tape to fix the internal and external machine connecting pipe and the internal and external machine connecting wire.

The installation is complete.

Fits (As a Reference)

For car (Cab Within 6㎡/64ft²).

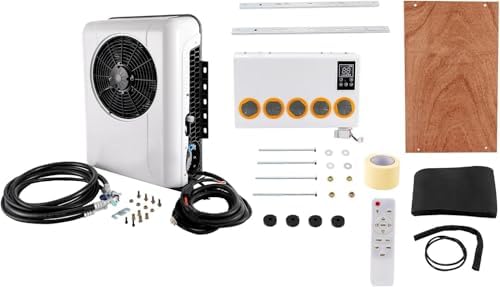

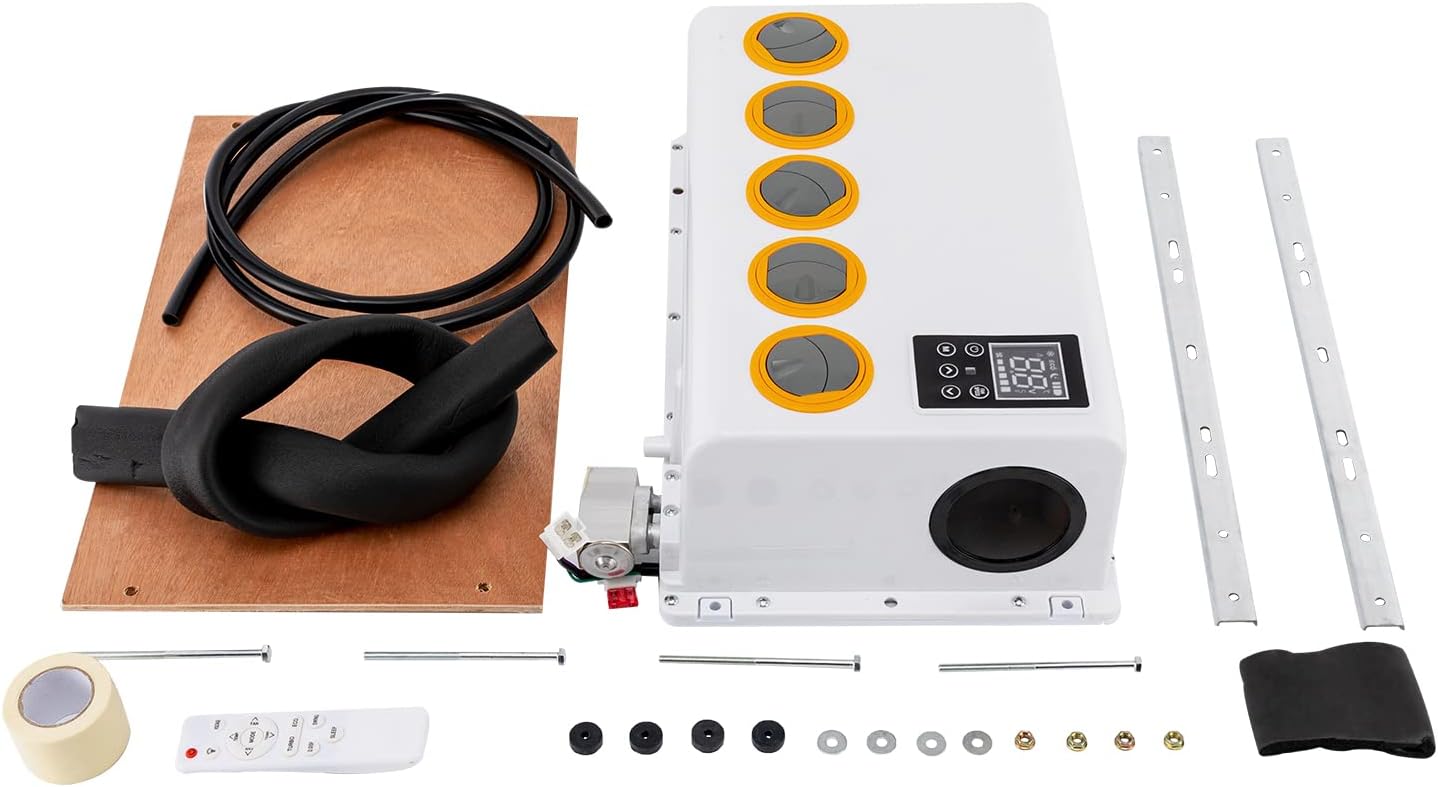

Package Included

1* Air Conditioner Kit

1* Remote Control
