Rockville PRE-70V 8-Zone Stereo Preamp Mixer with Bluetooth, USB/SD/FM, Mic Inputs, Chime, Bass/Treble Control, for 70V Audio Systems

Package Includes:

• Rockville PRE-70V 70V 8-Zone Preamp Mixer
• Remote Control
• Rack Mount Ears
• Power Cable
• FM Radio Antenna
• Setup Guide

Versatile 70V Preamp Mixer for Commercial and Multi-Zone Audio

The Rockville PRE-70V is a professional-grade 70V preamp mixer designed for multi-zone audio applications. With 8 mono or 4 stereo zones, independent volume controls, and multiple input options, this preamp is an ideal solution for restaurants, offices, schools, and other commercial environments.

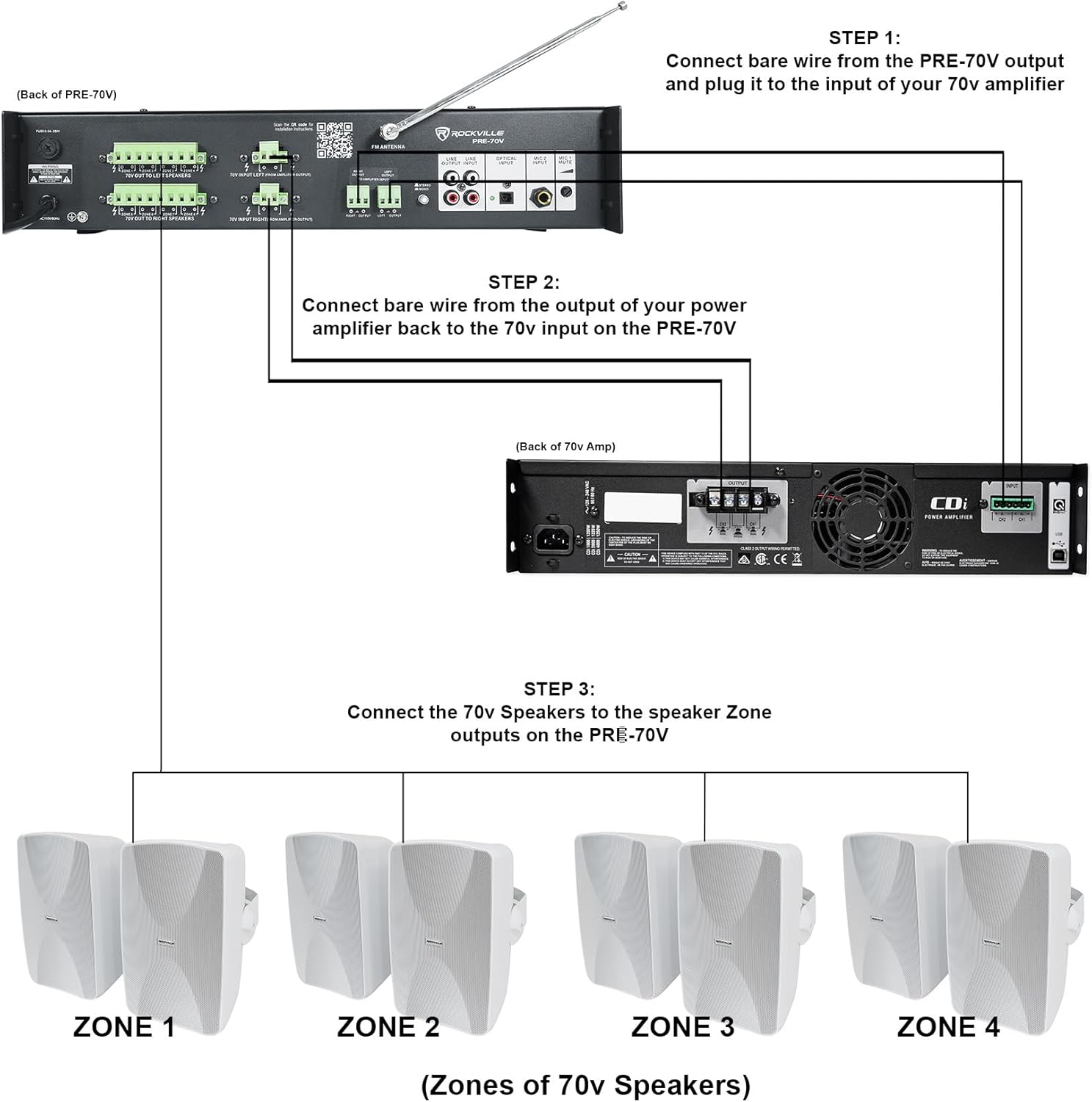

This unit pairs seamlessly with any 70V power amplifier up to 1,000 watts RMS, allowing you to create a customized and expandable sound system. Built-in Bluetooth, USB, and SD inputs provide convenient playback options, while the optical input and RCA line connections ensure compatibility with a variety of audio sources.

Customizable Sound and Easy Integration

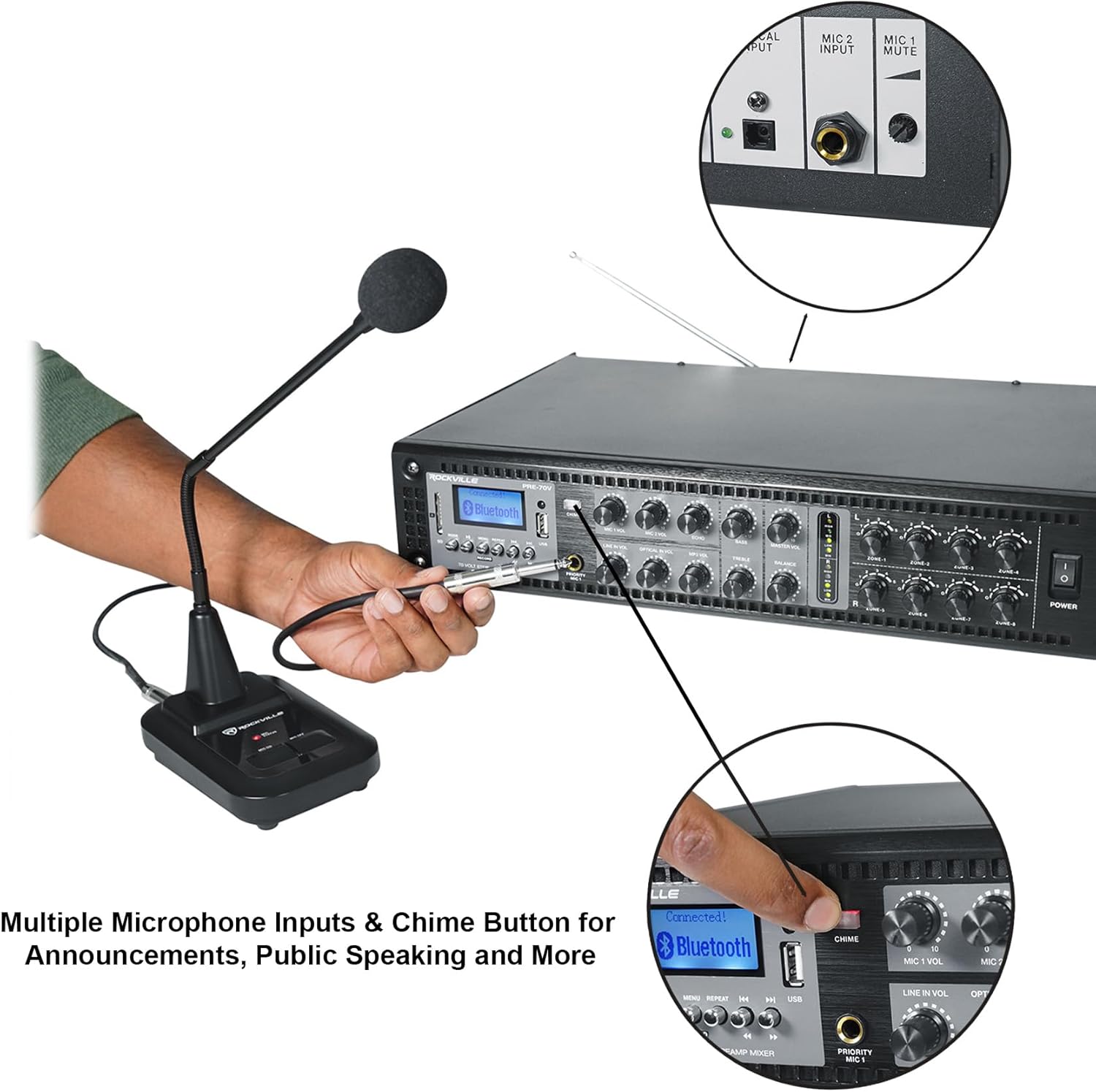

Equipped with two microphone inputs featuring echo control—one with a talk-over function—the PRE-70V is perfect for announcements and paging. A built-in chime button allows for attention-grabbing alerts, making it well-suited for public address applications.

The unit’s detachable euro-block speaker terminals simplify installation, making it easy to wire multiple zones efficiently. Bass and treble adjustments allow for fine-tuning the sound to fit different environments.

Key Features:

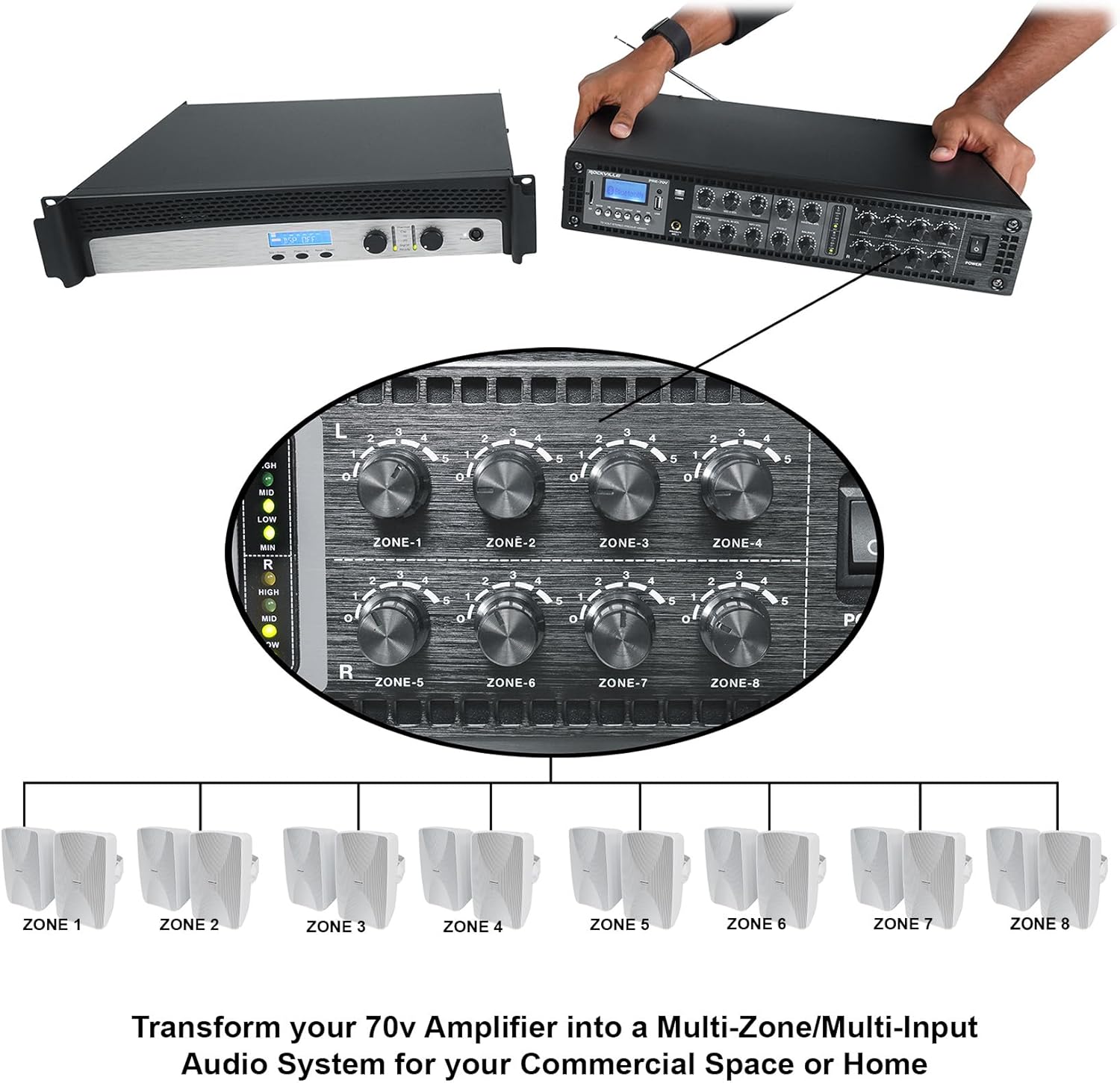

• Multi-Zone Control: 8 mono or 4 stereo zones with independent volume controls.
• Flexible Connectivity: Bluetooth, RCA, optical, USB, and SD inputs.
• Microphone Inputs: Two mic inputs with echo control, one with a talk-over feature.
• Chime Button: Useful for making announcements.

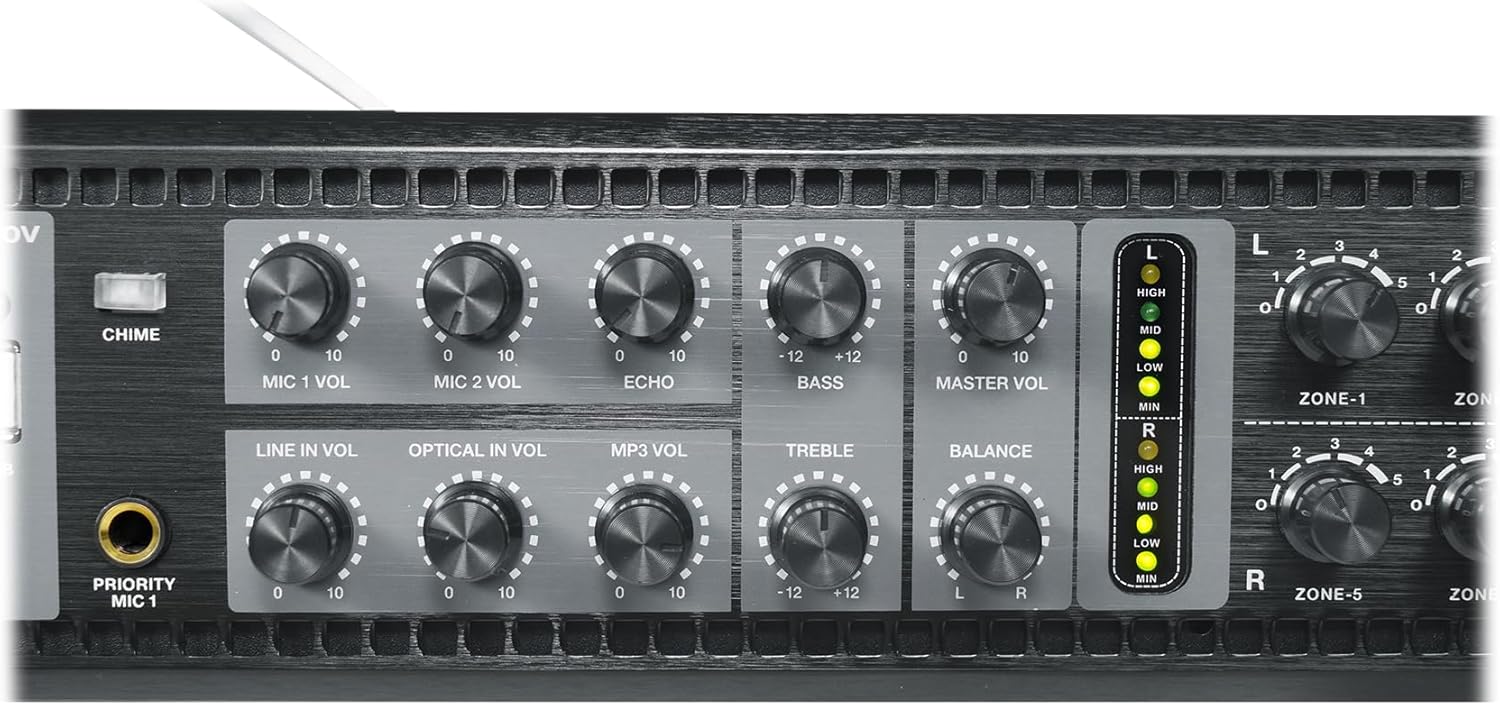

• Custom Sound Adjustment: Bass and treble controls for fine-tuning audio output.
• User-Friendly Controls: Industrial-grade knobs with 4-segment signal level indicators.

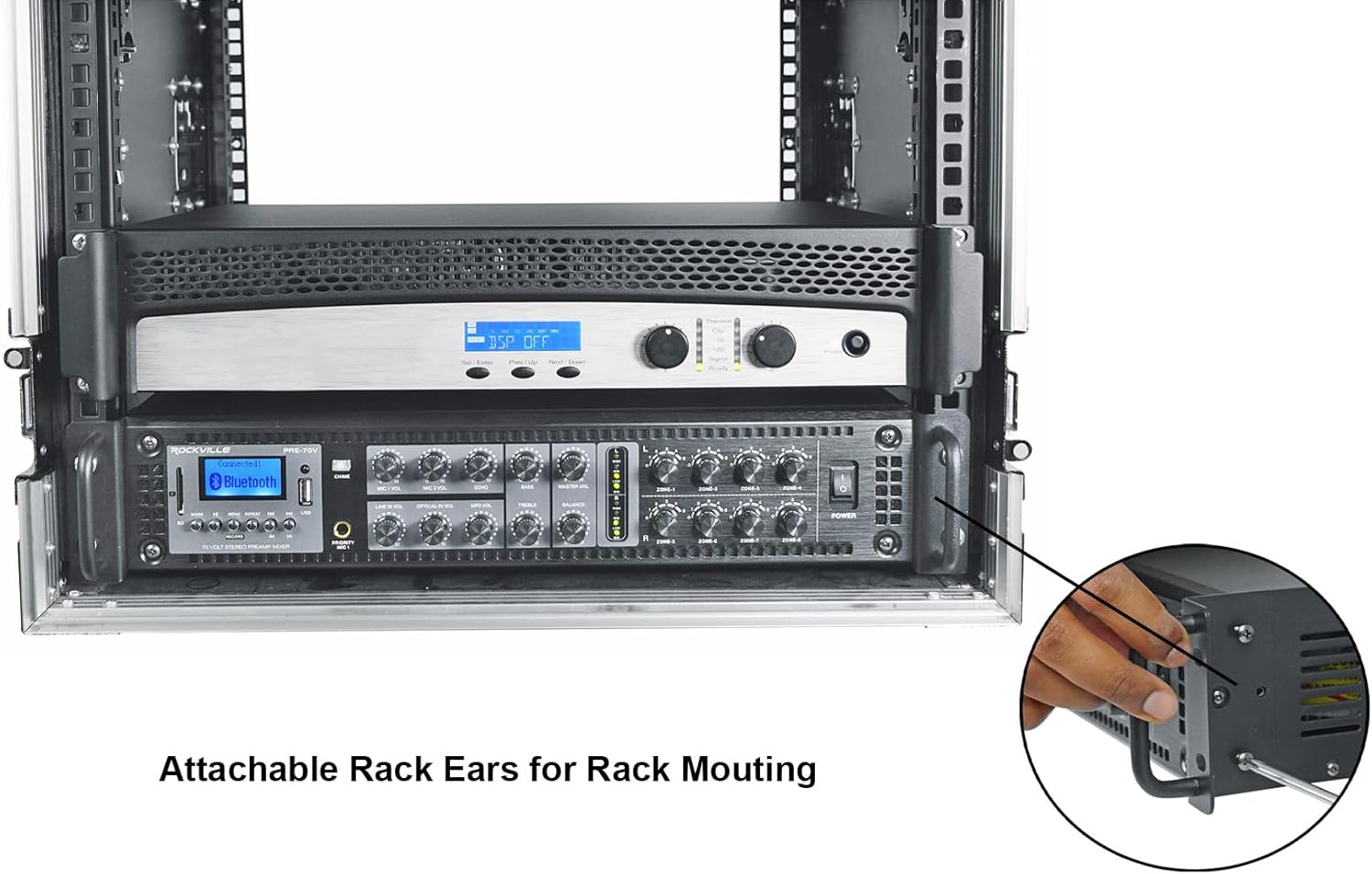

• Secure Installation: Rack-mountable design with included mounting ears.
• Durable Construction: Aluminum front panel for a professional appearance.

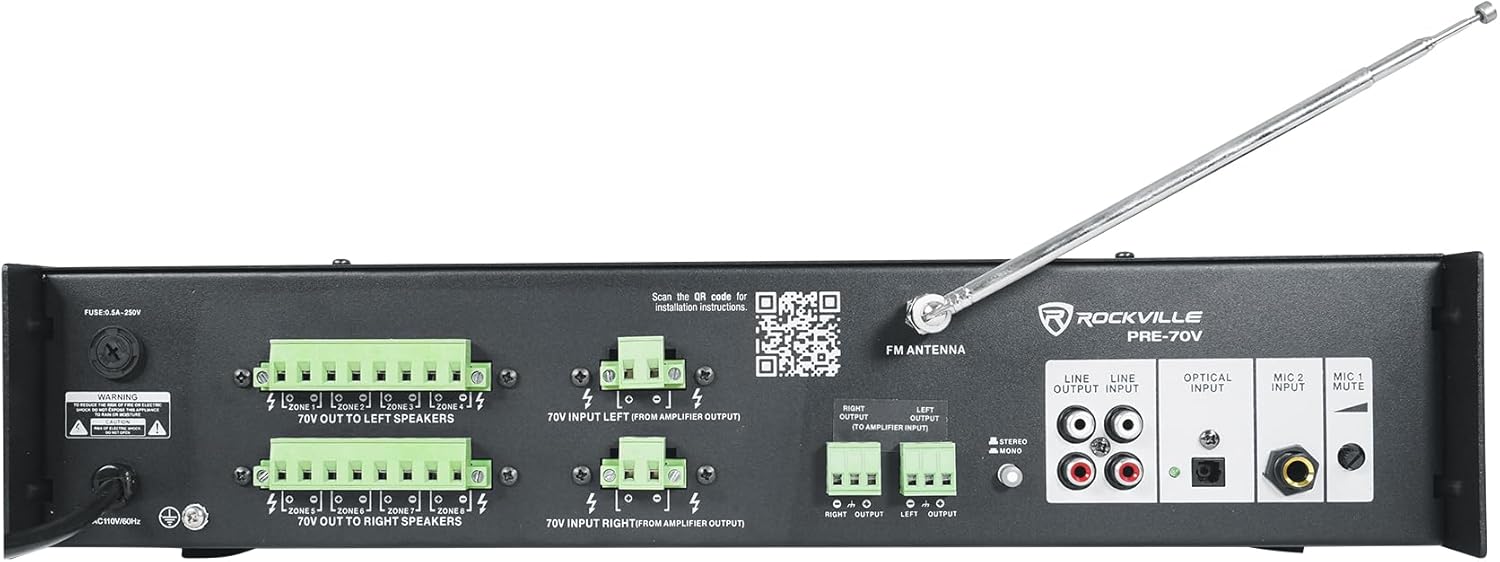

Inputs and Outputs:

• RCA AUX Input
• Two Microphone Inputs
• RCA Line Output
• Optical Input
• Detachable Euro-Block Speaker Terminals (8 Zones)

Technical Specifications:

• Compatible with any 70V amplifier up to 1,000 watts RMS (500W x 2 or 1,000W x 1)
• Power Requirements: 120V / 50-60Hz
• Signal-to-Noise Ratio: -68.1 dBA (at 1W), -89.2 dBA (full 4-ohm power)
• Frequency Response: 49Hz – 14.9kHz
• THD+N (at 1W, 8 Ohms): 0.89%
• Weight: 18.7 lbs.

Perfect for Commercial and Multi-Zone Applications

Ideal for restaurants, offices, schools, lounges, and multi-room home audio setups, the Rockville PRE-70V provides the flexibility and control needed for an efficient and professional sound system.
