AMP-16CH 16 Channels UHF Wireless Antenna Power Distribution System,14 Outputs + 2 Cascade Ports,Microphone Antenna Splitter,Antenna Amplifier,Signal Amplifier for Wireless Microphone

PALPEAL AMP-16CH Antenna Distribution System can expand the signals of the wireless microphone system by splitting one pair of the antennas to

wireless receiver.and enable wireless microphone signals up to 2,200 feet,It also amplifies RF signals to compensate for insertion loss

that results from splitting signal power to multiple outputs.And can supply the power port to the UHF wireless system.

1. It covers UHF 400-970MHz frequency band

2. Compatible with most UHF active antenna paddles,And power the active antenna through the BNC cable (12V DC power)

3. Compatible with Shure Sennheiser AKG ... Brand UHF wireless microphone

4. It supports 8 units 2-antenna wireless microphone receiver or 4 units 4-antenna wireless microphone receiver,

5. Use the cascade method to cascade up to 8 units antenna splitters for More wireless microphone systems

6.Cascade port can be used to connect another Shure UA844 UA845 UA840 and PAS-225,AMP-925L for multiset operation

Carrier frequency range: 400-970MHz

Type of input/output antenna connector: BNC

Impedance: 50 Ω

Channel：16 channels output

Output external power supply: DC 12V 800mA

Input power: AC100-260V

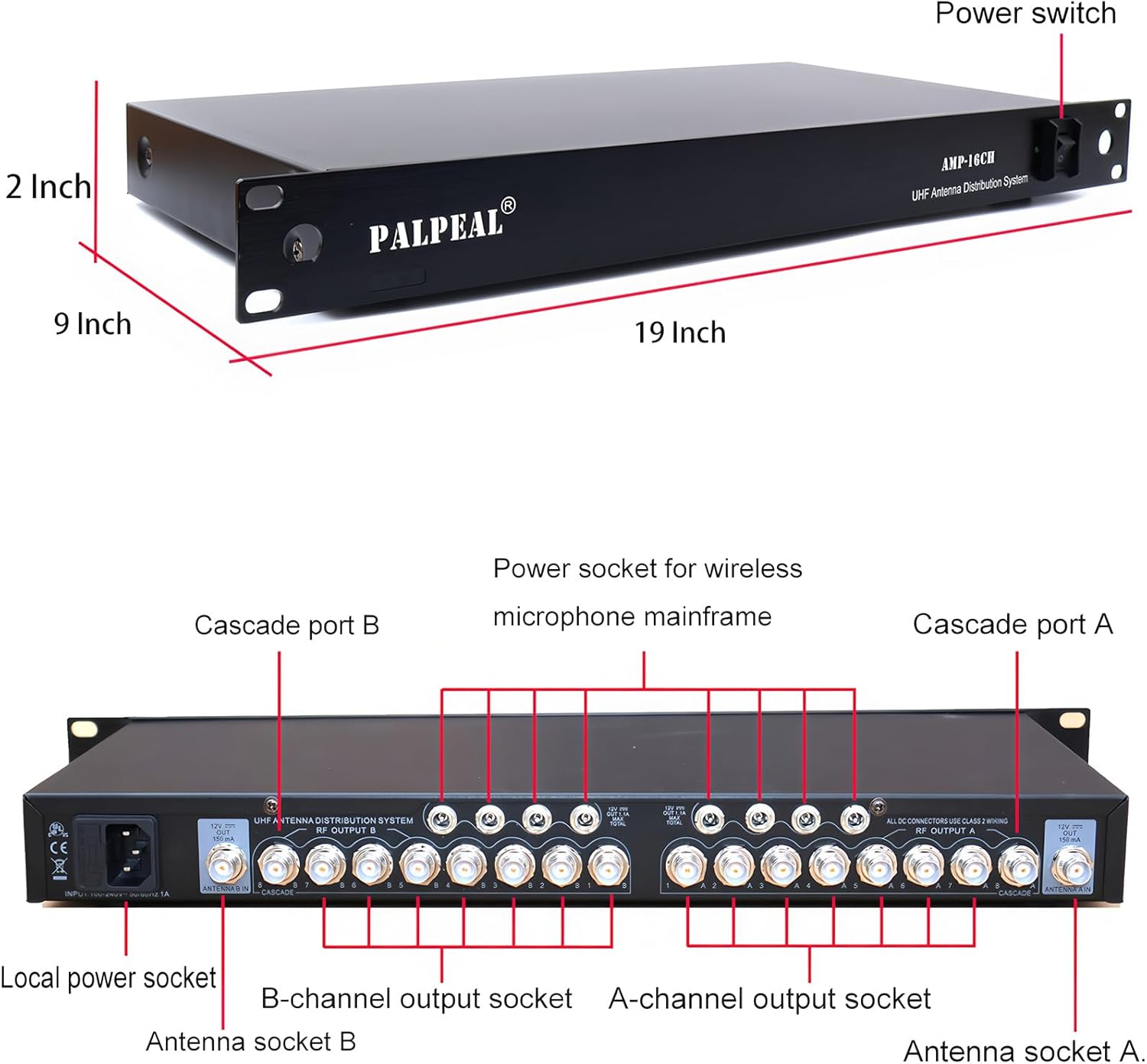

PALPEAL AMP-16CH Antenna Distribution System (14 output port +2 cascade port)

1. Support 16 units 1-antenna wireless microphone receiver.

2. Support 8 units 2-antenna wireless microphone receiver.

3. Support 4 units 4-antenna wireless microphone receiver.

Use the cascade method to cascade up to 8 antenna splitters for More wireless microphone systems.

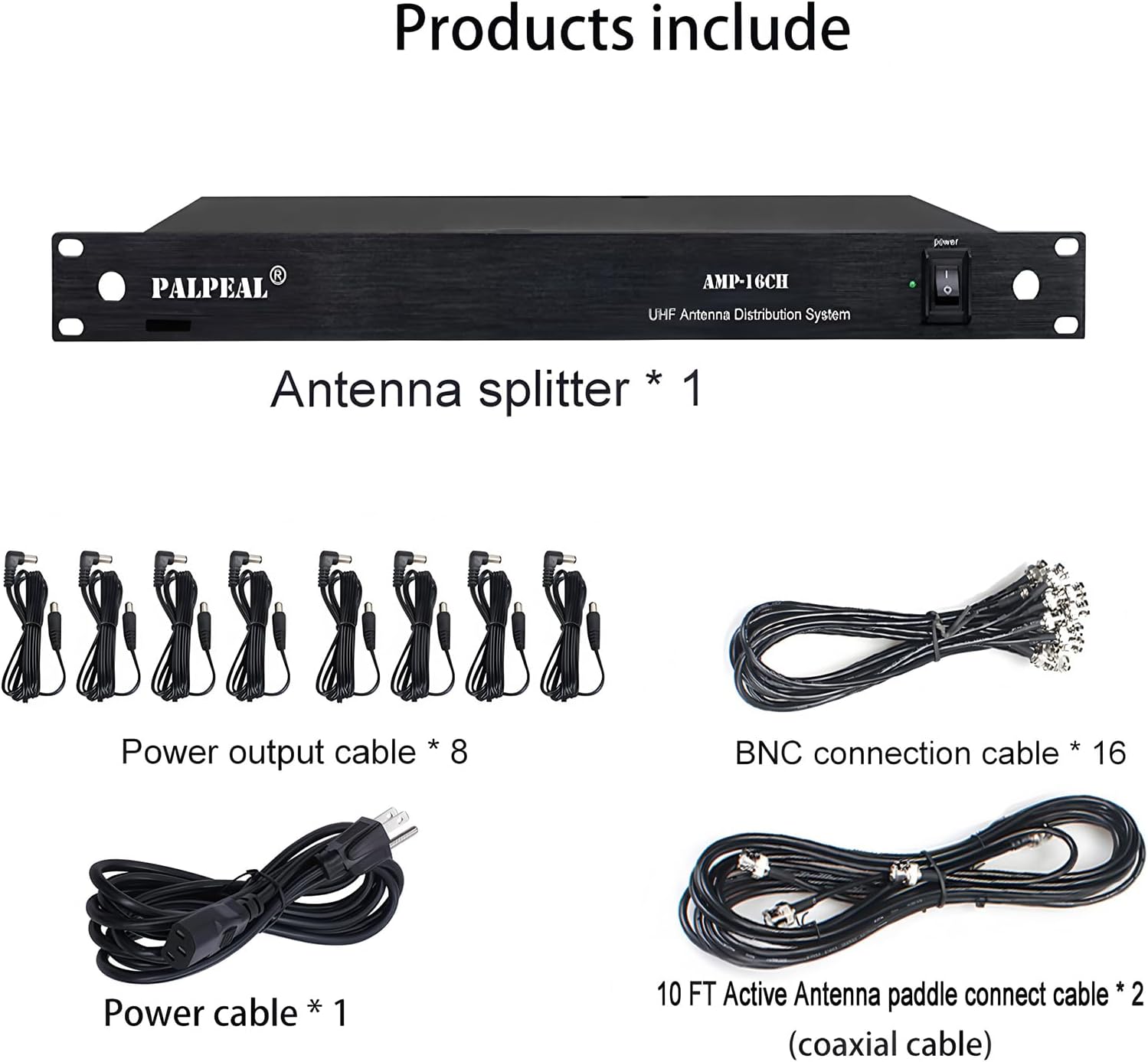

If you want to add Antenna paddle and antenna splitter,You can buy extra in this store.

NOTE: Antenna paddle not included

PALPEAL AMP-16CH 16 Channels UHF Active Antenna Distribution System for Wireless Microphone System

Product features:

Technical parameters:

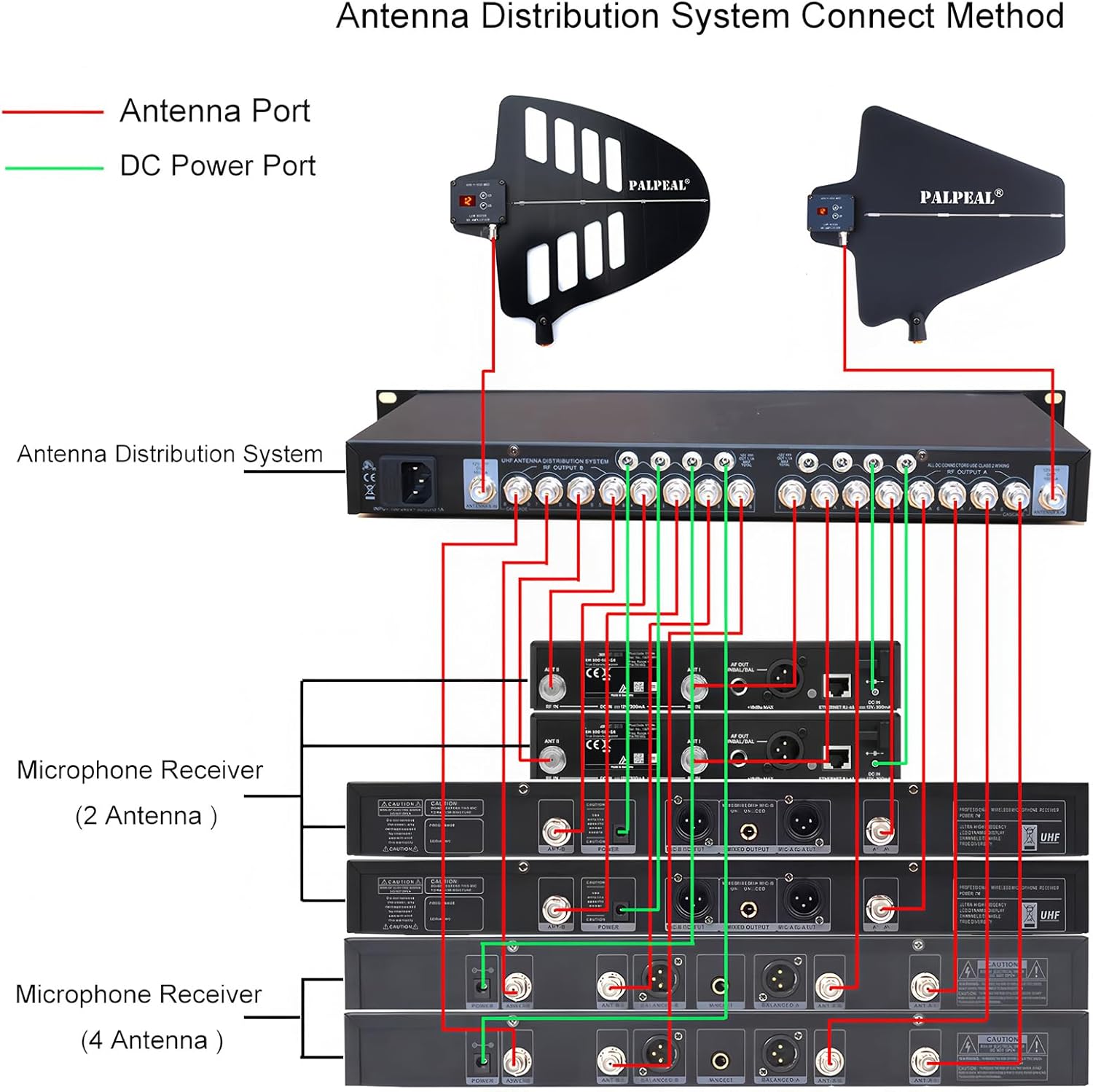

PALPEAL AMP-16CH Antenna Distribution System Connection Method:

Multi Antenna Distribution System Connect Method:
