4K 16x16 HDMI Matrix 16 in 16 Out【Web Control】, 4K@30Hz HDMI Switcher Splitter Support Rack-Mount, EDID, HDCP, IR Remote Control, RS232, LAN Port, GUI

* Q: What is an HDMI Matrix?

A: An HDMI Matrix allows connection of 16 input sources and 16 output displays, it can be used as a Switcher or Splitter.

* Q: How many display modes can be shown?

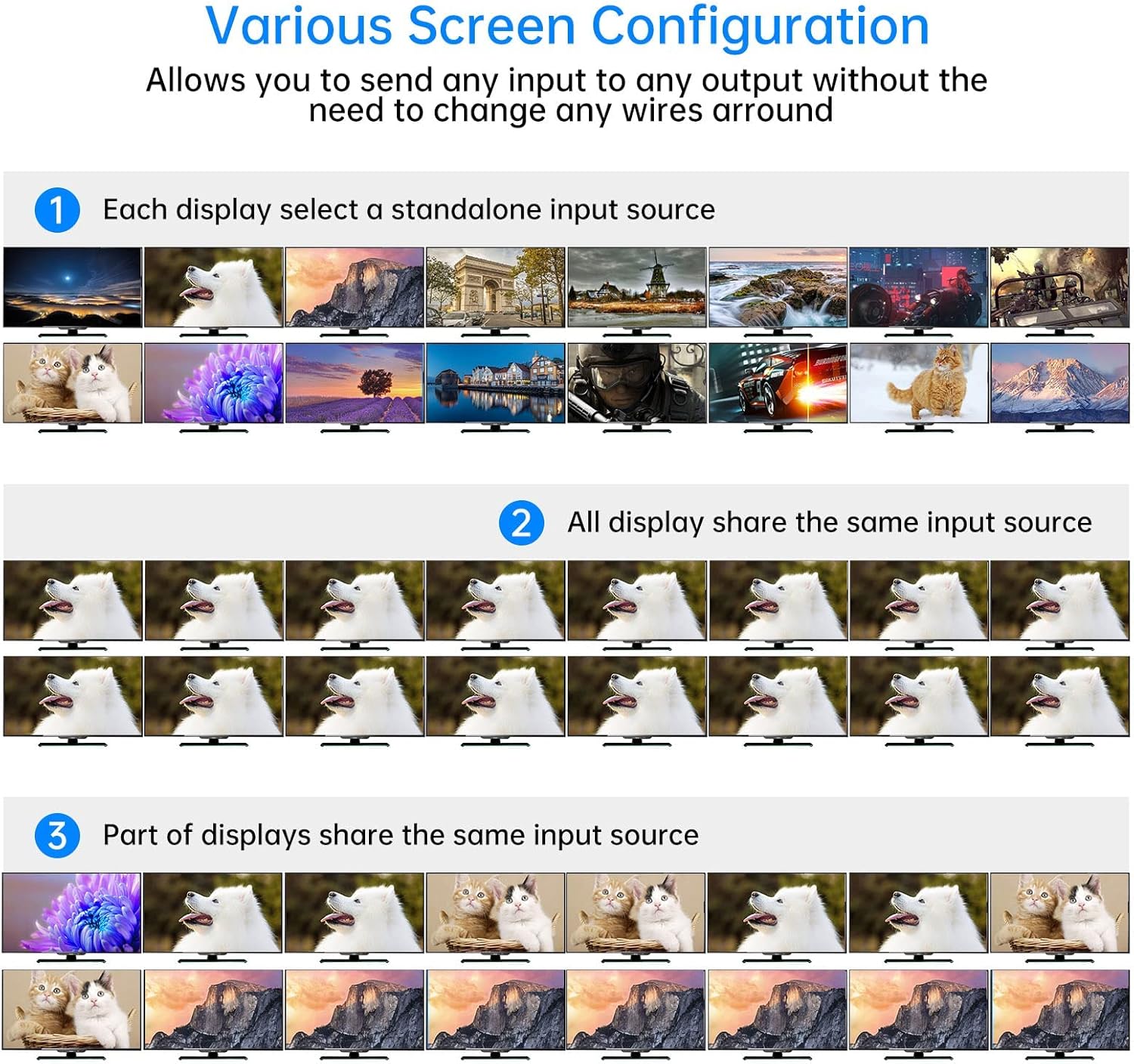

A: It can be used as a switcher or splitter and supports 3 display modes:

1. O-O mode(input1--output1, input2--output2,input3--output3, etc...);

2. O-all mode(input1--output1~16, etc...);

3. Matrix mode(input2--output2 & output4, input2--output1 & output3, etc...)

* Q: How many switching ways can be used?

A: It supports 5 ways of switching: Acrylic crystal button switch, IR Remote switch, Web control, RS232 port, and LAN port control. RS232 port and LAN port control are accessed by software.

* Q: What is Web Control?

A: Yinker HDMI Matrix is upgraded with the WEB GUI module. Customers can control it through the website by typing the exact website address.

* Q: How many functions does it support?

A: Yinker HDMI Matrix supports EDID Adjustment, Scene Store and Recall, Beep active and inactive, Product certificate, Change User Name and etc.

• With the acrylic crystal backlit button, indicates the green light when pressing the button. Showing you the current switching status.

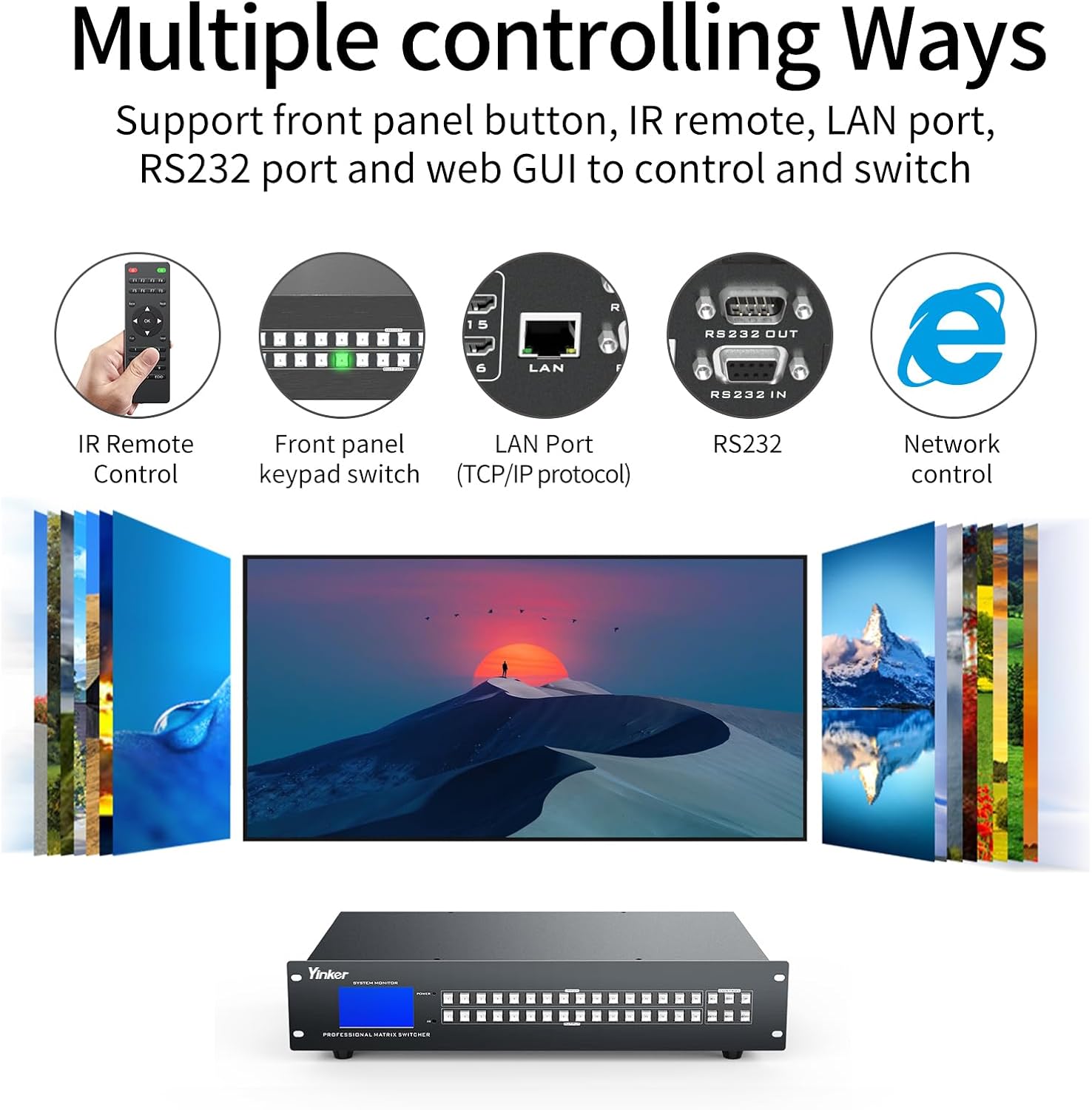

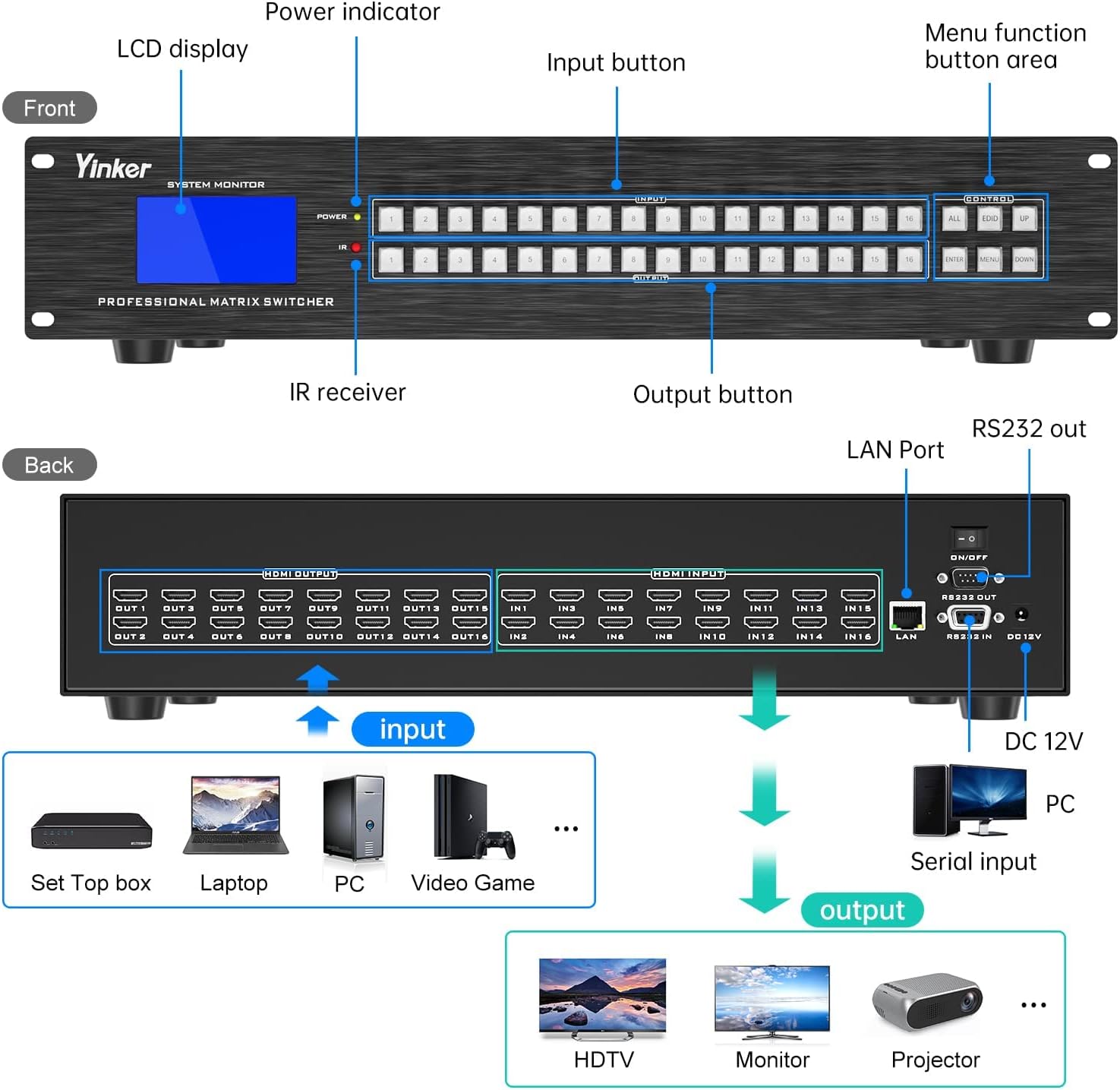

Support 5 ways of switching

• Panel button switching: Press the crystal arcylic button, first press the input source(select one input source at a time), then press the output button, last press "ENTER".
• IR remote switching: Press the button on the remote control
• LAN port control: Download the software inside the CD driver, follow the instruction
• RS232 port control: Download the software inside the CD driver and follow the instruction. Use the protocol inside the user manual and allow switching controlled by any central control system
• WEB control: Open the safari and type in the exact website address, log in the account can access the same switching mode as the software.

Yinker 4K 30Hz HDMI Matrix 16x16

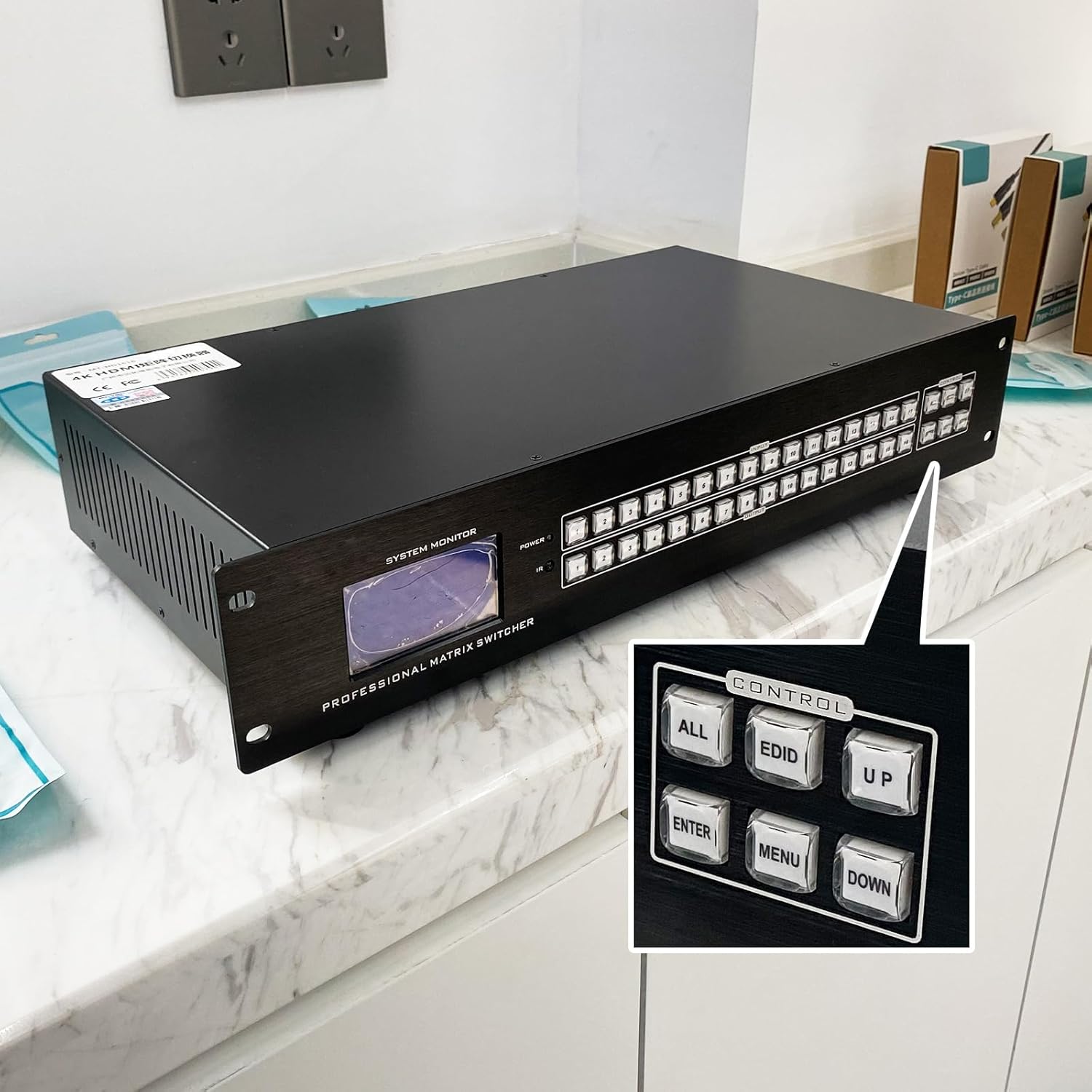

LED Arcylic Crystal Backlit Button
