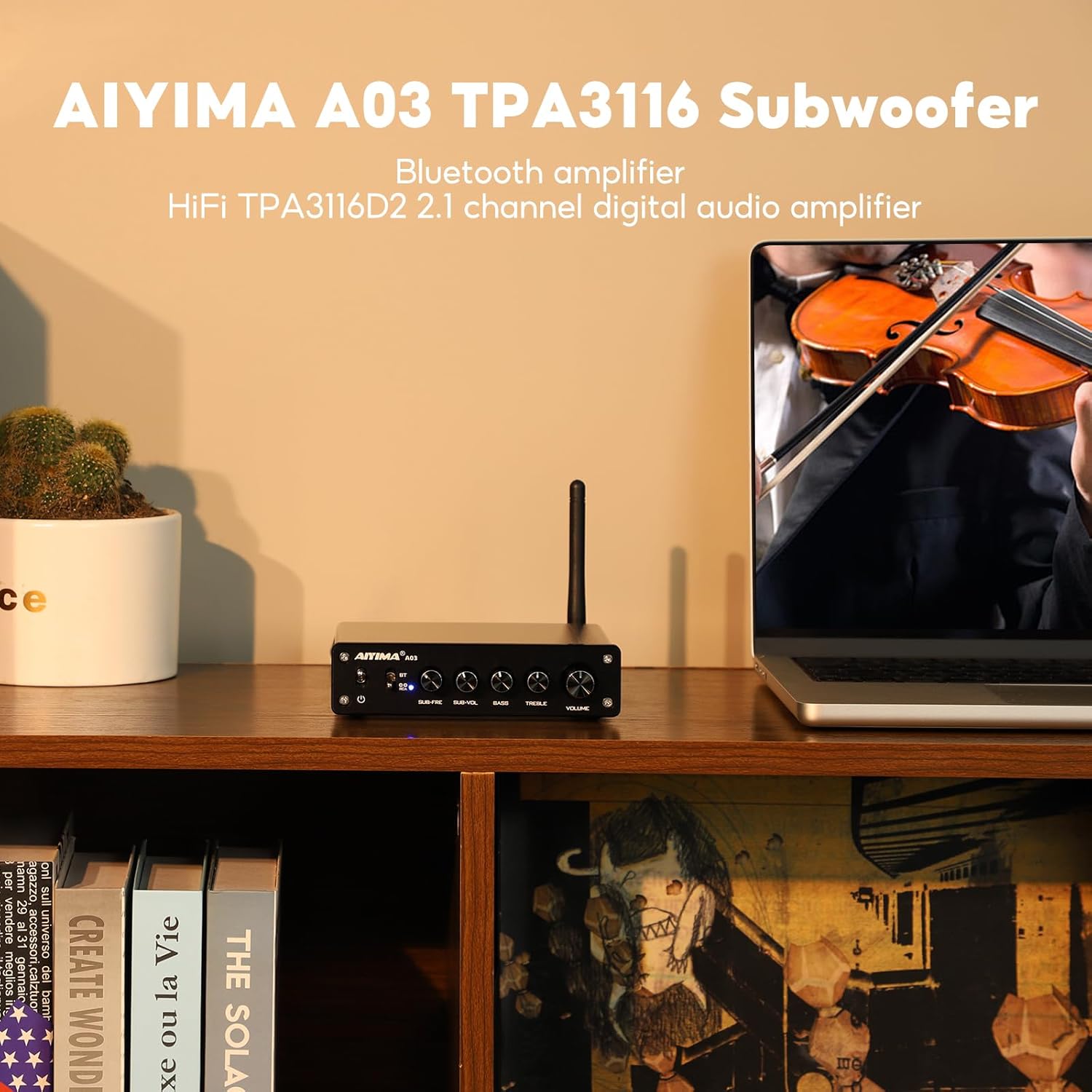

AIYIMA A03 2.1 Channel Class D Amplifier 50W * 2+100W TPA3116 Bluetooth Stereo Amp HiFi Power Amplifier with Power Adapter for Home Outdoor Passive Speakers/Subwoofer/Active sub
AIYIMA A03 2.1 Channel Class D Amplifier 50W * 2+100W TPA3116 Bluetooth Stereo Amp HiFi Power Amplifier with Power Adapter for Home Outdoor Passive Speakers/Subwoofer/Active sub
Support two input, one AUX input, connect wired analog signal input; another one Bluetooth wireless input, can connect with mobile phone, computer and other Bluetooth devices
Support the frequency adjustment of the subwoofer, you can adjust the bass frequency according to your needs
support th
Support the frequency adjustment of the subwoofer, you can adjust the bass frequency according to your needs
support th
Quantity
-
Detail2.1CH Bluetooth 5.0 Power Amplifier
High power output (50W+50W+200W) easily push home speakers
SUB independently adjustable to enhance the shocking feeling of audio/video/game scenes.
Bluetooth 5.0 efficient lossless transmission, fast and stable
Customizable tuning; with TV/projector, enhance the bass effect of the movie/game; flexible switching between cell phones, computers, vinyl phonographs and other audio sources of the scene
With DC24V4.5A power supply, meets most of Class D speakers

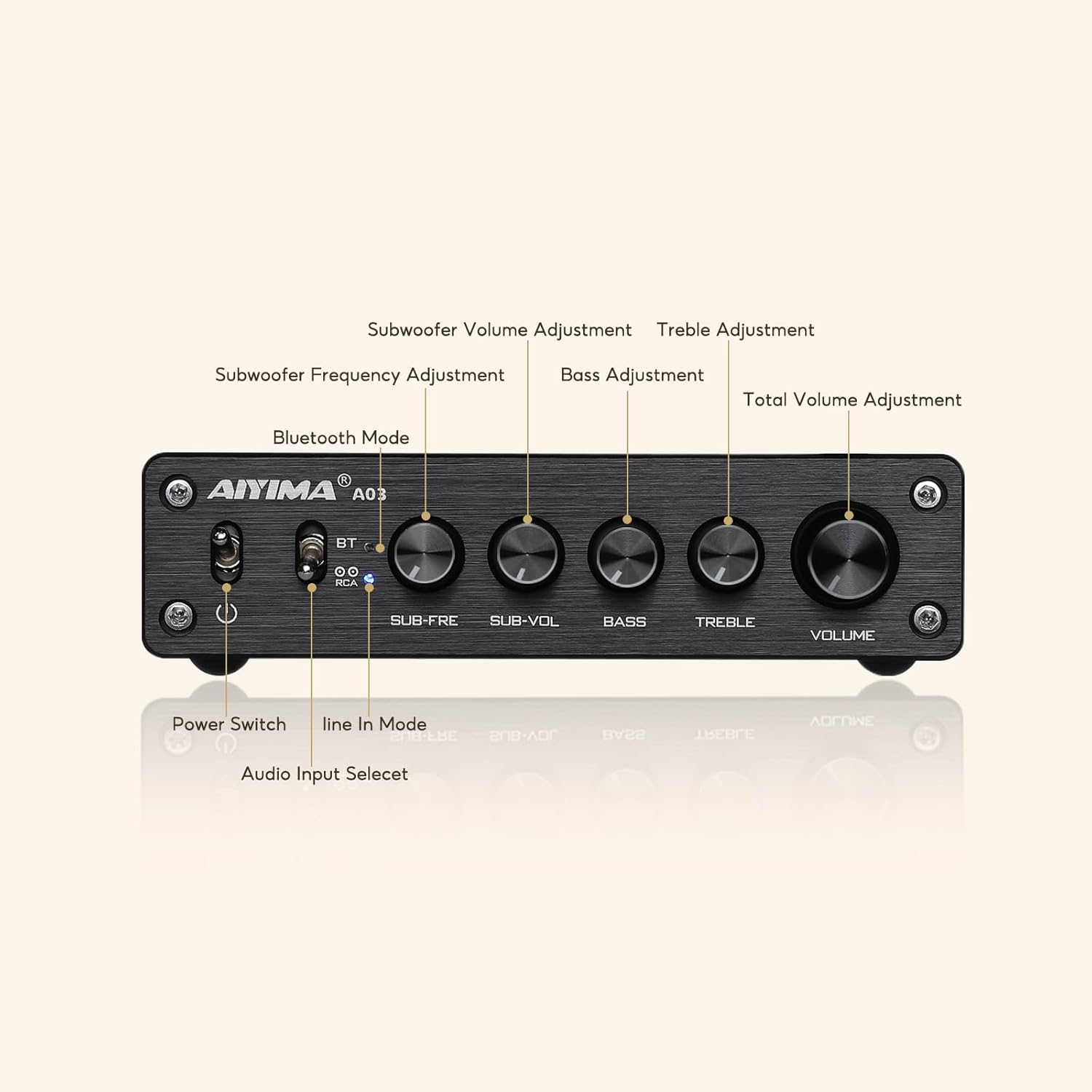

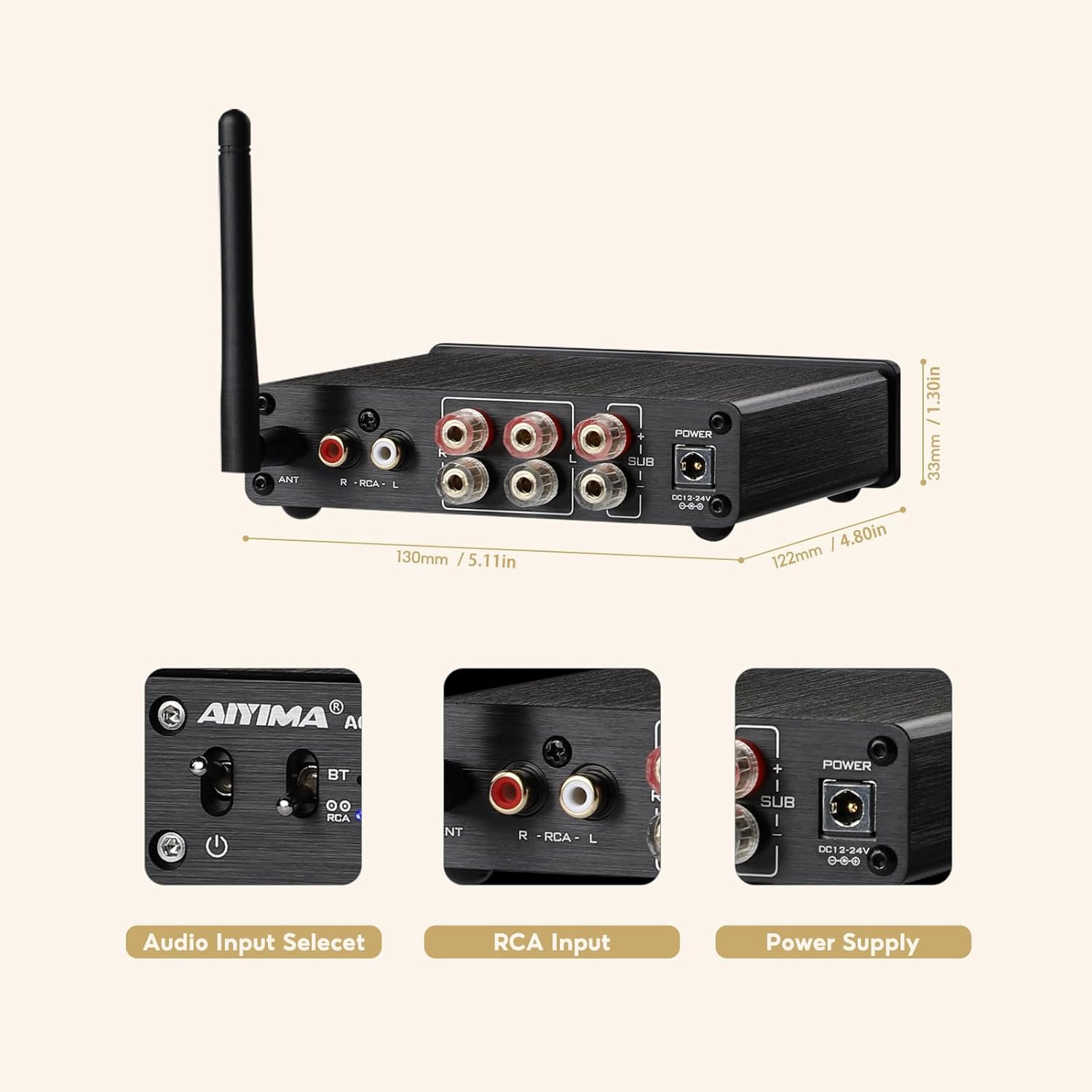

1Desktop Amplifier2Bluetooth Amplifier32.1 Bluetooth Amplifier ChipsTPA3116D2 (2pcs)+ NE5532 + QCC3003Frequency response20Hz-20kHz(±3dB)Input Mode Bluetooth 5.0/RCA Audio inputOutput Mode RCA(Passive Speaker) /Subwoofer Output(Passive Subwoofer)Output impedance 4-8ΩMax Output Power 50W+50W+100WWorking voltage DC12-24VPower AdapterDC 24VTHD≤ 0.1%SNR ≥ 82dBProduct Weight 700 g/1.54 IbProduct Size Length * width * height (122 * 130 * 33mm/4.8*5.12*1.3 in) 1Front panel2Rear panel3Power output meterAmplifier With Subwoofer Output & Bass / Treble control
Texas Instruments TPA3116D2 chip
-
