AIYIMA A3001 Mini Mono Amp 300W Subwoofer Amplifier TPA3255 Class D Amp with Full-Frequency & Sub Bass Home Audio Speaker amp+ DC36V 6A Power Adapter
AIYIMA A3001 Mini Mono Amp 300W Subwoofer Amplifier TPA3255 Class D Amp with Full-Frequency & Sub Bass Home Audio Speaker amp+ DC36V 6A Power Adapter
❶ Adopt The Instruments TPA3255D2 chip, NE5532 op-amp. Very Quiet, Runs Extremely Cool,Easy to set up,Ship With 36V 6A power adapter,so our AIYIMA A3001 Subwoofer Amplifier can driver most home passive speakers and powered subwoofers
❷ This A3001 TPA3255 HiFi Mono class D amplifier,the Max output
❷ This A3001 TPA3255 HiFi Mono class D amplifier,the Max output
Quantity
-
DetailPower amplifier chipTPA3255D2Tone chipNE5532Full frequency response20Hz-20kHz (±3dB)Speaker matching impedance4-8ΩRMS Max Power OutputRMS 300watt @ 2ohm load, RMS 150watt @ 4ohm load, RMS 120watt @ 8ohm loadDistortion0.03% when outputting 1WPower inputDC24-48VWorking voltageAC 110V - 240VSignal to noise ratio≥106dBInput sensitivity0.775VBass cutoff FRE adjust range40-300HzBass attenuation slope-12dB Slope 1Front Panel2Back Panel3Lateral side

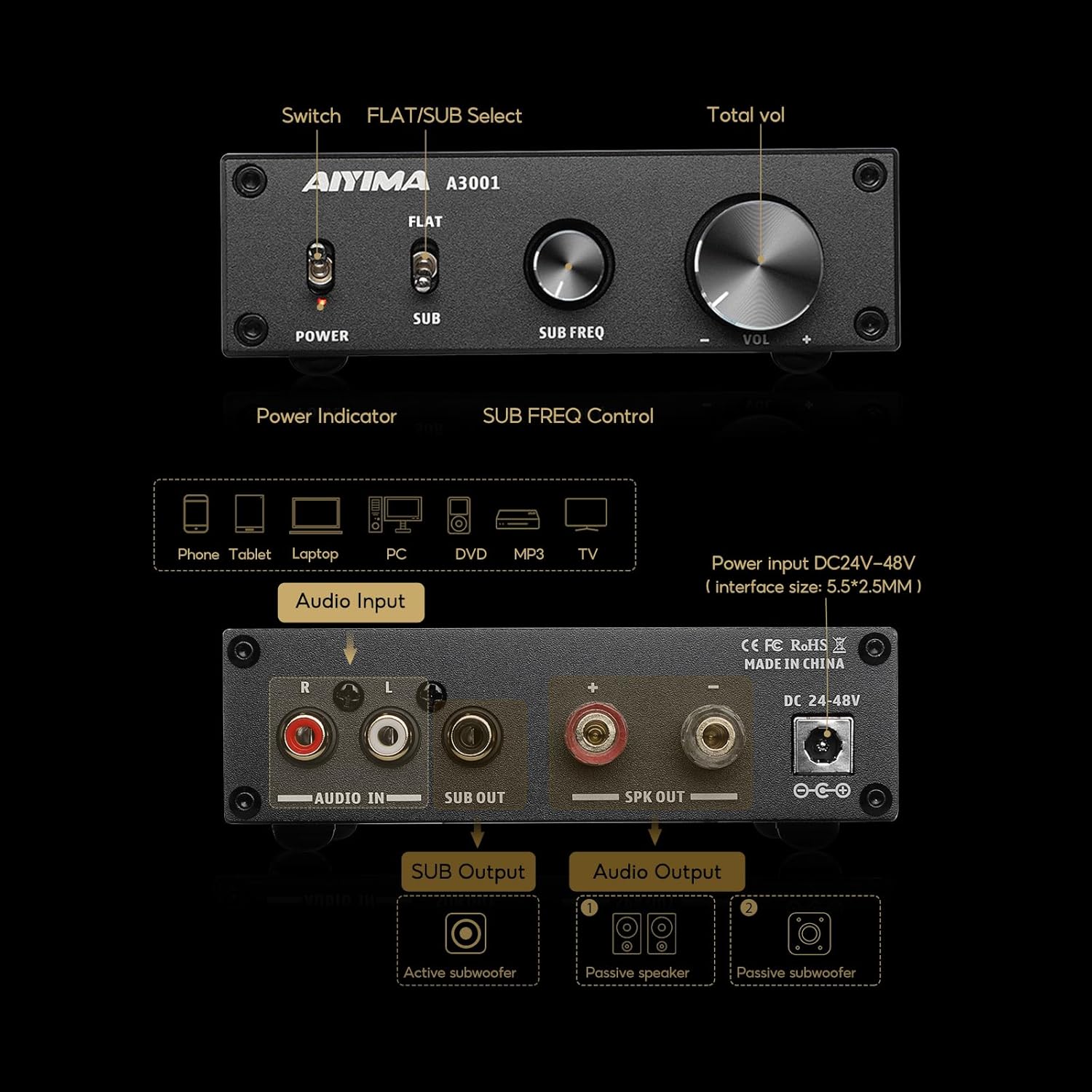

Switch to FLAT, It's a full-range mono amplifier
Switch to SUB, It's a subwoofer amplifier
Bass up frequency adjustment knob : knob is only available in bass mode
Low-pass output : connected to the active subwoofer
The TPA3255 Amp chip provides up to 300 watts of power output, delivering 150 watts RMS to a 4-ohm load or 120 watts RMS to an 8-ohm load
AIYIMA A3001 Package with DC32V 5A power supply,Provides efficient and stable power output to satisfy most home audio devices
1Full Range Mono Amplifier2Subwoofer for Stereo Amp3Desktop AmplifierUsing TPA3255D2 amp chip
PBTL / SUB Switchable modes
Subwoofer frequency adjustment
Passive speaker Output
DC 24-48V Power input
-
