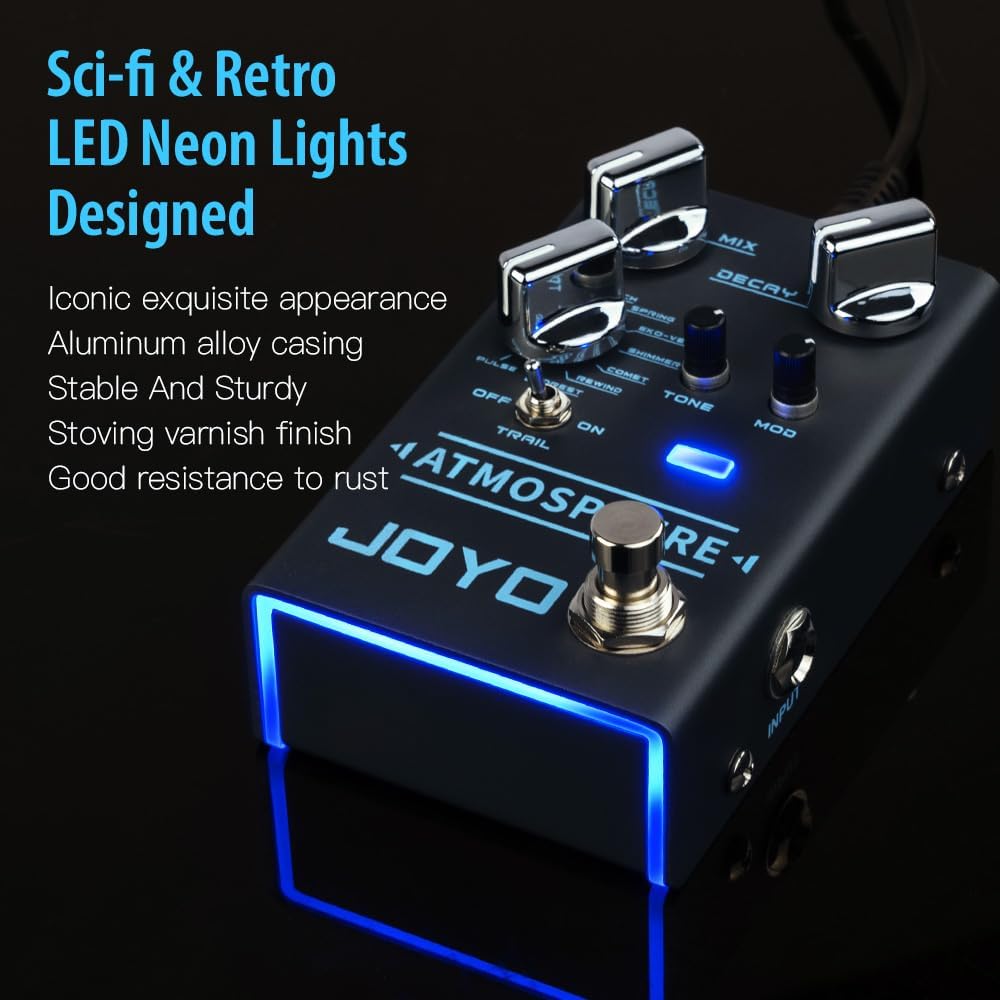

JOYO Reverb Pedal 9 Digital Reverb Types with Modulation and Trail Function for Electric Guitar Effect (Atmosphere R-14)
It has modulation effects depth control dedicated for modulation effects. The "TRAIL" function swi
-
Detail1TRAIL function switch2MOD depth control3Delay + Mix Knobs4LED Light Control SwitchInput Impedance6.35mm Mono audio jack 2.2MΩ Output Impedance6.35mm Mono audio jack 100ΩSignal Bypass TypeBypassRated Current Consumption140mA. Warning: Units cannot operate with power supplies below 140mA current.Working VoltageDC 9V(center minus). Warning: The 12V voltage will burn the pedal during prolonged use.Power SupplyOnly supports external power supply, with no battery compartmentDimensions109(L)X 67(W)X 48(H) mmWeight248gPackage included1 x JOYO R-14 Atmosphere Digital Reverb Effect Pedal (mono effect unit), 1 x User's Manual. (Power Supply Adapter is NOT included.)
What should I do if my pedal isn't functioning properly?
Firstly, ensure your adapter meets DC 9V 140mA (center-negative) specifications. Using 12V or non-compliant adapters may damage the circuitry.Confirm the power cable is fully inserted into the effector's interface.
Why does the volume drop when using the pedal?
Volume attenuation may occur with extreme Decay/Mix knob settings—a characteristic of digital reverb effects. For optimal performance, keep both parameters below 70% and avoid simultaneous maximum settings.
How to reduce noise during operation?
Always use the dedicated power supply included with your effector or a reputable brand adapter; Test in different outlets if hum persists；Replace damaged/oxidized audio cables
More Tips for Best Performance
Always fully insert audio/power cables; Replace faulty/poor-contact cables; Activate Bypass mode. If volume recovers, the issue is parameter-related (not hardware); Use mono cables only and ensure plugs are fully inserted to avoid signal loss.
JOYO Reverb Pedal

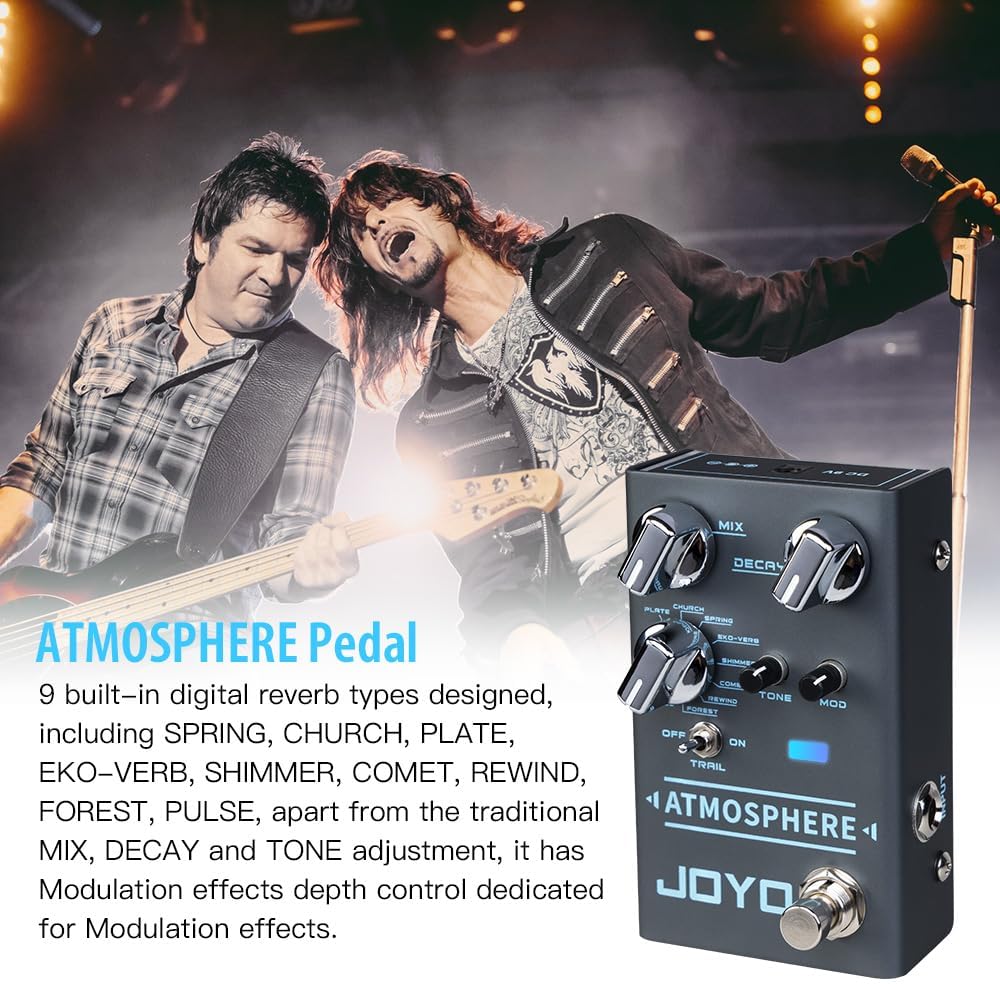

R-14 ATMOSPHERE Features 9 Built-in Digital Reverb Types
9 Built-in Digital Reverb Types
Specifications
What should I do if my pedal isn't functioning properly?
Why does the volume drop when using the pedal?
How to reduce noise during operation?
More Tips for Best Performance
-
