TASCAM’s renowned HDIA (High-Definition Instrumentation Architecture) preamps offer ultra-low noise & transparent sound, with top-tier specs: –127 dBu EIN, 0.0007% THD, 116 dB dynamic range, and 119 dB crosstalk attenuation. Each channel includes a single-control analog compressor with true bypass.

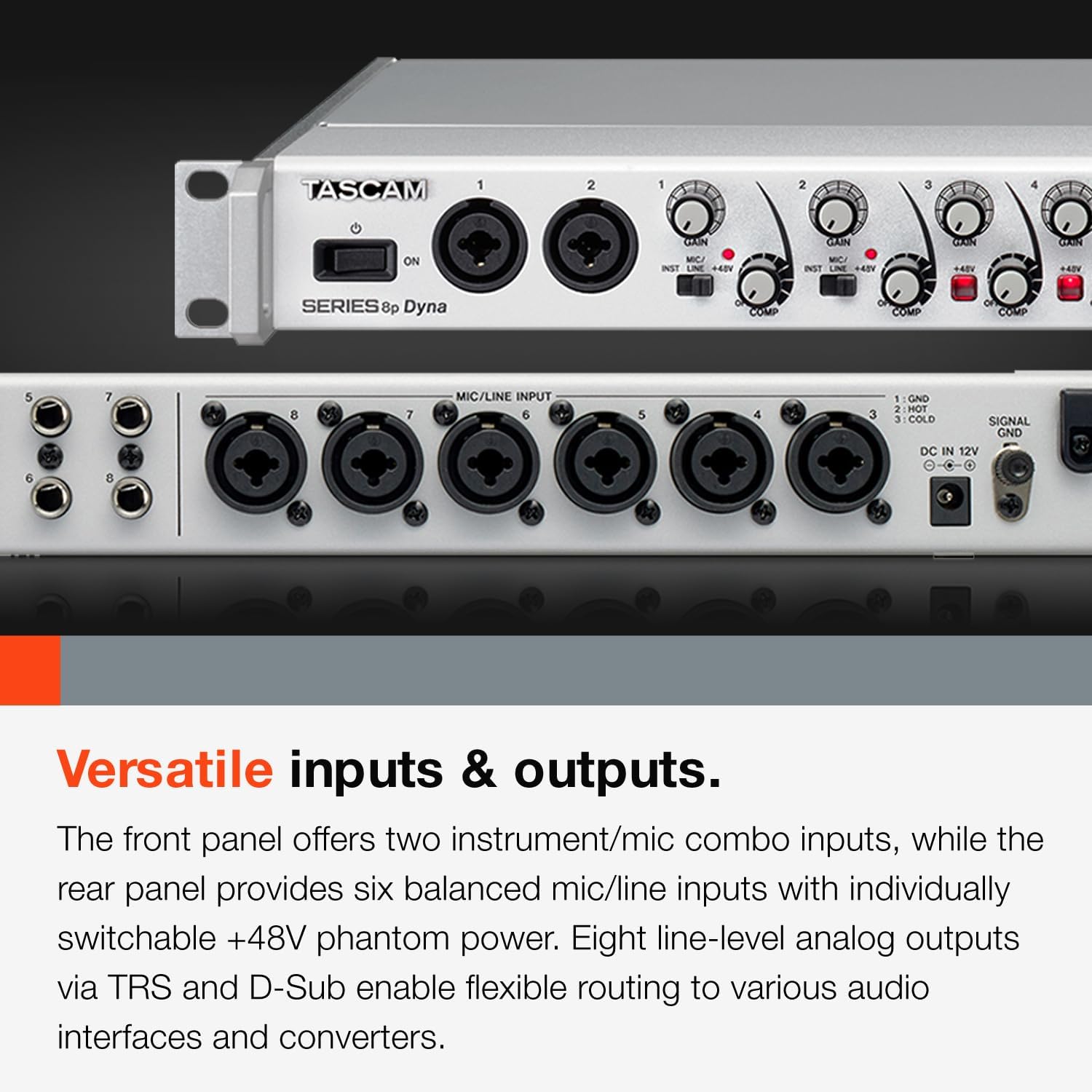

The front panel offers two instrument/mic combo inputs, while the rear panel provides six balanced mic/line inputs with individually switchable +48V phantom power. Eight line-level analog outputs via TRS and D-Sub enable flexible routing to various audio interfaces and converters.

Dual S/MUX optical ports can output all eight channels up to a sampling rate of 96 kHz: 8 outputs at 44.1/48 kHz, 88.2/96 kHz and 4 outputs at 176.4/192 kHz. This makes it an ideal expansion unit for S/MUX-compatible audio interfaces, increasing system capabilities effortlessly.

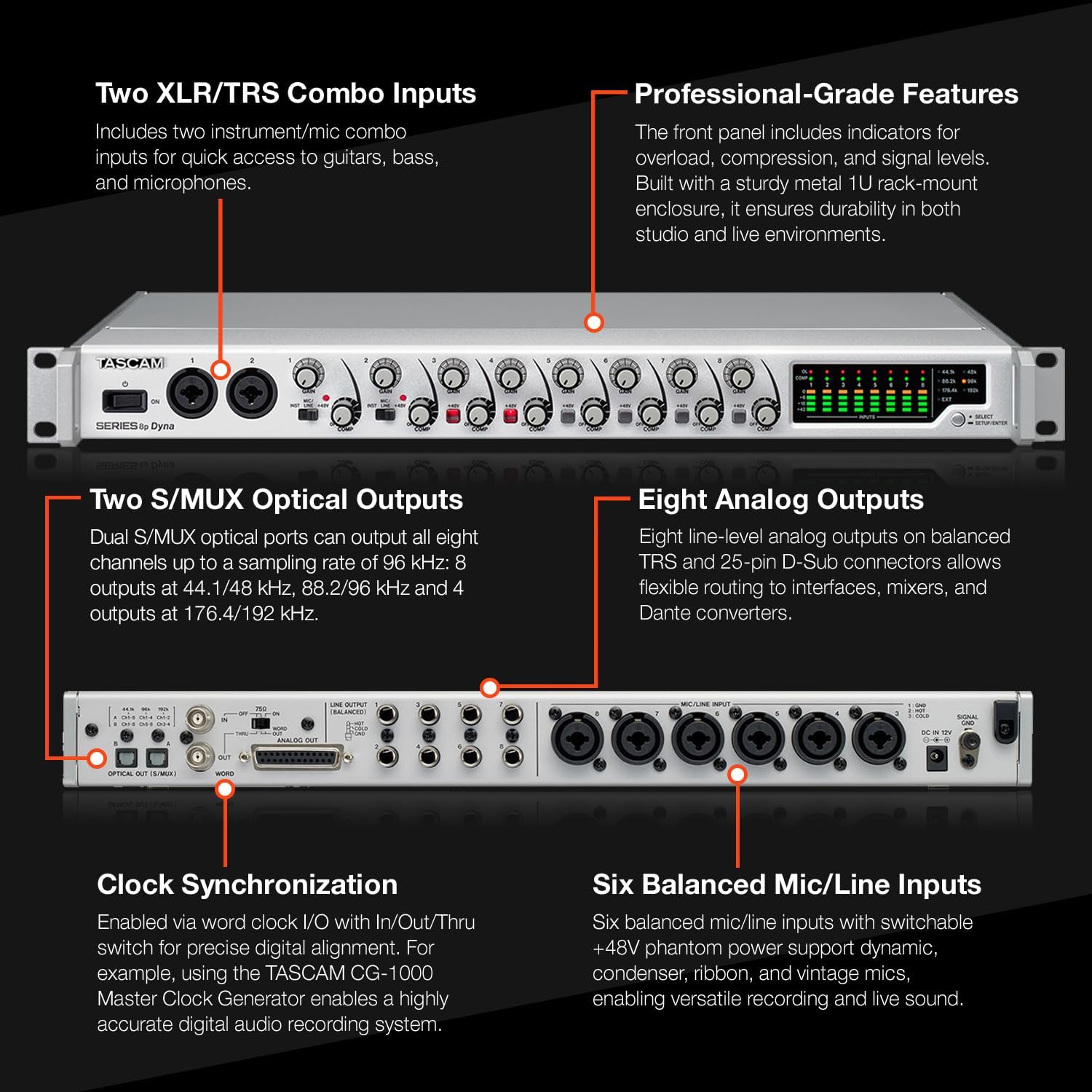

Two XLR/TRS Combo Inputs

Includes two instrument/mic combo inputs for easy access to guitars, bass, and microphones.

Professional-Grade Features

Built with a sturdy metal 1U rack-mount enclosure, it ensures durability in both studio and live environments. Front-panel indicators provide overload, compression, and level monitoring.

Eight Analog Outputs

Eight line-level analog outputs on balanced TRS and 25-pin D-Sub connectors allow flexible routing to interfaces, mixers, and Dante converters.

Six Balanced Mic/Line Inputs

Six balanced mic/line inputs with switchable +48V phantom power support dynamic, condenser, ribbon, and vintage mics, enabling versatile recording and live sound.

Two S/MUX Optical Outputs

Dual S/MUX optical ports can output all eight channels up to a sampling rate of 96 kHz: 8 outputs at 44.1/48 kHz, 88.2/96 kHz and 4 outputs at 176.4/192 kHz.

Clock Synchronization

Enabled via word clock I/O with In/Out/Thru switch for precise digital alignment. For example, using the TASCAM CG-1000 Master Clock Generator enables a highly accurate digital audio recording system.

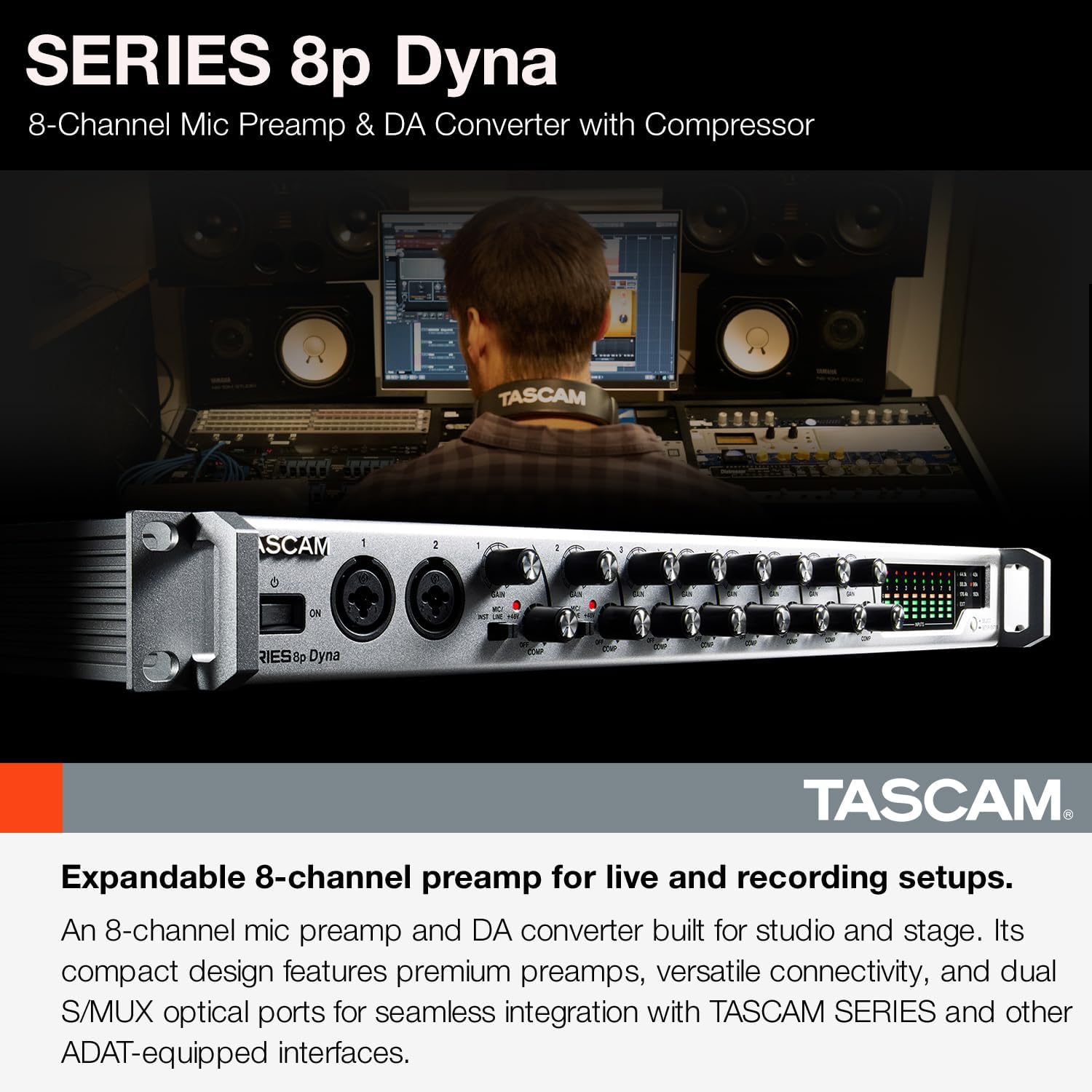

TASCAM 8p Dyna Microphone Preamp for Recording

Superior Audio Performance

Versatile Inputs & Outputs

Seamless System Expansion
