Ultra Low Noise 2x 5V 1A + 15V 1A

This regular linear power supply Topping P50 offers excellent performance and allows a HiFi system to be powered properly and thus promotes the sound reproduction quality of the latter.Particularly practical, the P50 has 2 USB-A outputs of 5V 1A and 1 DC 5.5/2.1mm jack output of 15V 1A.

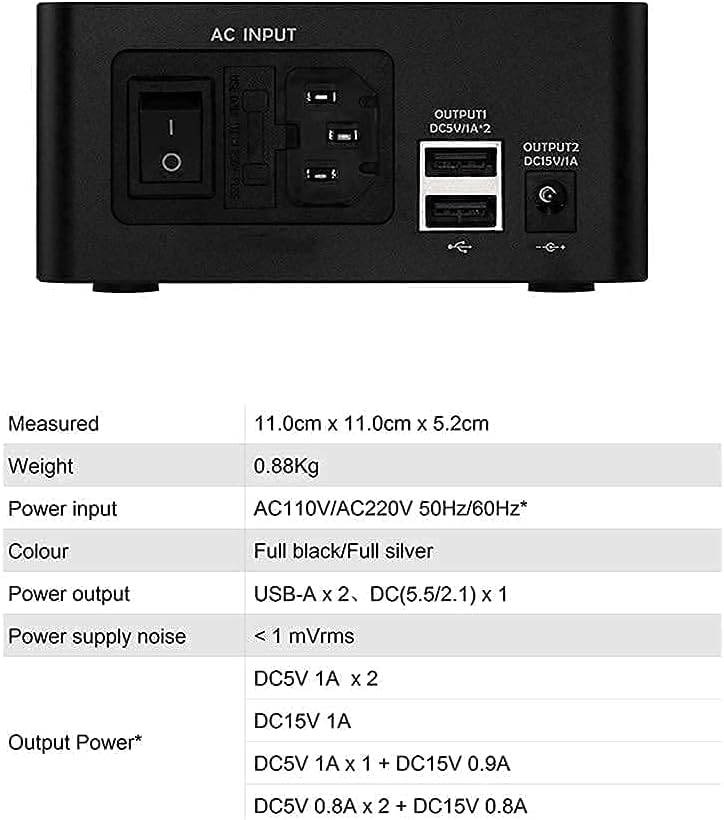

Power input: AC110V/AC220V*

Power output1: USB-A x2

Power output2: DC(5.5/2.1)

Power supply noise <1 mVrms

Output Power* (1) DC5V 1A×2(2) DC15V 1A(3) DC5V 1A×1 + DC15V 0.9A(4) DC5V 0.8A×2 + DC15V 0.8A

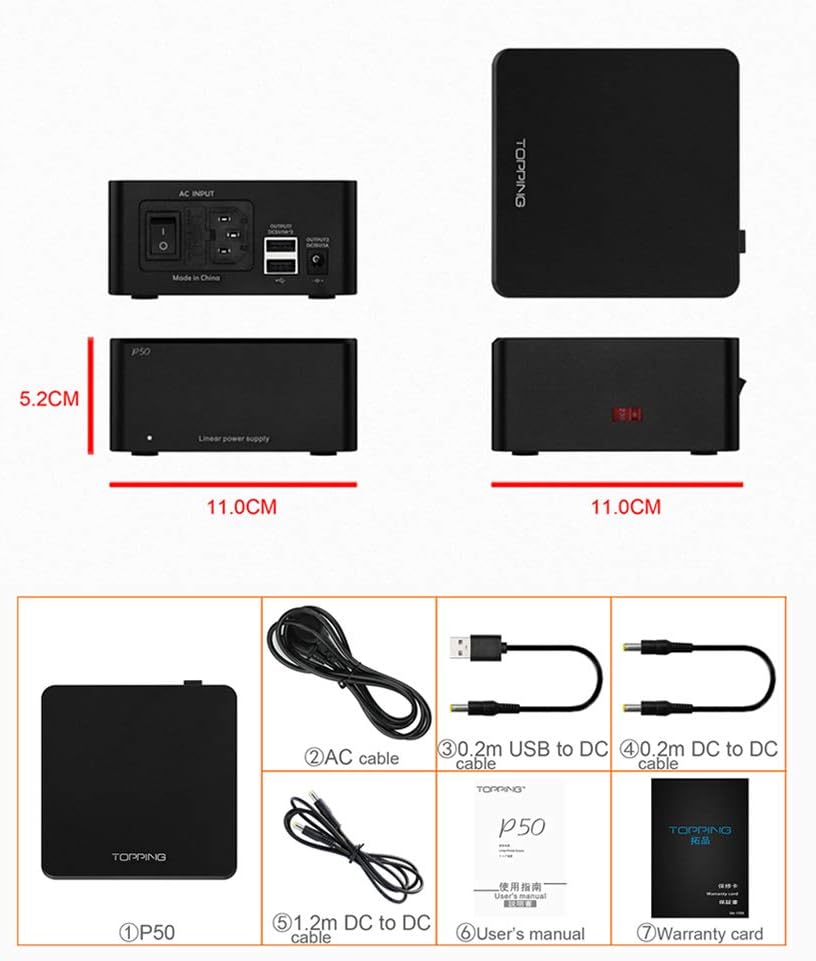

1. P50

2. AC cable

3. 0.2m USB to DC cable

4. 0.2m DC to DC cable;5. 1.2m DC to DC cable

6. User's manual;7. Quanlity card

• Note:

1. Please choose the correct voltage before using;the wrong voltage setting will damage your P50.

2. For reducing the noise and get the best output quality,please use three-phase power cable which is including the ground terminal and ensure the ground is reliable connected.

• Precautions for daily use

1. Ensure the output jack could not short circuit or connect to ground.

2. You must not keep the power supply in a hot,humid environment or make it subject to strong shocks. 3. Opening the case instantly voids the maintenance! 4. Indoor use only.

*Warning: Please select to your local voltage. The shell will be quite hot at high power output, this is normal.

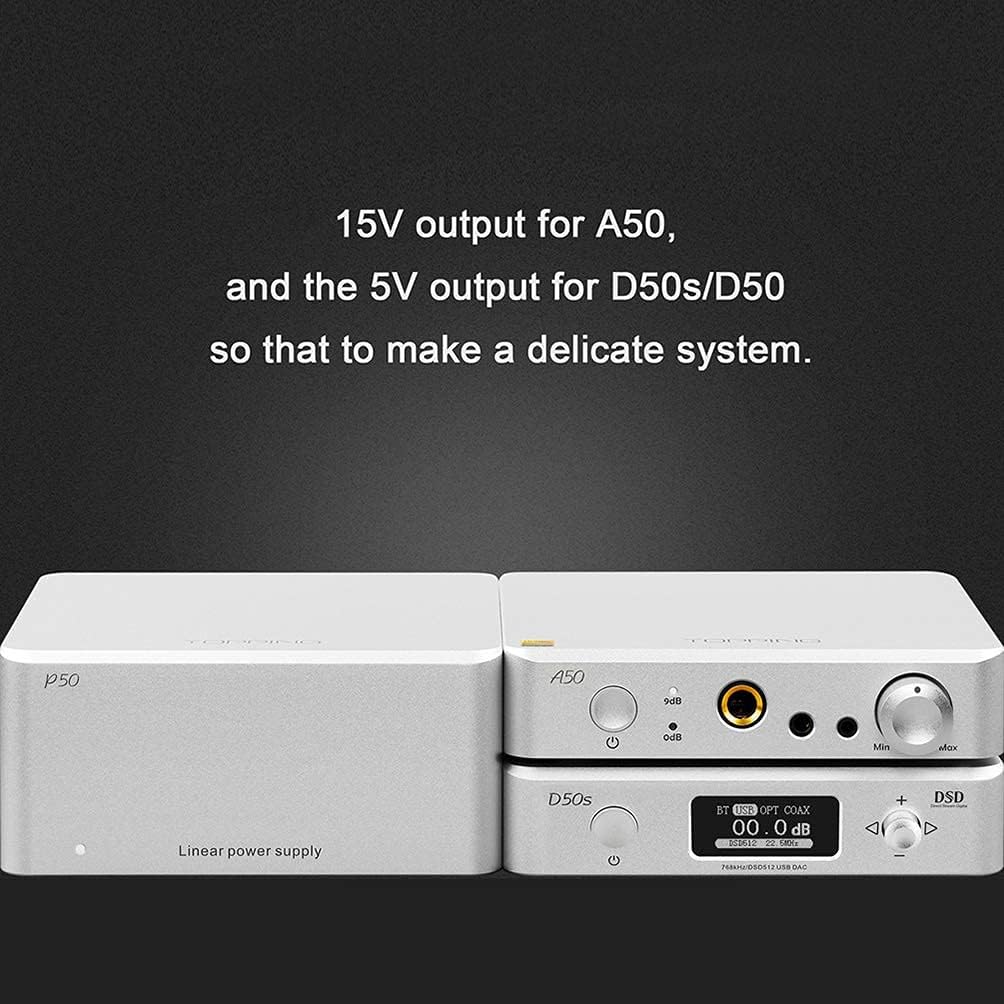

The P50 can be associated with a wide range of devices, with output voltages of 15V and 5V being very common for HiFi devices. The power supply is of course an ideal choice to power the brand's other products, such as the E50, DX3 Pro+, the D50s, or the D50s and the A50 at the same time.

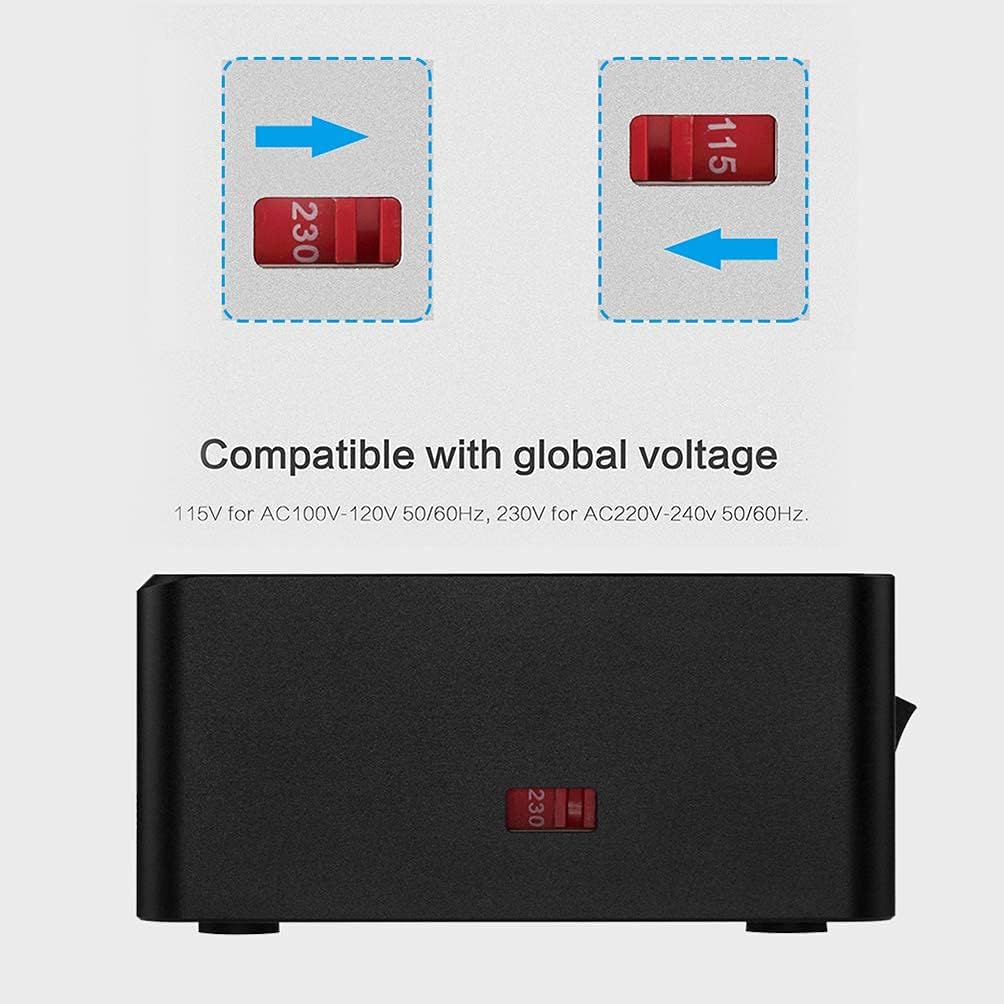

115 V for AC100V-120V50/60Hz,

230 V for AC220V-240V50/60Hz.

All the components of this P50 power supply are integrated in a beautiful and robust Aluminium housing. It is CNC machined in a single piece of metal for better mechanical performance and reduced interference.

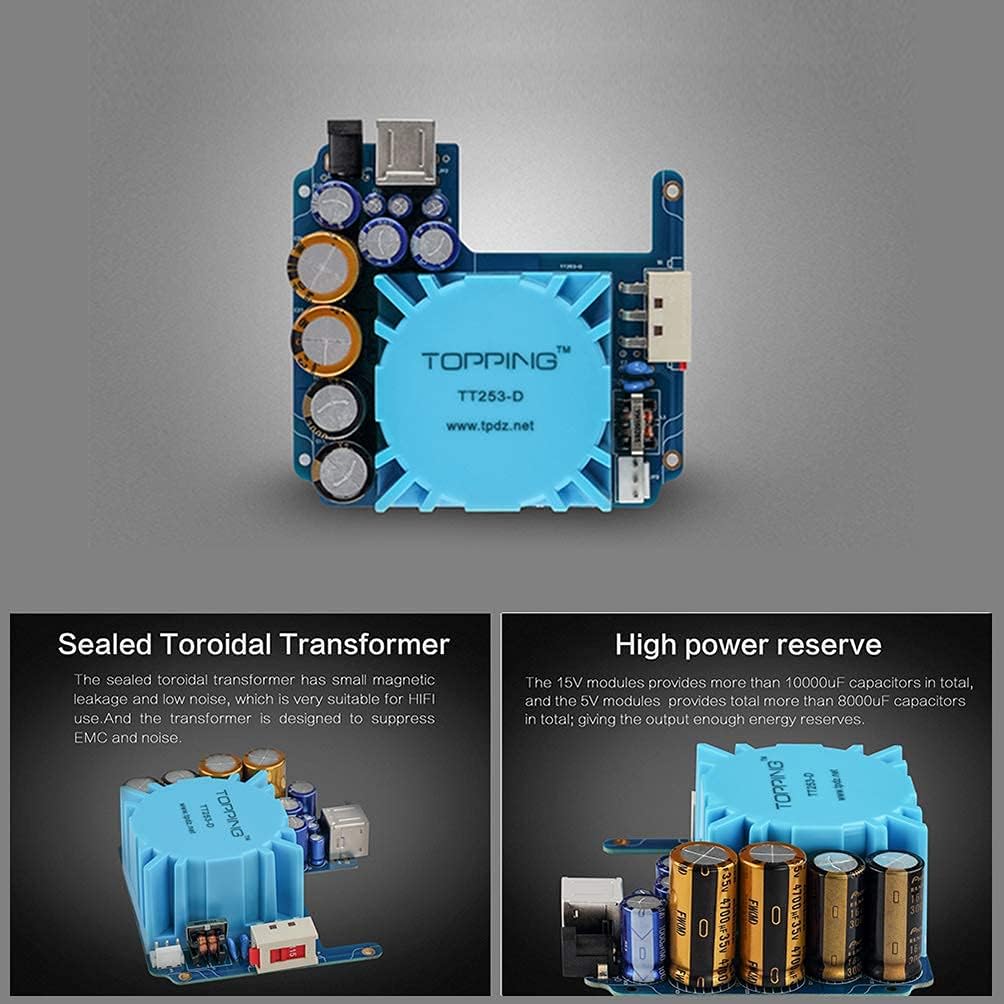

The sealed toroidal transformer has small magnetic leakage and low noise,which is very suitable for HIFI use.

The 15V power supply circuit integrates a series of capacitors for a total capacity of not less than 10000µF and the 5V rails have 8000µF.

3 TPS7A4700. These chips are capable of high accuracy and therefore perfectly suited for HiFi use. Excellent choice for analog circuits.

How did we get our start?

TOPPING P50

Attribute

Package content

TOPPING P50

Effective associations

Switchable input voltage

Aluminium case

Sealed toroidal transformer

Large energy reserve

Ultra low noise

Cerifications
