POWER PROBE IV Master Combo Kit - Red (PPKIT04) Includes Power Probe IV with PPECT3000 and Accessories

At Power Probe, we believe things should be simple. That’s why we design tools to make complex automotive technology accessible for the modern auto technician. As automotive technology continues to evolve, Power Probe will provide innovative Technology, Energy, and Knowledge solutions for technicians and consumers alike.

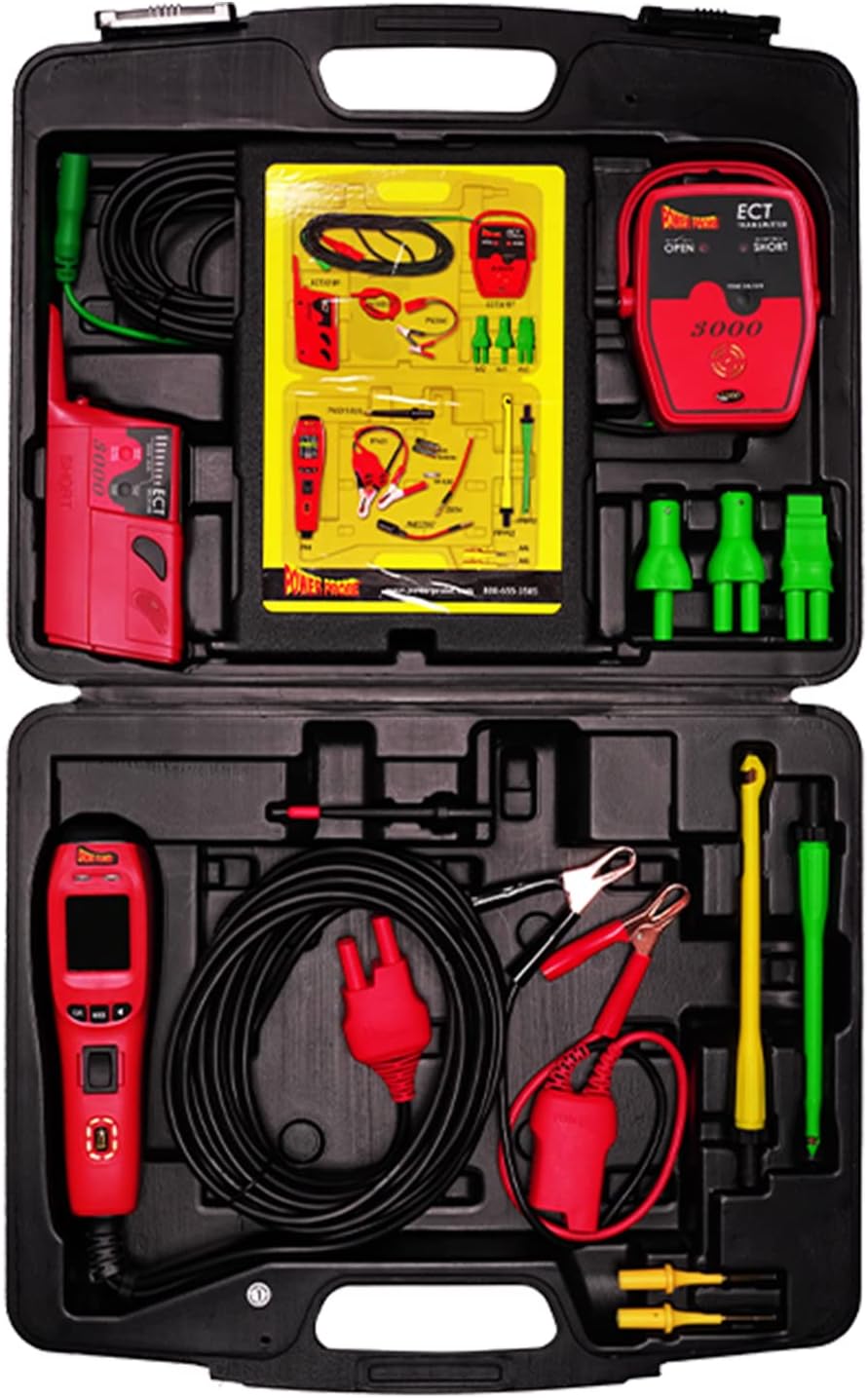

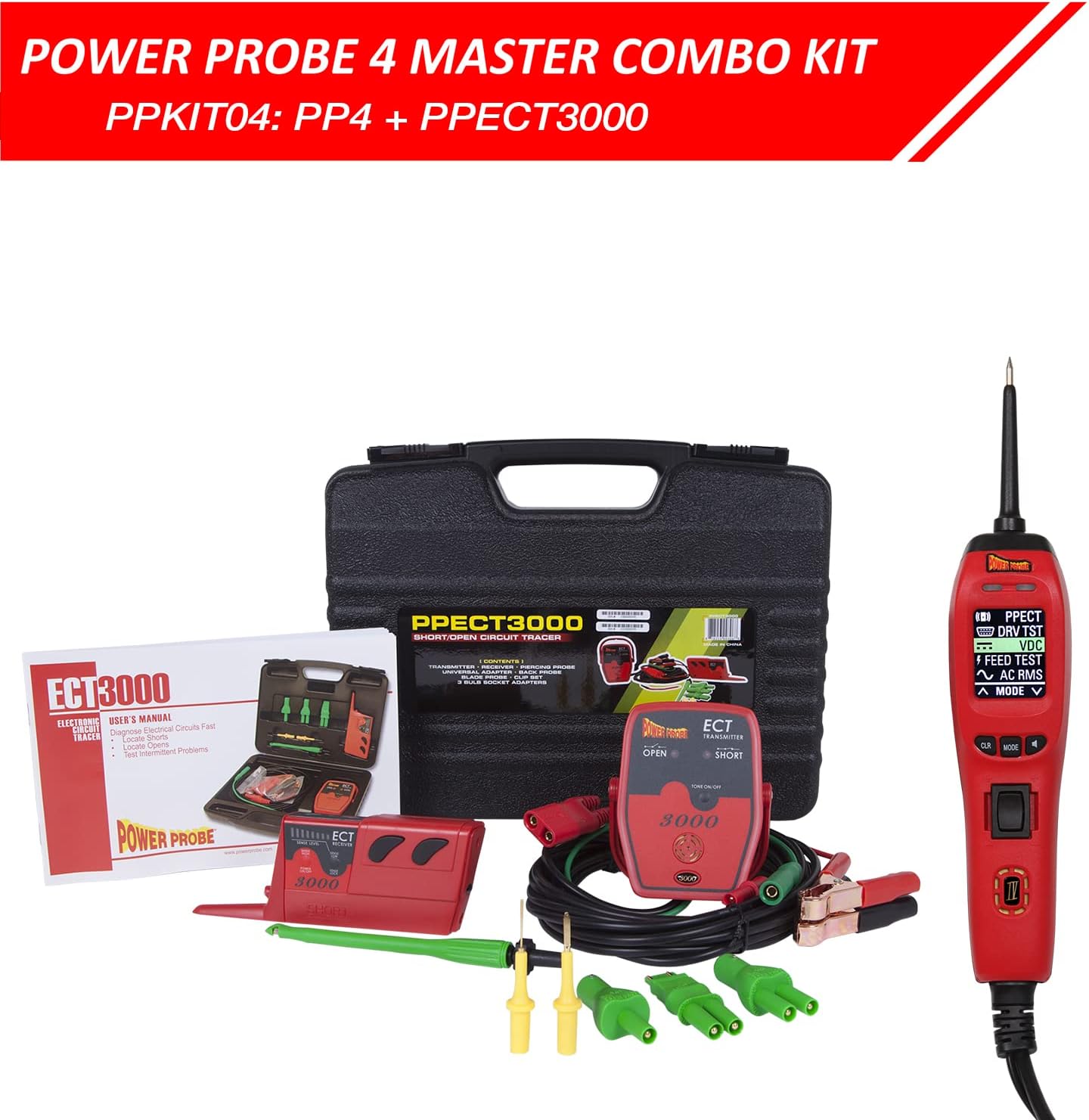

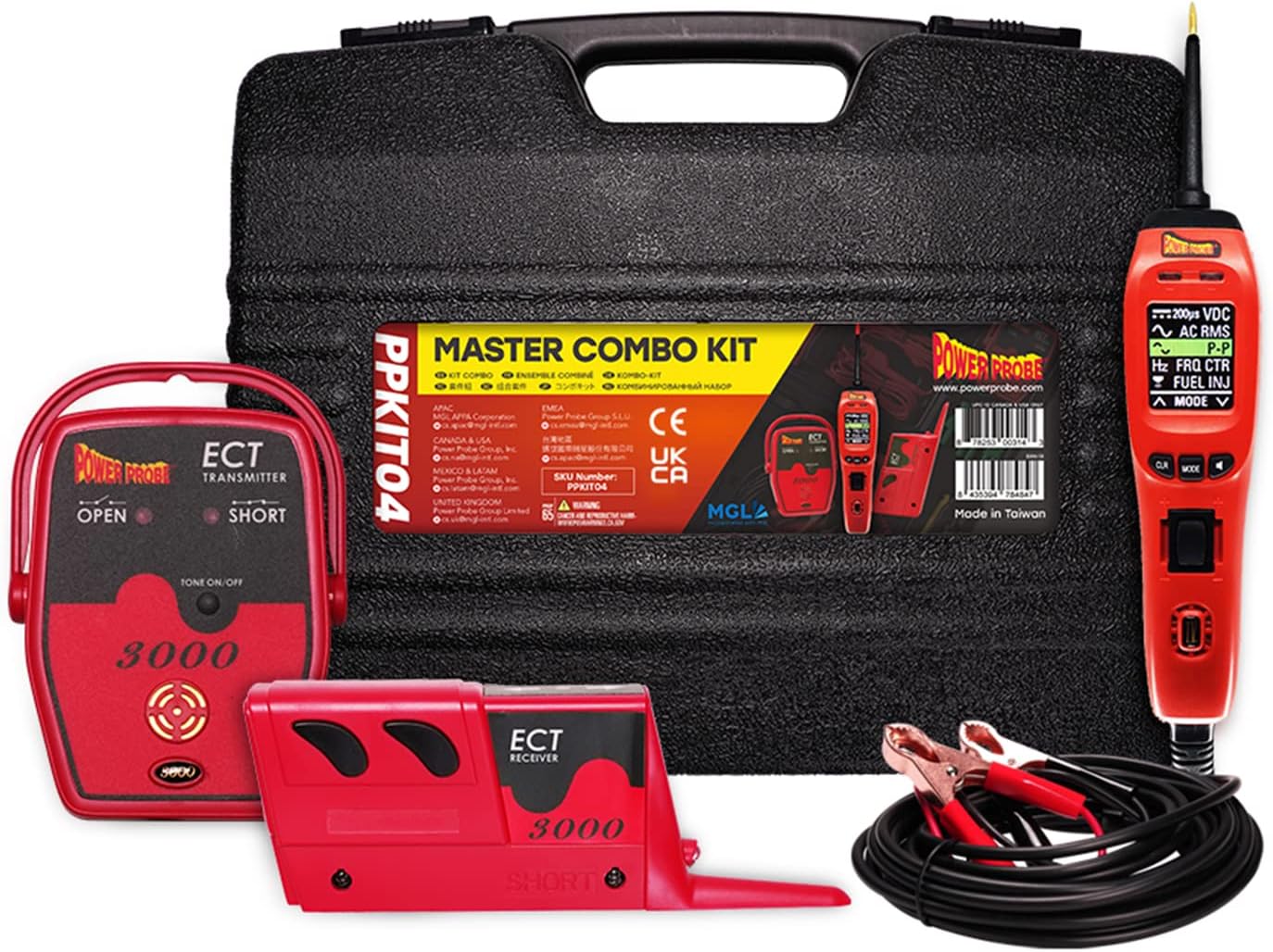

Power Probe 4 Master Combo Kit includes:

• Power Probe 4
• ECT3000 Transmitter/ECT3000 Receiver
• Power Probe Tip
• 3 Light Bulb Adapters
• Universal Adapter
• Alligator Clip Adapter
• Blade Probe Adapter
• Back Probe Adapter
• Small Piercing Probe/Large Piering Probe
• Battery Clipset
• Battery Clipset for the PP4
• 3ft Lead
• Self-resetting Circuit Breaker
• AAA Batteries

AC RMS mode is for measuring AC (alternating current) voltages and can be used on any AC voltage or pulsed waveform signal where an RMS averaged voltage measurement is required.

Contact the probe tip to the circuit and it will display an RMS averaged AC voltage reading in the main display area while also displaying RMS Min/Max AC voltages on the bottom line.

Powering up and activating circuits with the rocker switch can not be performed in this mode.

Pressing the “CLR” button will reset the Min/Max read-ings.

AC RMS Voltage is used in the same manner as a standard DVOM would be used to measure the averaged AC volt-age in any circuit that produces AC voltage. This can be used for, but not limited to, tests such as checking alternator diode ripple, abs sensors, crank sensors, etc.

The Power Probe IV can safely measure up to 70 VAC.

• Working on a classic car restoration this is a great way to test the vehicle's wiring before finalizing the rebuild.
• Determine a clear result of where the fault or electrical problem is located.

Power Probe 4

Testing and Measuring Operations AC Voltage Measurement (RMS)

ECT3000

Cable harness tests
